allen wrench
allen wrench
Fixed door
hinge panel
Fixed door panel

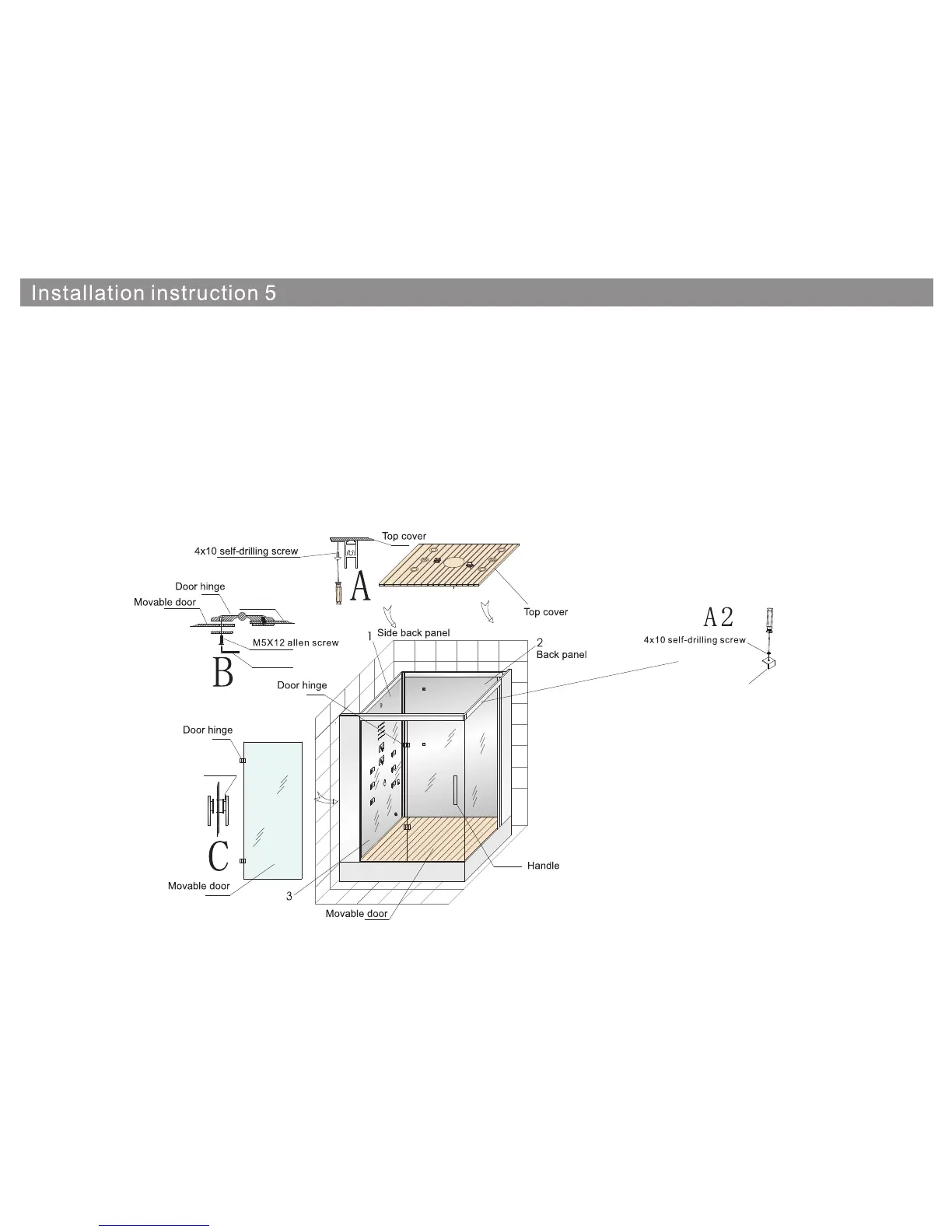

Install the moveable Door:
1. Put the top cover on the shower, and fasten the top cover to the No.1 and No.2 Panels with 4x10mm Screws and stainless steel brackets.
Illustrated in Drawing A. Then fasten the top cover to the top frame No.3, No.4 and No.5 with 4x10mm screws and stainless steel brackets
Illustrated in Drawing A2.
2. Put the moveable door on the shower base and have one person hold it while the other person attaches the door hinges to the No.3 panel.
Illustrated in Drawing B.
Note: in Case the door does not close properly, use the allen wrench to loosen the screws on the hinges while adjusting the door until the door
closes properly. Note: illustration B.
3. Use an allen wrench to install the door handles to the door. Illustrated in Drawing C.
Stainless Steel bracket
