EAPRO TRON 1050VA - Back Panel Configuration; Back Panel Components Identification; Back Panel Connection Points

N E I/P O/P
5350VA/48V
5350VA,7.5KVA,10KVA-96V
N E I/P O/P
BATTERY (-ve)
12V DC
BATTERY (+ve)
12V DC
Output Socket
1050VA/1500VA-12V
For AC Mains connection
carefully
In case of System failure it BYPASS the Mains
supply & run the load on AC mains
*Not available in 12V & 24V System
*
8
AC Input
Reset Switch
Mains Lead To connect input supply
10

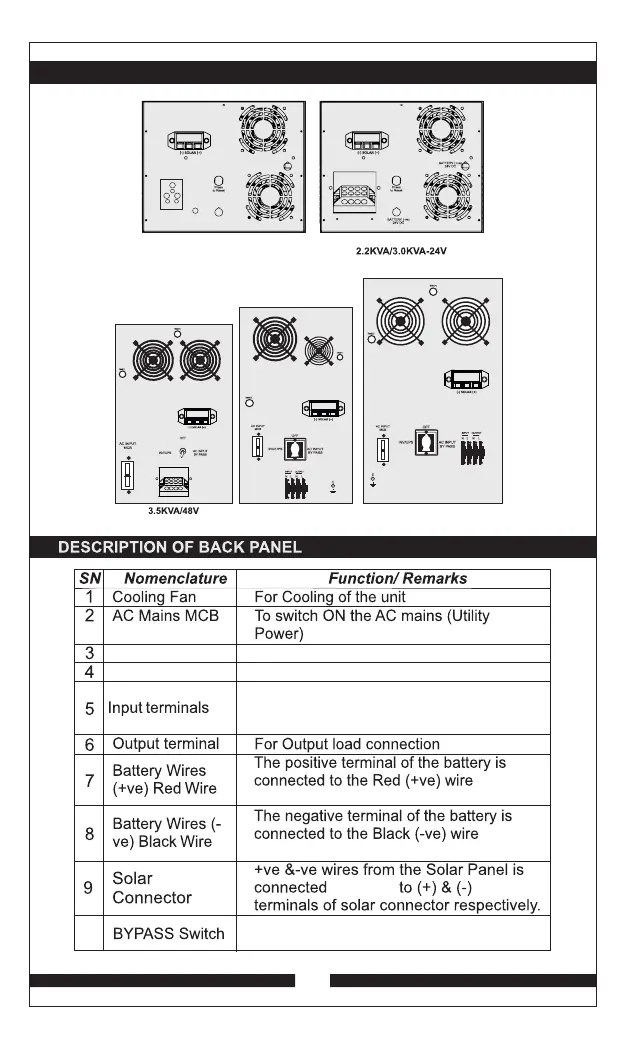

BACK PANEL OF THE MPPT OFF GRID HYBRID SOLAR PCU
Reset if trip
