EarthQuake CRT series User Manual

10
ARDISAM

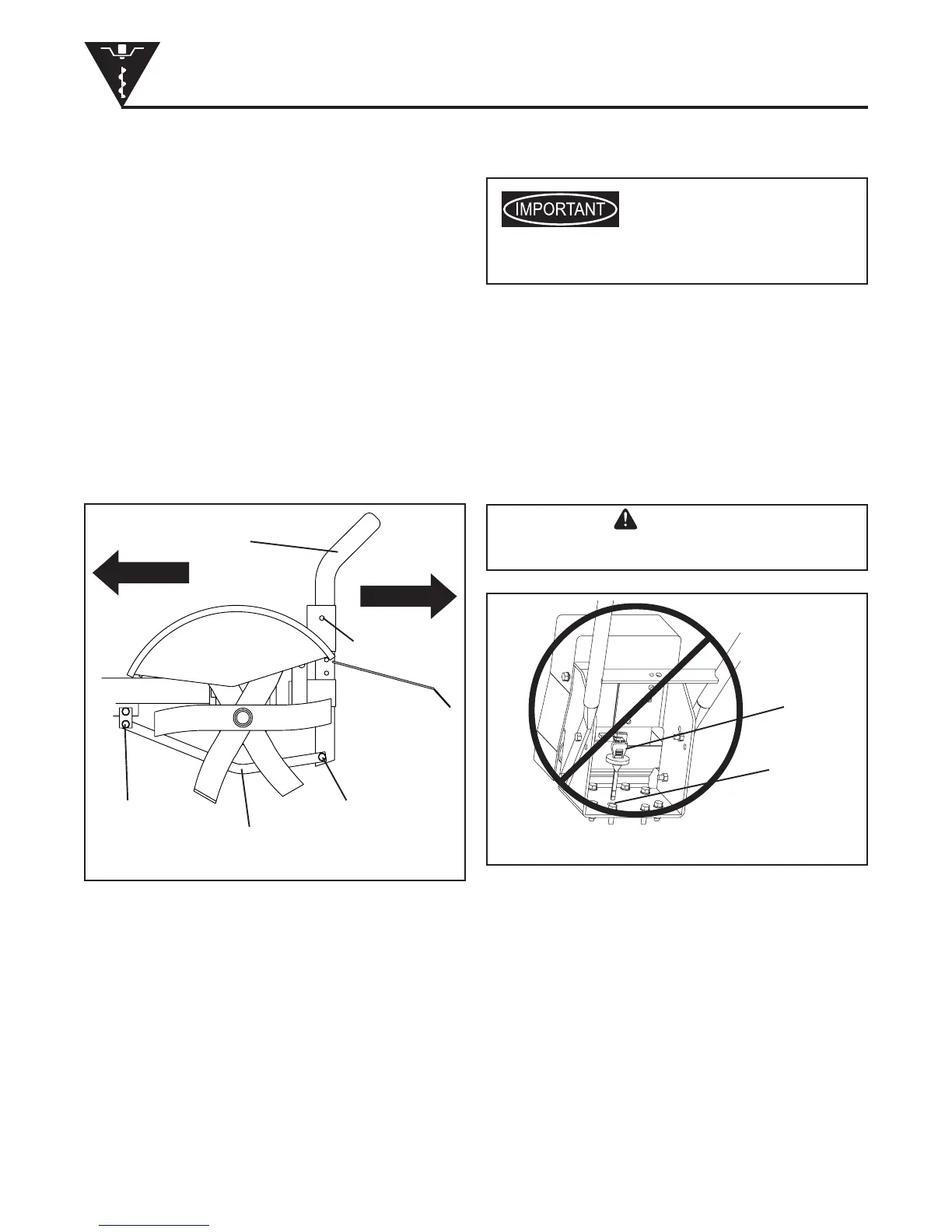

INSTALL THE DRAG BAR
1. Install the depth regulator lever into the top of the
depth regulator bracket with handle facing rearward.
2. Insert detent pin through depth regulator bracket and
top hole of depth regulator lever--tines should clear
the ground.
NOTE: The rototiller is now in the transport position.
3. Insert one 3/8”-16 x 1” bolt through rear of drag bar
and lower hole of depth regulator lever. Place nut on
end of bolt.
4. Align front hole in drag bar with hole in drag bar
linkage and insert one 5/16”-18 x 3/4” bolt.
5. Place nut on bolt and tighten. Back off nuts so drag
bar can move freely when depth regulator lever is
raised or lowered.
DRAG BAR PROPERLY INSTALLED
drag bar linkage
drag bar
depth regulator
lever
bottom hole of
depth regulator lever
REAR
FRONT
detent pin hole
UNPACKING AND ASSEMBLY
FILL ENGINE CRANKCASE
1. Add oil according to engine manual. Do not overfill.
Use a clean, high quality detergent oil. Container
must be marked A.P.I. Service SF - SJ. Use no
special additives with recommended oils. Do not
mix oil with gasoline. Oil level must be full. Check
the oil level by removing oil fill plug. Oil level should
be up to the bottom of the fill plug opening.
2. Always check oil level before starting engine. Refer
to engine manual for capacity and type of oil to use.
Engine is shipped from factory without oil. You
must add engine oil before starting engine.
Do not add engine oil into gear case dipstick hole.
CAUTION
dipstick
gear case
dipstick hole
NO ENGINE OIL!
