EarthQuake CRT series User Manual

12
ARDISAM

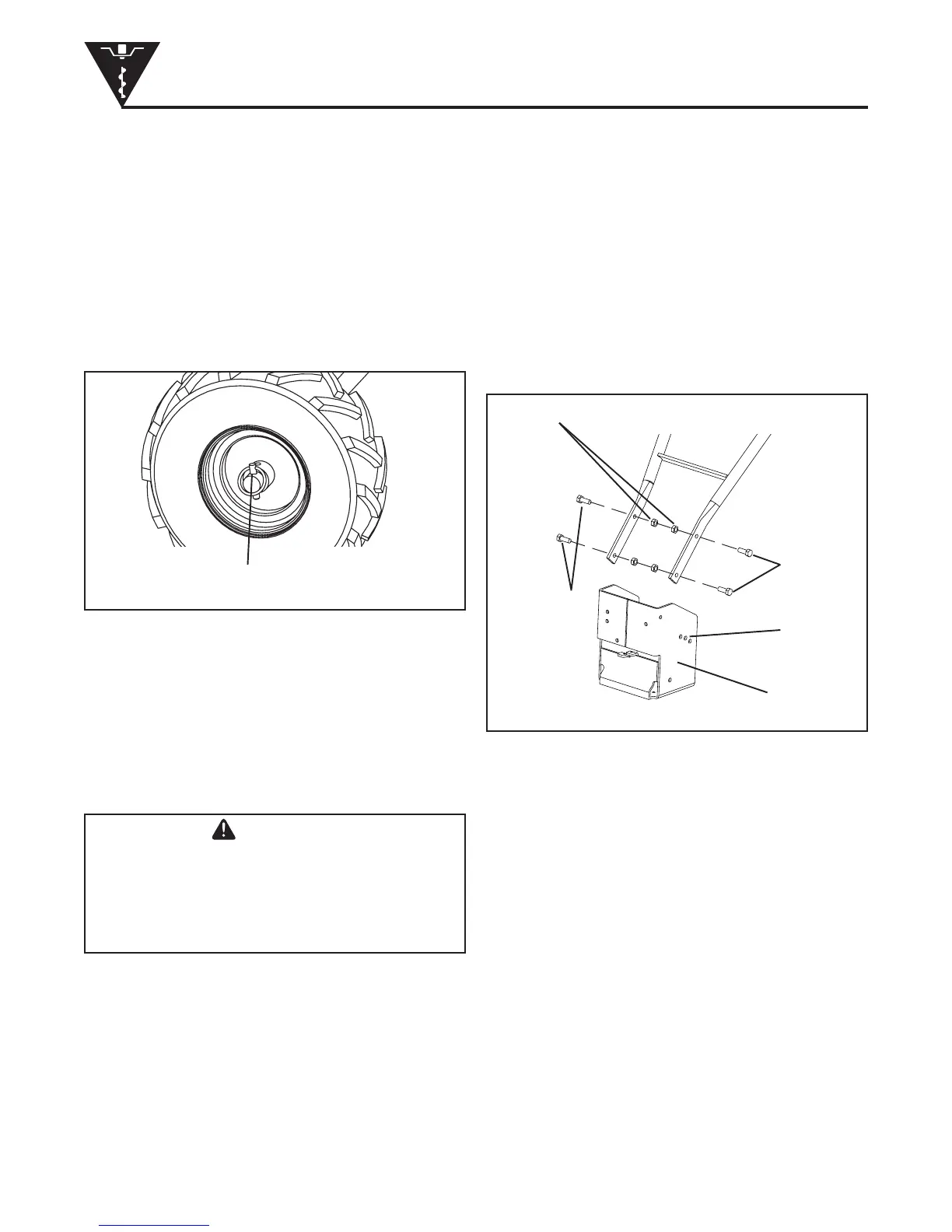

WHEEL LOCKPINS
Place wheels in tilling position.
1. Remove lockpin. Align hole in axle with hole in wheel
hub.
2. Insert lockpin through holes, fold lockpin ring to
secure pin to axle.
3. Wheel and axle should be firmly locked together
before tilling.
4. Repeat for other wheel.
NOTE: Always have both wheel lockpins in or out.
Do not operate tiller with only one wheel locked.
To place wheels in free-wheel position.
1. Remove lockpin. Slide wheel inward toward machine.
2. Insert pin in axle only.
3. Wheel should turn freely on axle.
Wheel lockpin in free-wheel position.
(axle hole only)
ADJUSTMENTS
HANDLEBAR HEIGHT ADJUSTMENT
Adjust handlebar height.
The ideal height of the handlebar varies with operator
height and the depth of tilling. To adjust handlebar
height:
1. Unscrew nuts and remove top bolt on each side until
handlebar moves freely up and down.
2. Align handlebar to desired hole on the transmission
cover.
3. Install bolts and nuts. Retighten.
height
adjustment
holes
transmission
cover
lock nuts
height
adjustment
bolts
height
adjustment
bolts
Never start engine or operate tiller with wheels in
free-wheel position. The free-wheel position is for
transporting the tiller long distances over level
ground--do not attempt to move the tiller up or
down steep grades in the free-wheel position.
WARNING
