10
Owner’s Manual
MC33 2-CYCLE CULTIVATOR
Get parts online at www.GetEarthquake.com or Call 800-345-6007 M-F 8-5 CST

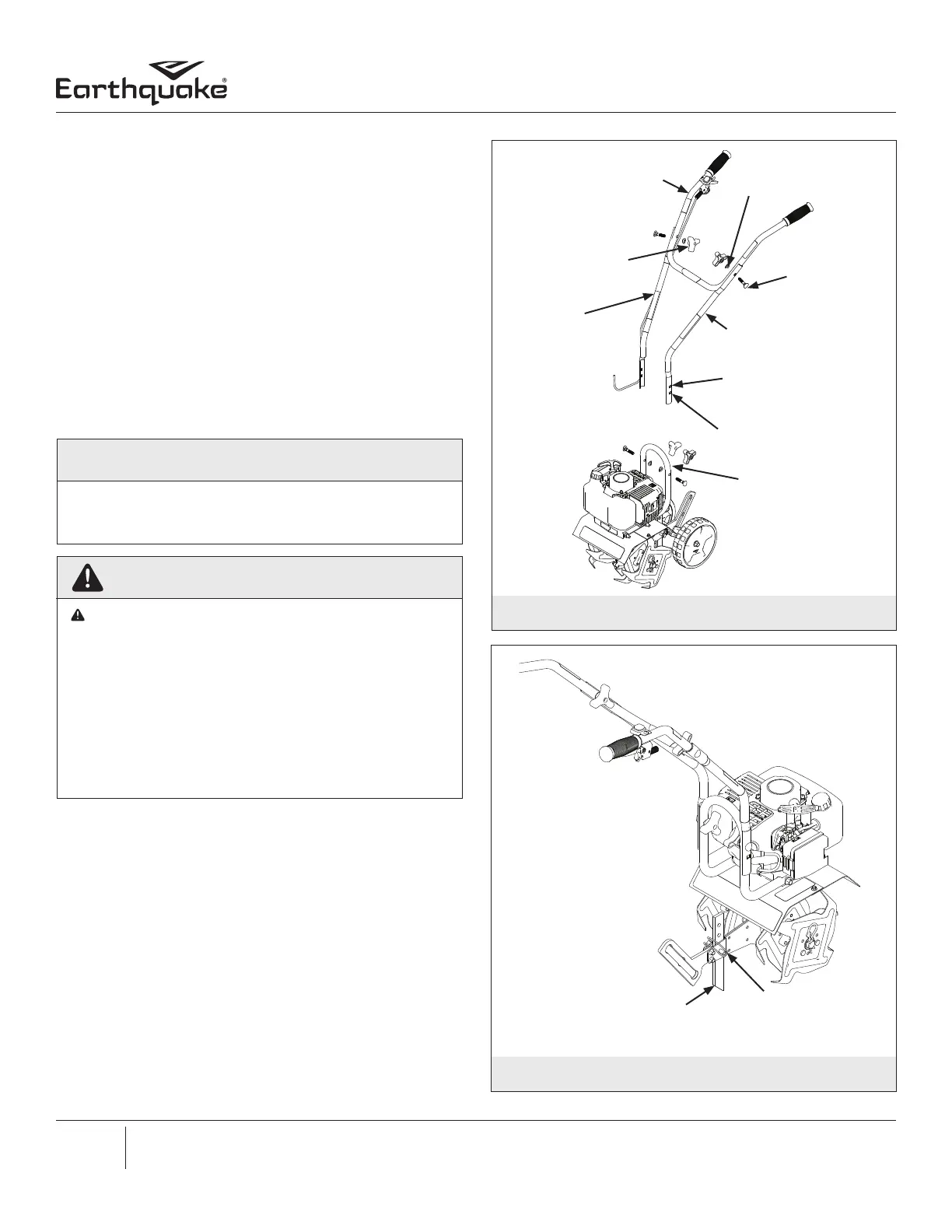

UNPACKING AND ASSEMBLY
FIGURE 3
CARTON CONTENTS
CULTIVATOR ASSEMBLY
• Hardware Parts Bag:
• A - (4) Three-Knob Nut
• B - (4) Curved Washer
• C - (4) Saddle Bolt
• Manual Parts Bag
• Left Middle, Right Middle, and U-Turn™ Handlebars
• “A” and “B” Tine Sets
• Bottle of 2-cycle Engine Oil
FIGURE 2
WARNING
COMBUSTIBLE DEBRIS CAN CATCH FIRE. IT IS A VIOLATION
OF CALIFORNIA PUBLIC RESOURCE CODE, SECTION 4442,
TO USE OR OPERATE ENGINE-POWERED PRODUCTS
ON ANY FOREST-COVERED, BRUSH-COVERED, OR GRASS-
COVERED LAND UNLESS THE EXHAUST SYSTEM IS
EQUIPPED WITH A SPARK ARRESTER, AS DEFINED IN
SECTION 4442, MAINTAINED IN EFFECTIVE WORKING
ORDER. OTHER STATES OR FEDERAL JURISDICTIONS MAY
HAVE SIMILAR LAWS. CONTACT THE ORIGINAL EQUIPMENT
MANUFACTURER, RETAILER, OR DEALER TO OBTAIN A
SPARK ARRESTER DESIGNED FOR USE WITH THIS PRODUCT.
NOTICE
HANDLE CULTIVATOR WITH CARE. DO NOT DAMAGE
CABLE WHEN TRANSPORTING OR OPERATING.
ASSEMBLY
1. Stand the tiller cultivator assembly upright with tines and
wheels on a level surface. Wheels should be set in the
lowest position. DO NOT place the tiller cultivator on a
high surface where it can fall and cause property damage
or personal injury.
2. Using two three-knob nuts, two saddle bolts, and two
curved washers, attach the middle handlebars to the
lower handlebar that is already connected to the tiller cul-
tivator assembly. The middle handlebars can be installed
in one of two positions, one high and one low. DO NOT
overtighten the three-knob nuts. SEE FIGURE 2.
LOCK PINDRAG
STAKE
U-TURN™
HANDLEBAR
THREE-KNOB
NUT
LEFT MIDDLE
HANDLEBAR
CURVED
WASHER
SADDLE BOLT
RIGHT
MIDDLE
HANDLEBAR
LOW POSITION
MOUNT HOLES
HIGH POSITION
MOUNT HOLES
LOWER
HANDLEBAR
