19
Owner’s Manual
MC33 2-CYCLE CULTIVATOR
Get parts online at www.GetEarthquake.com or Call 800-345-6007 M-F 8-5 CST
BORDER EDGER KIT INSTALLATION OPTIONAL
ACCESSORY
CAUTION
BE AWARE THAT THE CULTIVATOR COULD UNEXPECTEDLY
BOUNCE UPWARD, OR JUMP FORWARD IF THE TINES
STRIKE CONCRETE, PAVEMENT, OR OTHER HARD SURFACES
OR HARD OBSTACLES BURIED UNDER GROUND.
The Border-Edger Kit is a useful tool for making clean cuts in
the lawn along the borders of gardens, ower beds, walkways,
and driveways for a well manicured look. To install the
Border-Edger Kit, do the following:
INSTALLATION
1. Make sure the cultivator is not running by ipping the ON/
OFF switch to the OFF or STOP position.
2. Remove the hairpins from both sides of the tine shaft.
3. Remove the cultivating tines from the shaft, remembering
which direction they are facing.
4. Remove the drag stake and lock pin from the unit.
5. Put the tines in a safe place and save the (2) hairpins, they
will be used on the Border-Edger Kit.
6. Slide the border-edger tine onto either side of the tine
shaft. Make sure that the hub collar of the border-edger
tine faces outward, away from the transmission of the
cultivator. SEE FIGURE 13.
7. Take the (2) hairpins saved in Step 5 and insert them
through the inner and outer holes in the tine shaft on
each side of the border-edger tine to secure the tine blade
in place on the shaft. SEE FIGURE 13.
8. Slide the border-edger wheel onto the opposite side of
the tine shaft as far as it will go.
9. Insert the remaining (1) hairpin, that came with the kit,
through the inner hole next to the wheel in the middle of
the tine shaft. SEE FIGURE 13.
10. Set the cultivator wheels to the HIGHEST (top) position.
SEE FIGURE 6.
NOTE: A drag stake should not be used when using the
edger kit.

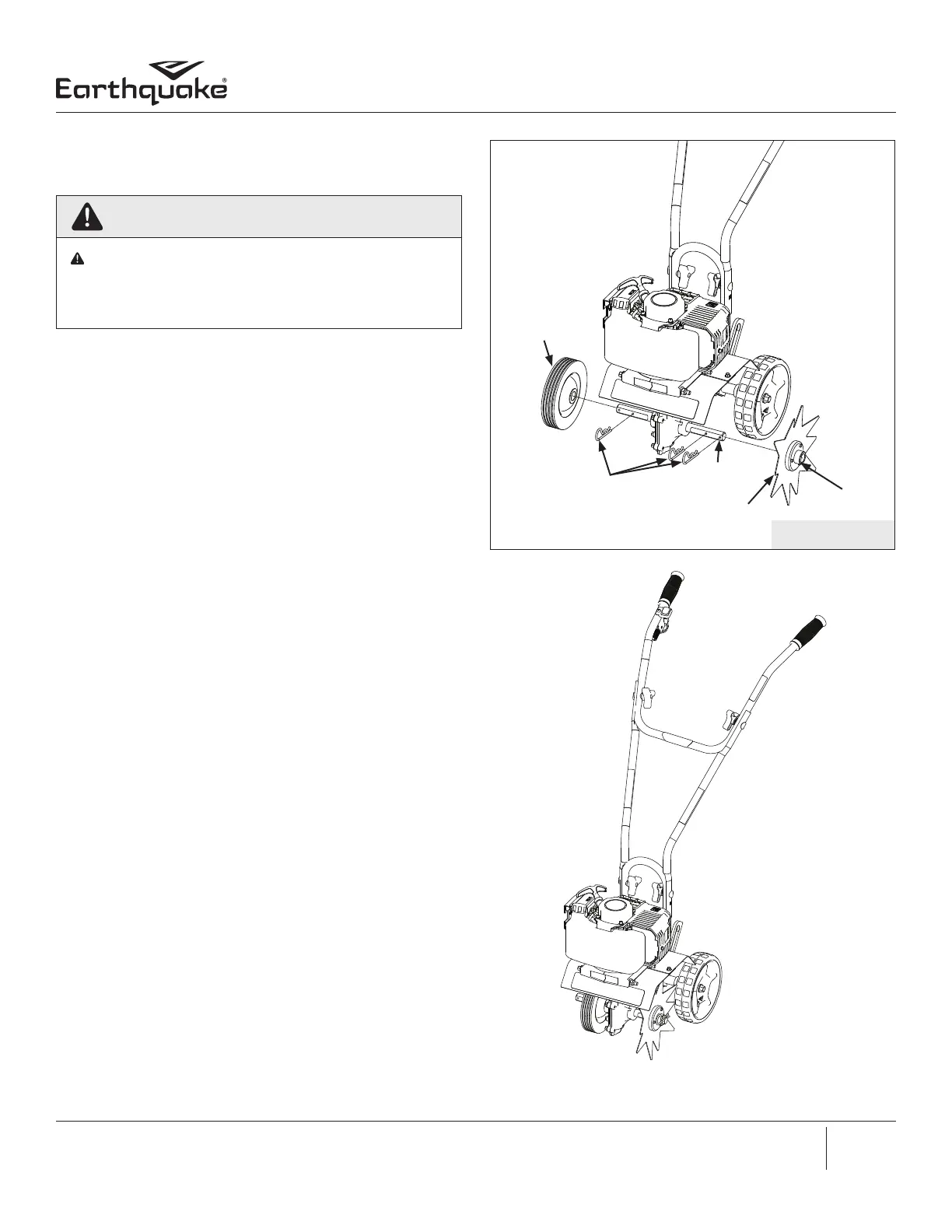

FIGURE 13
BORDER
EDGER TINE
TINE SHAFT
HUB COLLAR
HAIRPIN
BORDER
EDGER WHEEL
