MC440 4-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 19
KEY PART # DESCRIPTION QT Y.
1 46146 TINE SHIELD 2
2 46138 TRANSMISSION ASSEMBLY 1
3 4602 TINE C ASSEMBLY 1
4 4604 TINE D ASSEMBLY 1
5 4652 HAIRPIN 5/83/4 2
6 4603 TINE B ASSEMBLY 1
7 4601 TINE A ASSEMBLY 1
8 4673 WHEEL HOLDER 1
9 4600 DRAG STAKE 1
10 4674 TUBE WHEEL AXLE 1
11 13189 WHEEL 180 X 38MM DIAMOND TREAD
GREY HUB
2
12 4687 BOLT M10 X 1.5 X 225 MM 1
13 4678 TUBE WHEEL GUIDE 1
14 4684 TUBE WHEEL LOCK 1
15 4685 SPRING WHEEL LOCK 1
KEY PART # DESCRIPTION QT Y.
16 46142 BOLT M6 X 1.0 X 20 2
17 4650 NUT M6 X 1.0 2
18 46145 PIN QUICKRELEASE M8 X 25 1
19 4625 BOLT M6 X 1.0 X 42 FLANGE 4
20 13230 WASHER 21MM X 16MM X 1MM 1
21 12811 LOWER HANDLEBAR 1
22 46141 BOLT M8 X 1.25 X 160MM 2
23 400023 NUT M8 NYLOCK 2
24 4641 CURVED WASHER M8 4
25 11614 ENGINE 40CC 4 CYCLE OHV 1
26 13048 NUT M10 X 1.5 1
27 176 BOLT M5 X 0.8 X 10 2
28 400020 NUT M5 X 0.8 TOPLCK 2
29 2431 FLAT WASHER M10 X 20 X 2 2

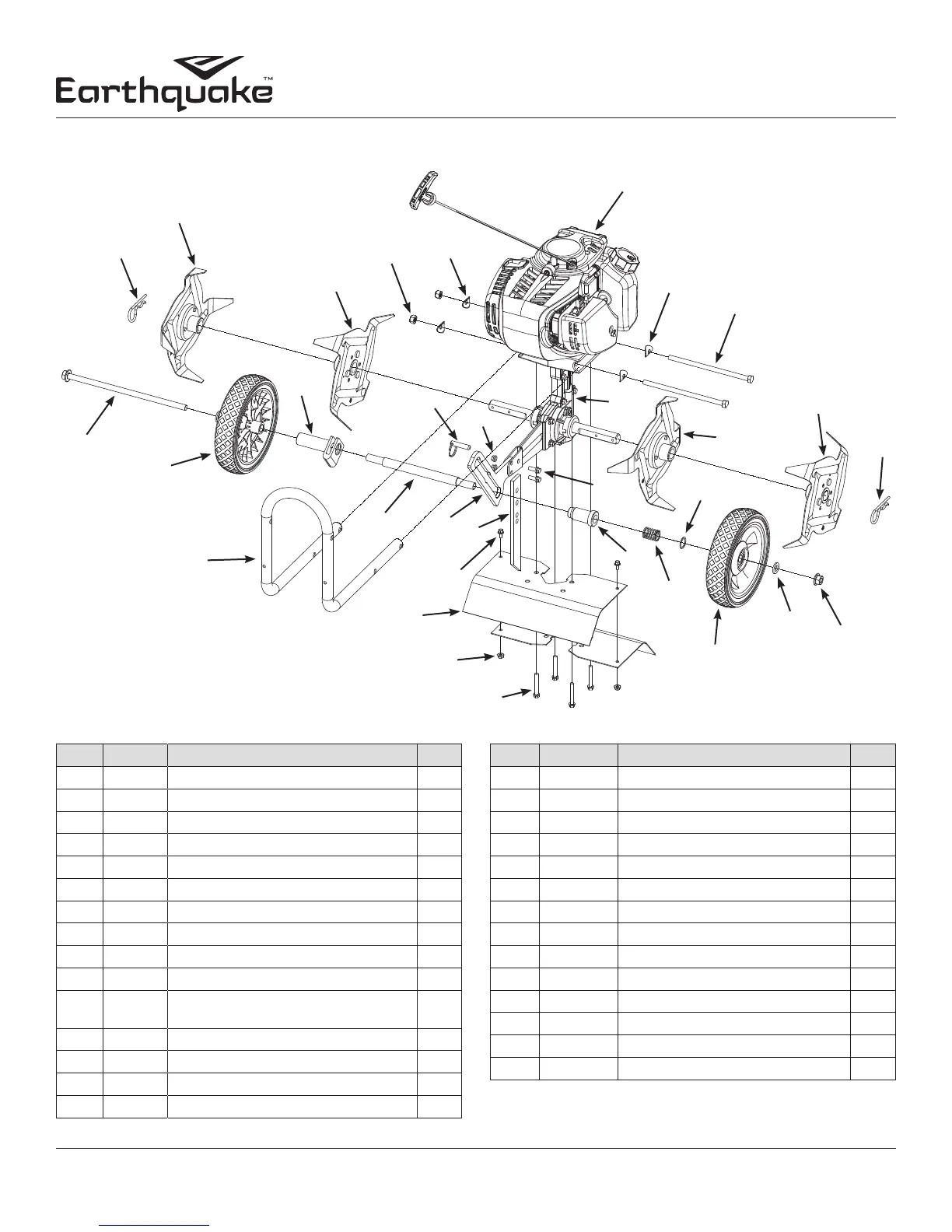

HOOD & TINES PARTS EXPLOSION
5
7
12
11
6
25
24
23
24
22
13
2
5
4
3
20
29
26
11
15
27
14
1
19
28
18
17
16
8
9
21
10
