EarthQuake MC440 User Manual

Operator's Manual
MC440 4-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
18

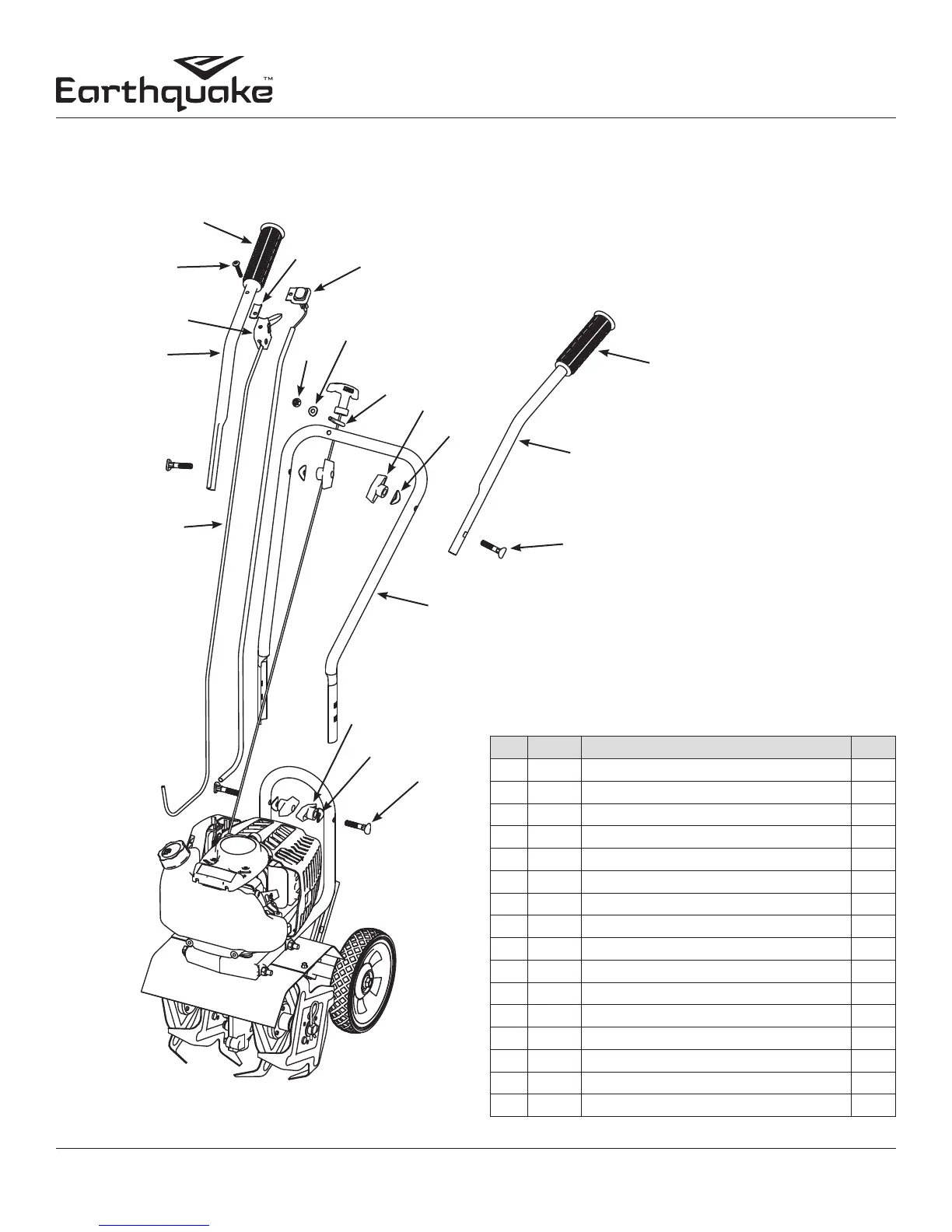

HANDLEBAR PARTS EXPLOSION
KEY PART # DESCRIPTION QT Y.
1 13184 UPPER LEFT HANDLEBAR ASSEMBLY GREY 1
2 13182 UPPER RIGHT HANDLEBAR ASSEMBLY GREY 1
3 13309 KNOB TEXTURED HANDLE GRIP 2
4 4640 THANDLE NUT 4
5 4641 WASHER 4
6 4642 HANDLE CLAMP BOLT 4
7 13370 MIDDLE HANDLEBAR ASSEMBLY GREY 1
8 4814 BOLT 1024 X 1 1/4 1
9 12633 HANDLEBAR RUBBER PAD 15MM X 28.5MM 1
10 4819 TRIGGER ASSEMBLY LONG 1
11 1021CE ON/OFF SWITCH WIRE ASSY 1
12 4667 THROTTLE CABLE 1
13 64131 NUT M6 X 1.0 1
14 10800 CURVED WASHER M6 1
15 400025 EYEBOLT M6 X 12 X 25 1
16 13804 THROTTLE TRIGGER KIT WITH CABLE 1
6
1
1, 3
2, 11
2, 10, 16
2, 9
2, 8
2
7
4
5
4
5
6
2, 3
7, 13
7, 14
7, 15
2, 12, 16

EarthQuake MC440 Specifications

General

Brand	EarthQuake
Model	MC440
Category	Tiller
Language	English
