EarthQuake MC440 User Manual

Operator's Manual
MC440 4-Cycle Cultivator
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5
22
KEY PART # DESCRIPTION QT Y.
1 46136*
MC LOWER TRANSMISSION CASTING LEFT
1
2 4646
SEAL SHAFT 19MM SHAFT 32MM BORE
2
3 4645
BUSHING M19 ID X 25.5OD DPROFILE FLANGE
2
4 4613
WORM
1
5 4616
SPACER BUSHING 22 X 11.05 X 2.413MM
1
6 4614
BUSHING M11 ID X 19OD DPROFILE FLANGED
2
7 4617
THRUST REDUCER BEARING M11 X 15OD
FLANGE
1
8 4618
THRUST WASHER 28 X 15 X 1.5MM
2
9 4619
THRUST BEARING 28 X 15 X 2MM
1
10 46137
DRIVE SHAFT
1
11 4623
BALL BEARING 9MM X 26MM DOUBLE SEALED
1
12 300414
CLUTCH DRUM ASSEMBLY 77.7MM
1
13 46135*
MC LOWER TRANSMISSION CASTING RIGHT
1
KEY PART # DESCRIPTION QT Y.
14 46144
DUST CAP
2
15 4648
BOLT M6 X 1.0 X 22 FLANGE
2
16 4647
BOLT M6 X 1.0 X 18 FLANGE
4
17 4633
WHEEL AND DRAG MOUNT
1
18 4649
BOLT M6 X 1.0 X 25
2
19 4650
NUT M6 X 1.0
2
20 4620
NUT M8 X 1.25
1
21 W1200117
FLAT WASHER M6 X 13 X 1.75
2
22 13447
BOLT M6 X 1.0 X 8MM
2
23 4610
SHIM TINE SHAFT 35MM X 19MM X 2.2MM
4
24 4606
FIBER WASHER 38 X 19 X 3.2MM
2
25 4651
SHAFT TINE ASSEMBLY
1
26 46138
TRANSMISSION ASSEMBLY
1

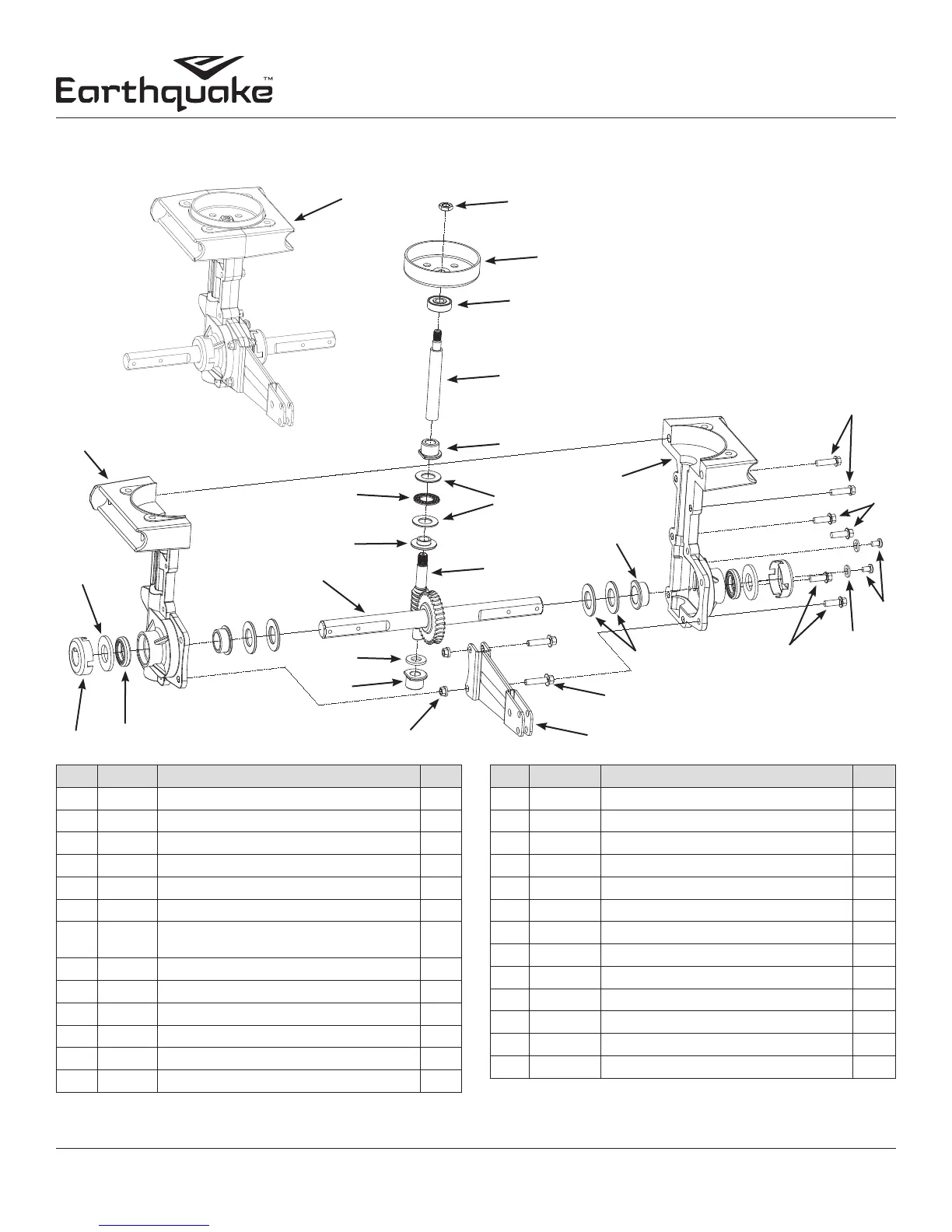

TRANSMISSION PARTS EXPLOSION
20
12
11
10
6
8
9
7
4
25
1, 26
14
2
24
5
6
19
17
18
23
3
13, 26
16
15
16
21
22
* Available as Assembly or Kit Only
26

EarthQuake MC440 Specifications

General

Brand	EarthQuake
Model	MC440
Category	Tiller
Language	English
