ASSEMBLY
8

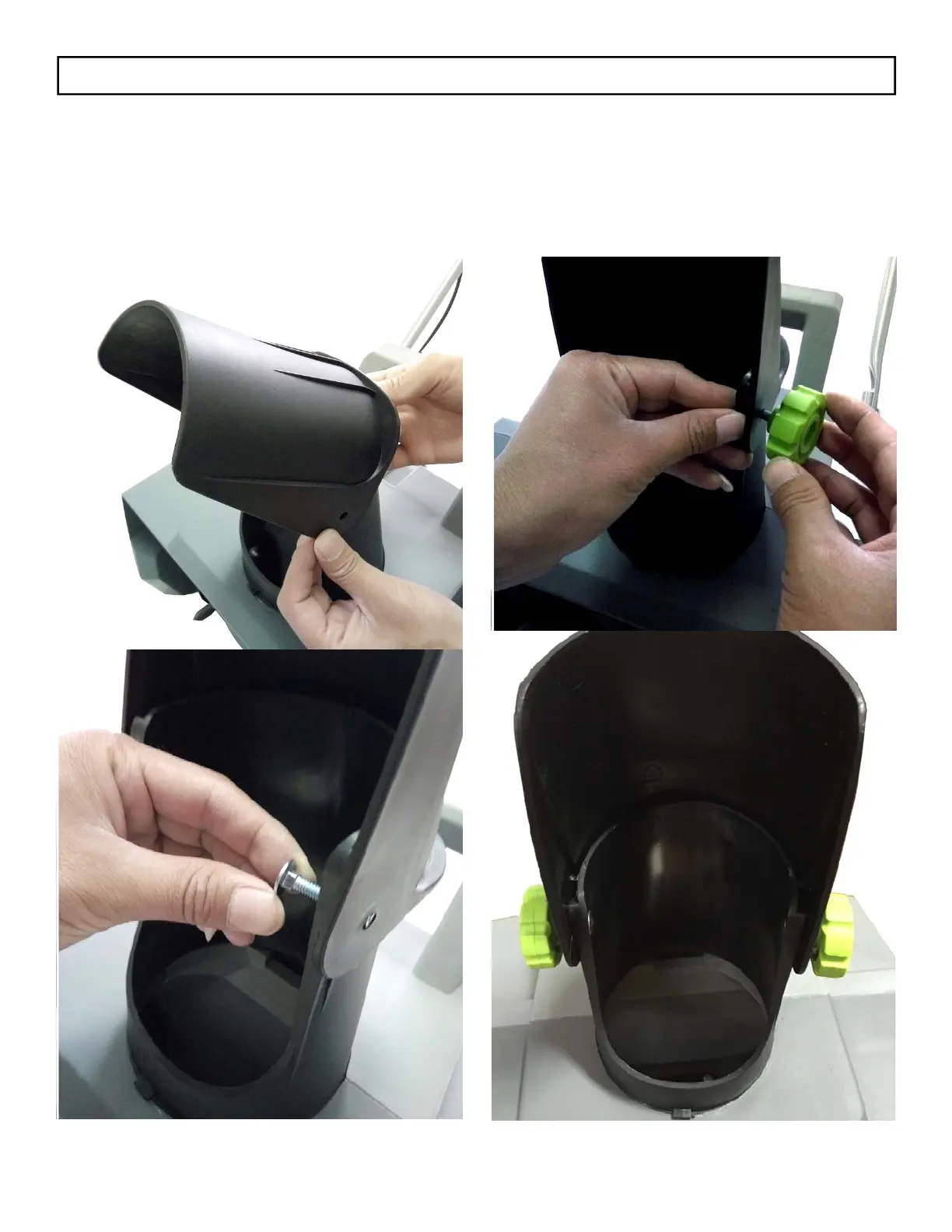

INSTALLING CHUTE DEFLECTOR
 Position the chute deflector over the discharge chute.
(See Fig 11)
 Align the holes and place the washer between the
deflector and chute.
(See Fig 12)
 Secure tightening the knobs firmly. (See Fig 13 - 14)
Fig. 11
Fig. 12
Fig. 13
Fig. 14
