INSTALLING CHUTE CRANK
 Install the upper chute crank through the bracket
located on the center handle. (See Fig 8)
 Align the holes in the upper and lower cranks and
insert the cotter pin through the holes as shown to
secure. (See Fig 9 and Fig 10)
 Turn the lever left and right to verify the proper
functioning of the crank and the chute.
ASSEMBLY
7
INSTALLING UPPER HANDLE
 Align the holes on the upper handle with the holes in
the center handle as shown. (See Fig 6)
 Insert threaded end of J bolt through both handles with
the threaded end facing inside.
 Install the handle knob and tighten secure.
 Repeat on the opposite side.
 Secure the cable clip to handles. (See Fig 7).

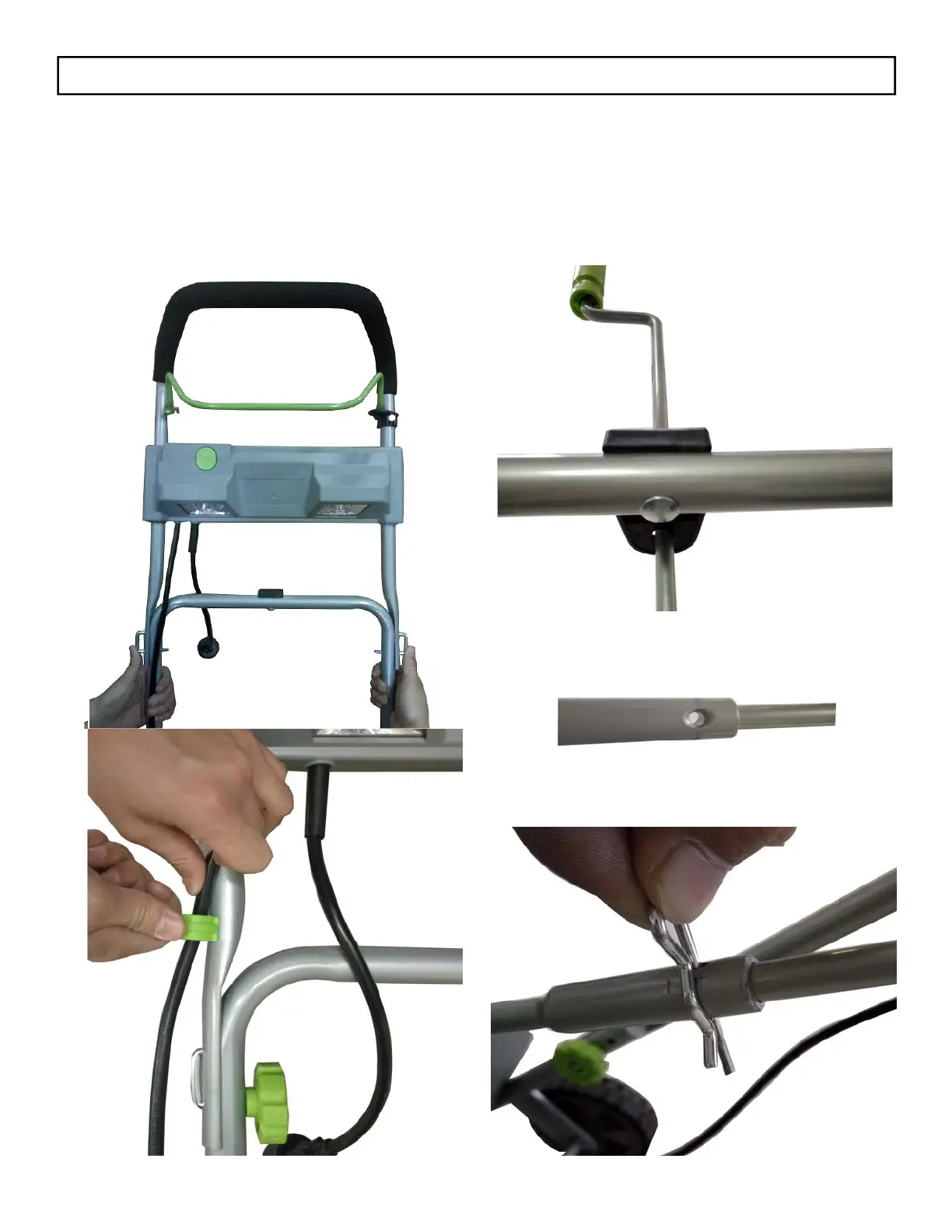

Fig. 8
Fig. 9
Fig. 10
Fig. 7
Fig. 6
