L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm)
900 520 60 56 870+4 490+4
50 mini 3mini

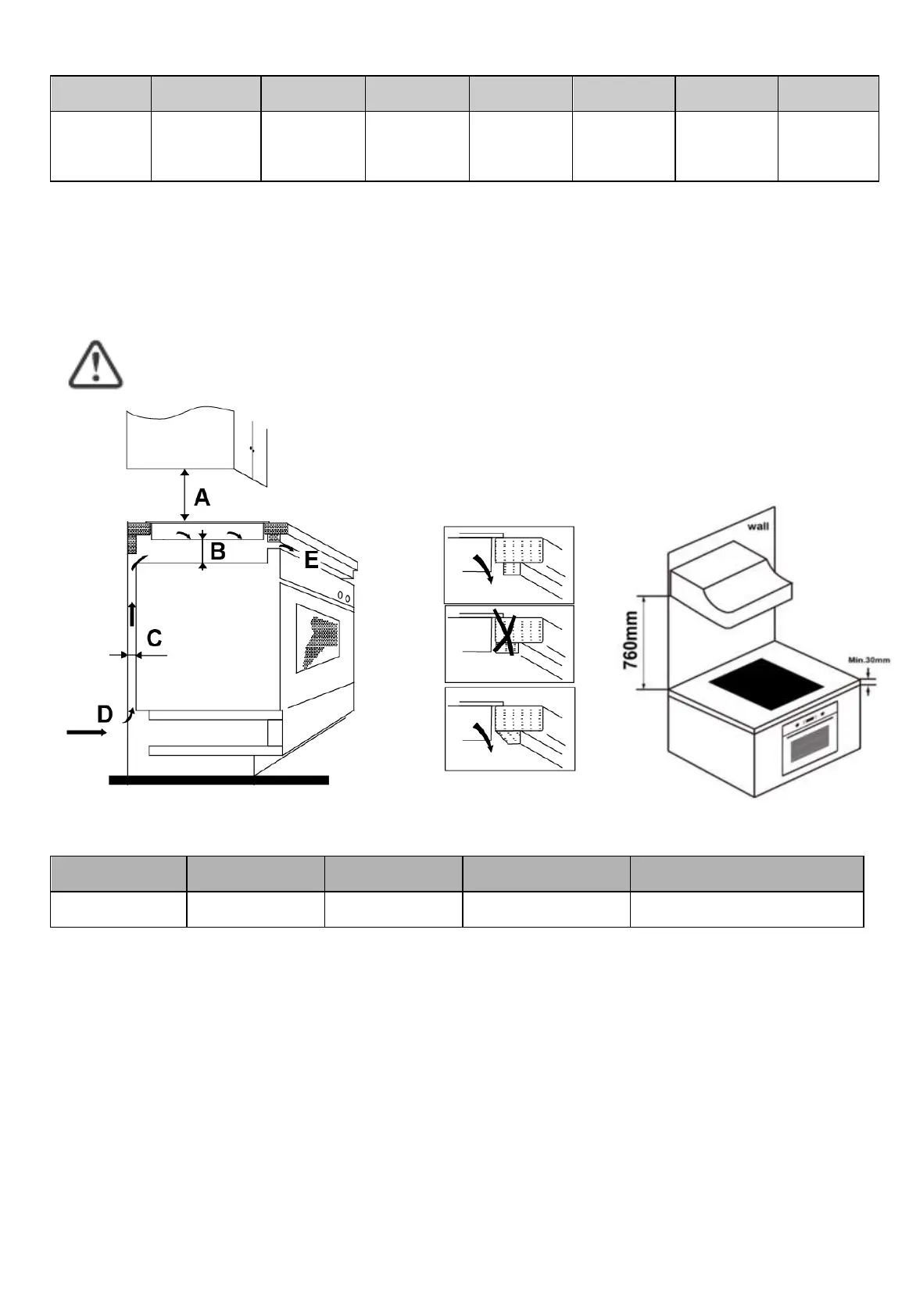

Under any circumstances, make sure the Induction cooker hob is well ventilated
and the air inlet and outlet are not blocked. Ensure the induction cooker hob is
in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760 mm.
WARNING: Ensuring
Adequate Ventilation
Make sure the induction cooker hob is well ventilated and that air inlet
and outlet are not blocked. In order to avoid accidental touch with the
overheating bottom of the hob, or getting unexpectable electric shock
during working, it is necessary to put a wooden insert, fixed by screws,
at a minimum distance of 50mm from the bottom of the hob. Follow the
requirements below.
A(mm) B(mm) C(mm) D E
760 50 min. 20 min. Air intake Air exit 5mm
