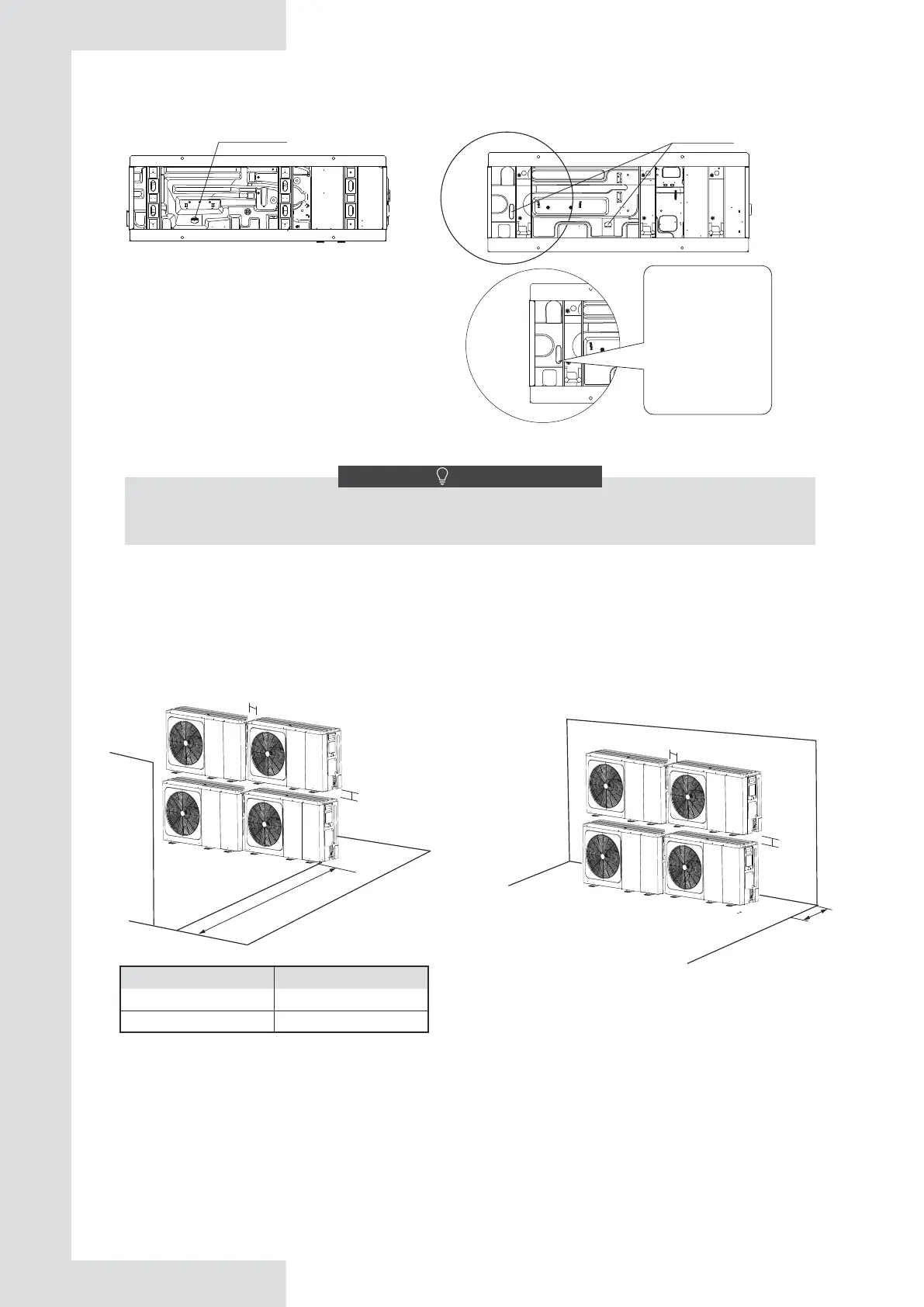

7.3 Drain hole position
8/10/12/14/16 kW
4/6 kW
It's necessary to install an electrical heating belt if water can't drain out in cold weather even the big drain hole has
opened.
NOTE
Drain hole
This drain hole is
covered by rubber
plug. If the small
drain hole can not
meet the drainage
requirements, the big
drain hole can be
used at the same
time.
Drain hole
V.1
7.4 Servicing space requirements
7.4.1 In case of stacked installation
1)) In case obstacles exist in front of the outlet sid
≥500mm
≥200mm
A(mm)
≥1000
≥1500
Unit
4~6kW
8~16kW
2)) In case obstacles exist in front of the air inle
≥300mm
A
≥500mm
≥200mm
