29

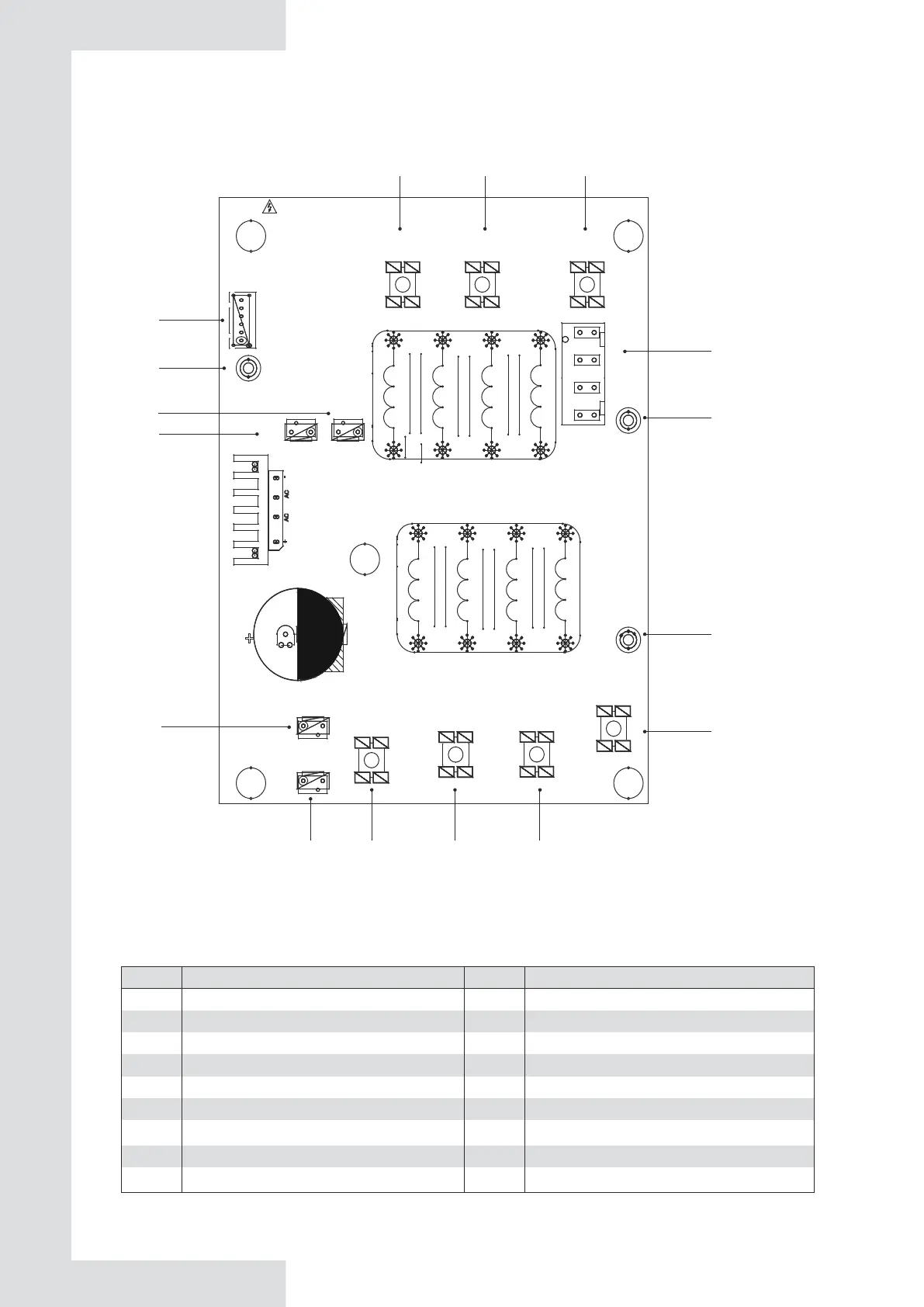

3) PCB C, filter board
Assembly unit Assembly unit
Coding Coding
1
2
3
4
5
6
7
9
10
11
Power supply L3(CN200)
Power supply L2(CN201)
Power supply L1(L1)
Power supply N(CN203)
Reserved(CN211)
Power supply port for main control board(CN30)
Power filtering L1(L1’)
Power filtering L2(L2’)
Power filtering L3(L3’)
PCB C 3-phase 12/14/16kW
PE1
PE2
PE3
CN202
CN201CN200CN203
CN204 CN205 CN206
CN212
CN211
CN8
CN213
CN214
CN30
2
5
4 3
6
13
12
7
8
9
10
11
14
15
1
16
12
8
13
14
15
16
Power supply port of 310VDC(CN212)
Ground wire(PE3)
Port for ground wire(PE1)
Port for ground wire(PE2)
Power supply port for Inverter module(CN214)
Port for FAN Reactor(CN213)
Port for communication with PCB B (CN8)
V.1
