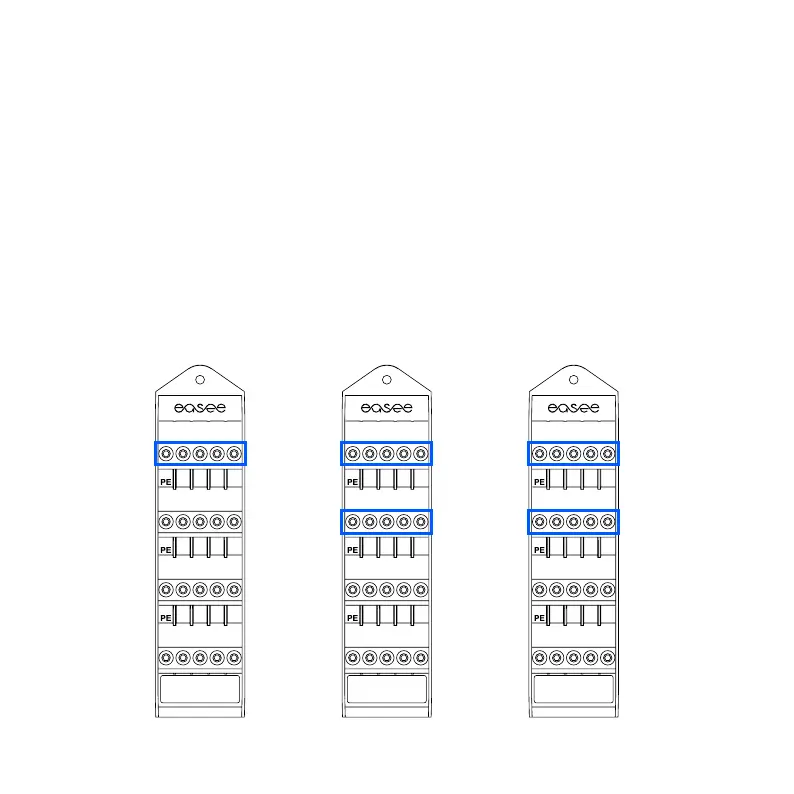

We recommend using the two upper terminal sets for the
charger cables.
For a single charger, only one set of terminals is used, for two
chargers, both sets of terminals are used, and for three or
four chargers, two wires have to share a terminal. Wire size
up to 6mm².
Charger 1 Charger 1 Chargers 1 - 2
Charger 2
Chargers 3 - 4
1-Way 2-Way 3-Way / 4-Way
