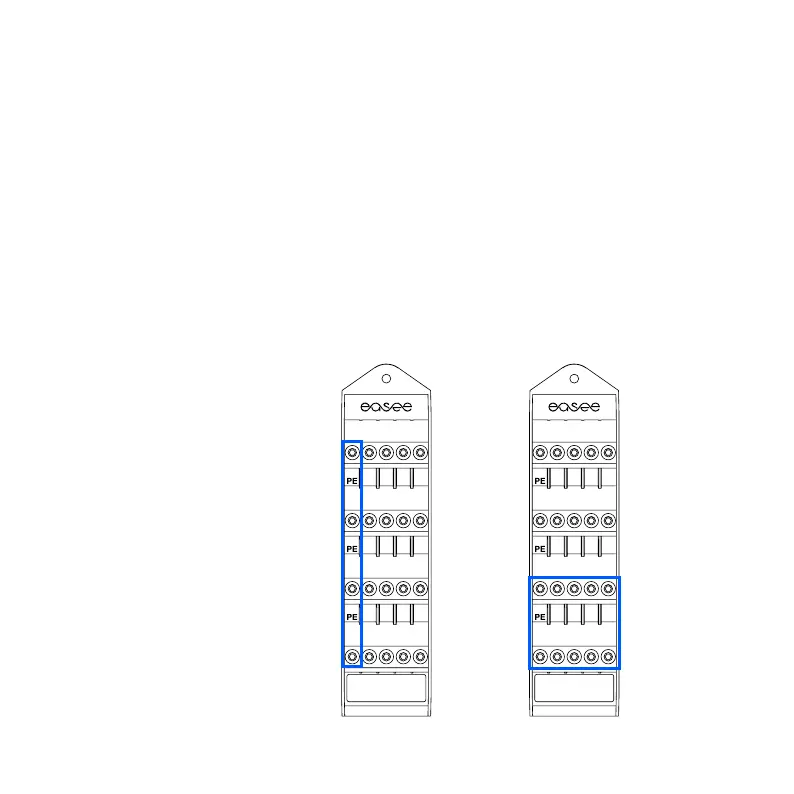

The ground connection plate connects the entire leftmost lane
to the metal column, so it is very important that this lane is
only used for PE connections.
We recommend using the two lower terminal sets for the
main power cables.
One set of terminals is used for power in and the other is
used for power out, if you want to connect another charging
post on the same cable. Wire size up to 25mm².
Power in / out
Power Rail
Terminals2
PE lane
