PEPE NN L1L1 L2– L3–
TN network
Wiring
TN is the most common grid type in Europe. It uses five
conductors to provide both 230 V and 400 V. This makes
it very efficient and therefore the preferred grid type for
charging electric vehicles.
NOTICE! Depending on the time of installation and national
standards, the colours of the cables can vary from the
illustration below. Therefore, please make sure that the
conductors are correctly terminated before applying power.
NOTICE! The charger is designed for a TN grid type with 5
lead cable.

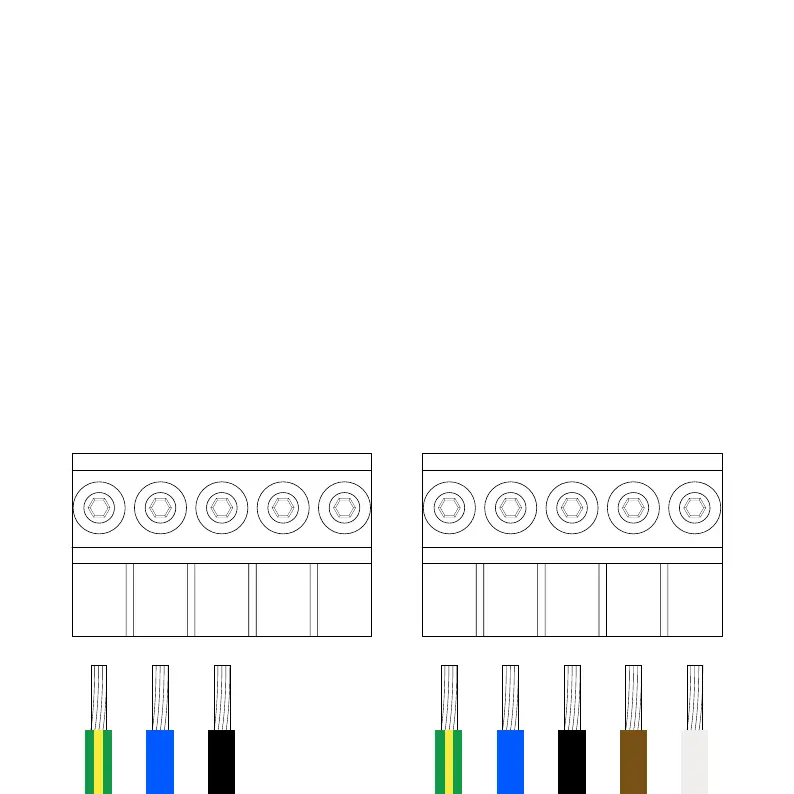

TN 3-phase
TN 1-phase
