KIT OVERVIEW
2
1.4 System Diagram and Applications
System Diagram

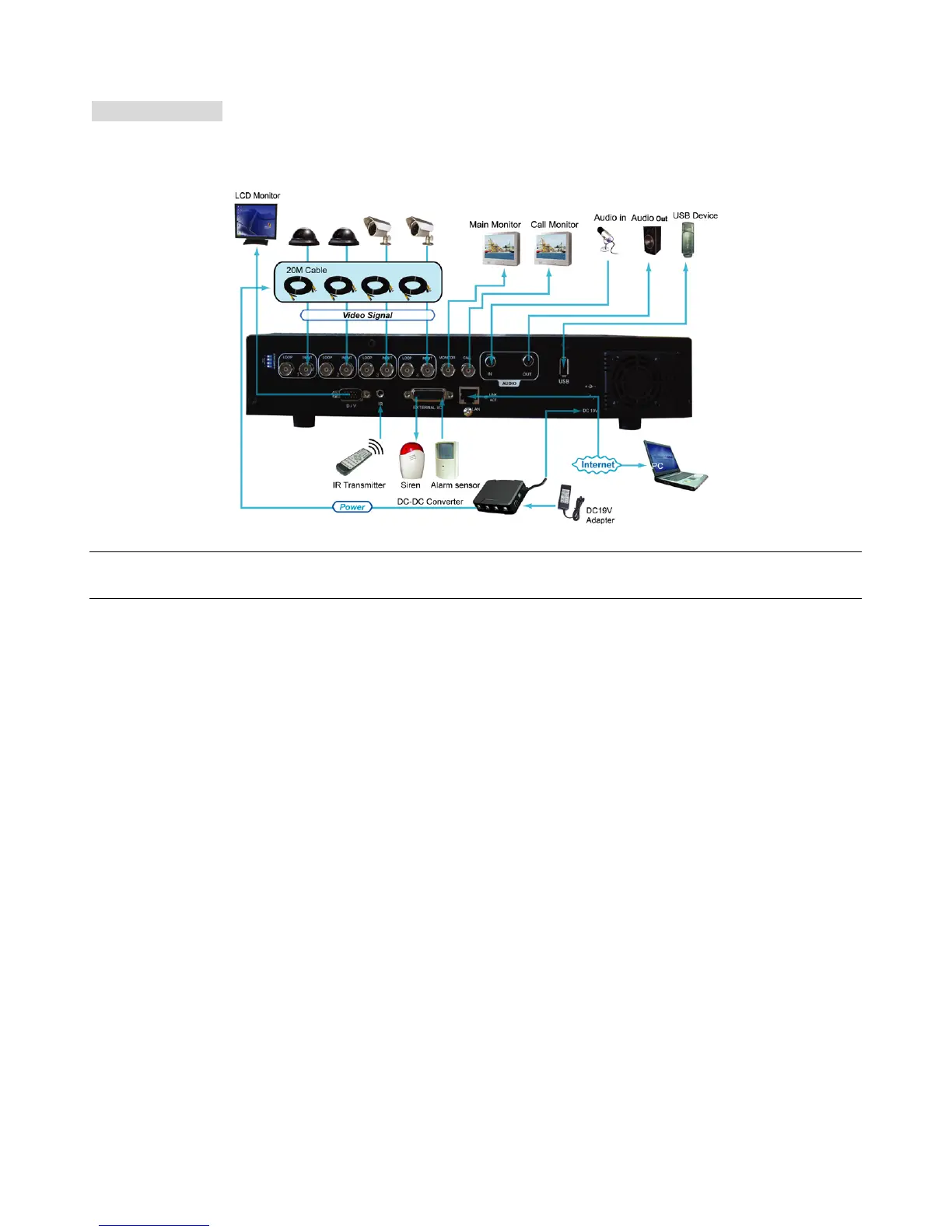

For this all-in-one kit connection, please see the illustration below as an example. The system is an ideal surveillance
system for shop, hospital, office, warehouse, home, manufactory, subway, machine room, parking lot use and so on.
NOTE: The rear panel shown above takes Model 4 as an example. For the actual rear panel of your DVR,
please refer to its own user manual.
