SETUP
1. Motor installation

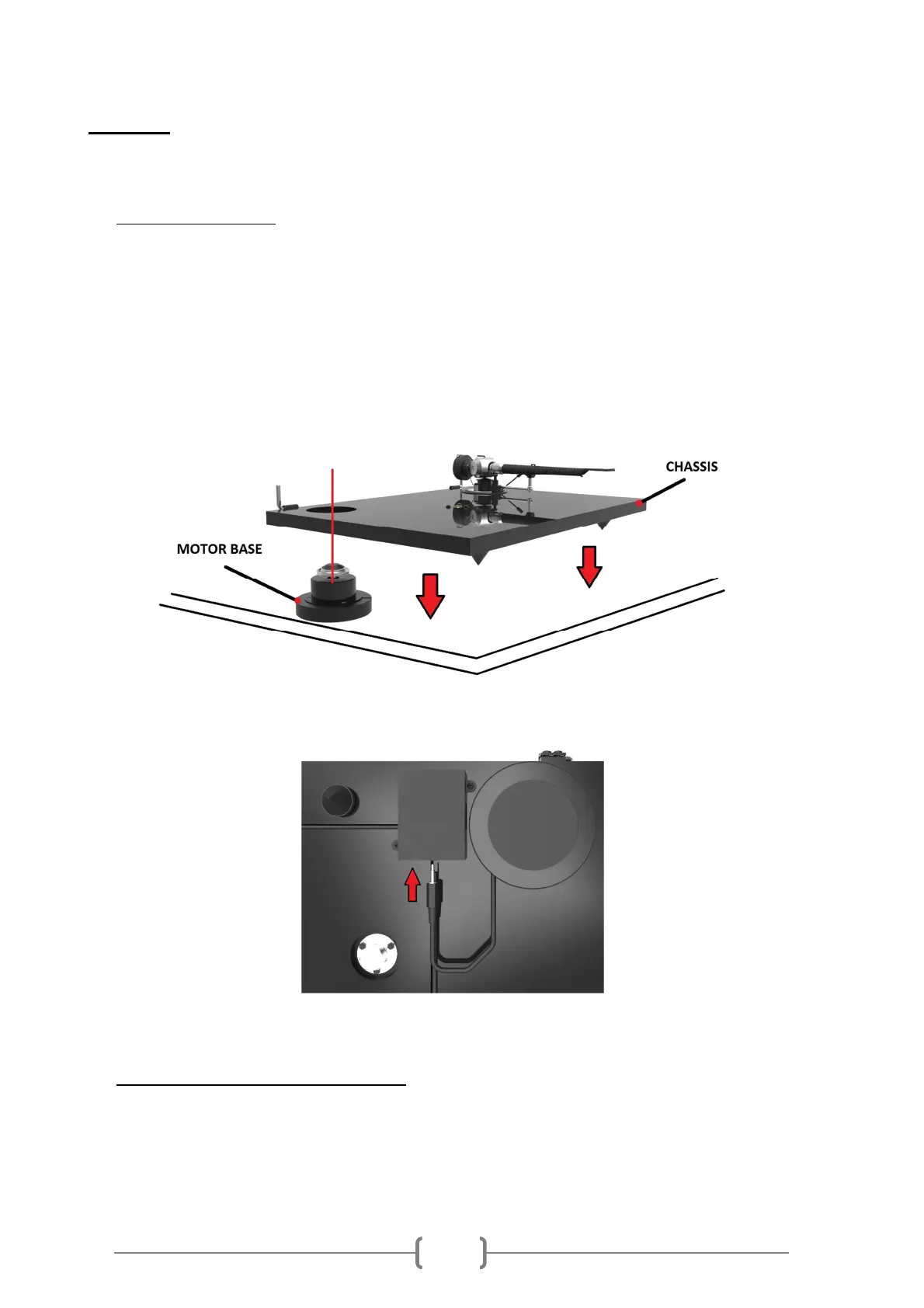

Remove the complete motor base (4), (including motor, pulley and connection cable) from the
packaging and place it to the required position on the place where turntable will be installed.
Install the turntable chassis over the motor base. Motor base should be in the middle of the
hole in left rear corner of the chassis as shown in the following illustrations.
Connect the motor connection cable to the power socket as shown in the following ilustration.
2. Platter and drive belt installation
Remove the protective cover from the platter bearing shaft.
Install the platter (2) and the drive belt (5) as shown in the following illustrations.
