3. Operation and Operating mode

--16--

DB-9 pin assignment:

Pin number Function description I/O

3 Rx input

2 Tx output

5 Ground GND

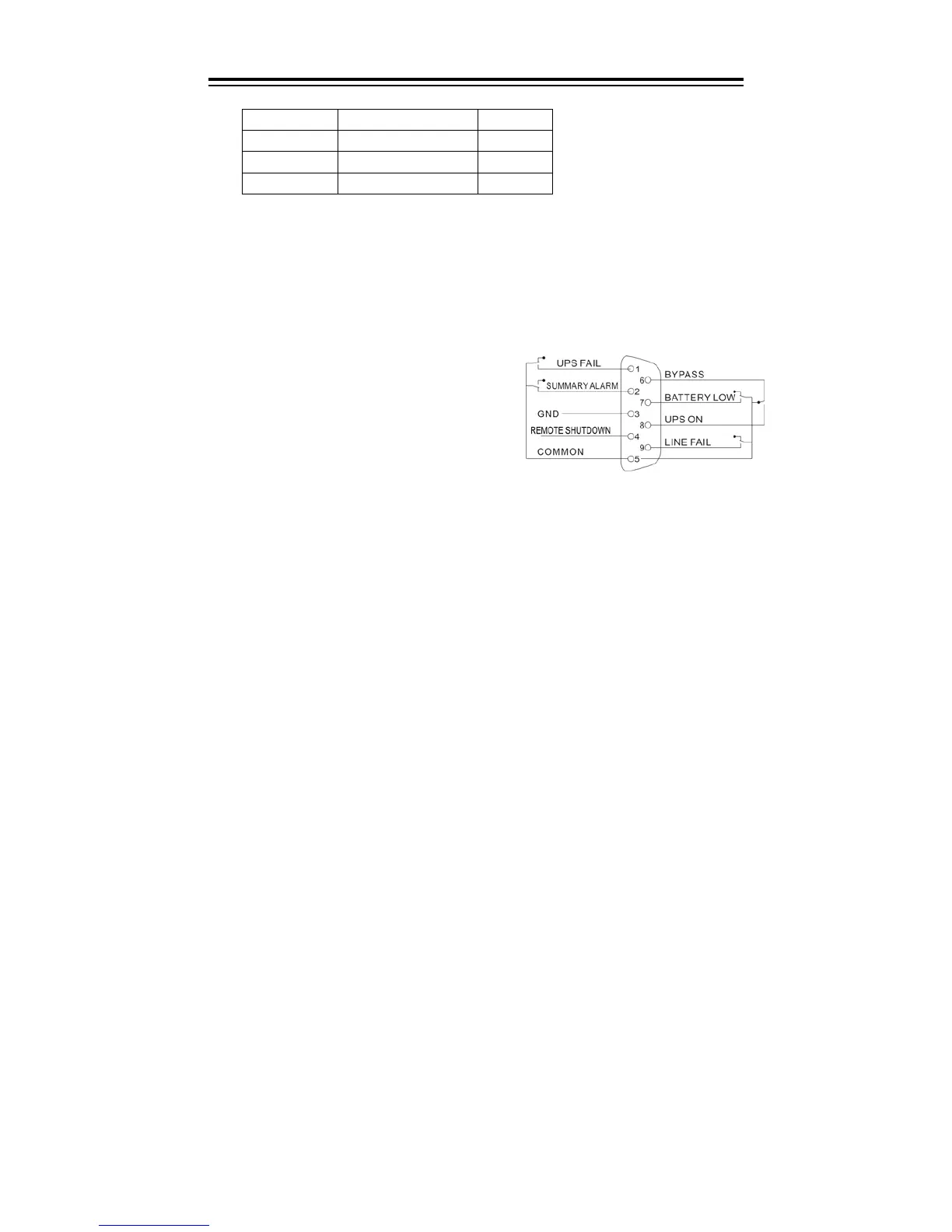

Optional AS400 interface

This optional AS400 card provides dry contact closure signal “OPEN” or “CLOSE”.

Following are the pin assignment and the descriptions of AS400 card:

PIN1: UPS failure (normally open, active close)

PIN2: summary alarm

PIN3: ground

PIN4: Remote shutdown

PIN5: Common

PIN6: Bypass active (relay close)

PIN7: Battery low

PIN8: UPS On (relay close)

PIN9: Utility Power failure (normally open, active close)

AS400 Interface
