I.B. 32-255-1G

Effective 12/02 Supersedes I.B. 32-255-1F dated January 2000

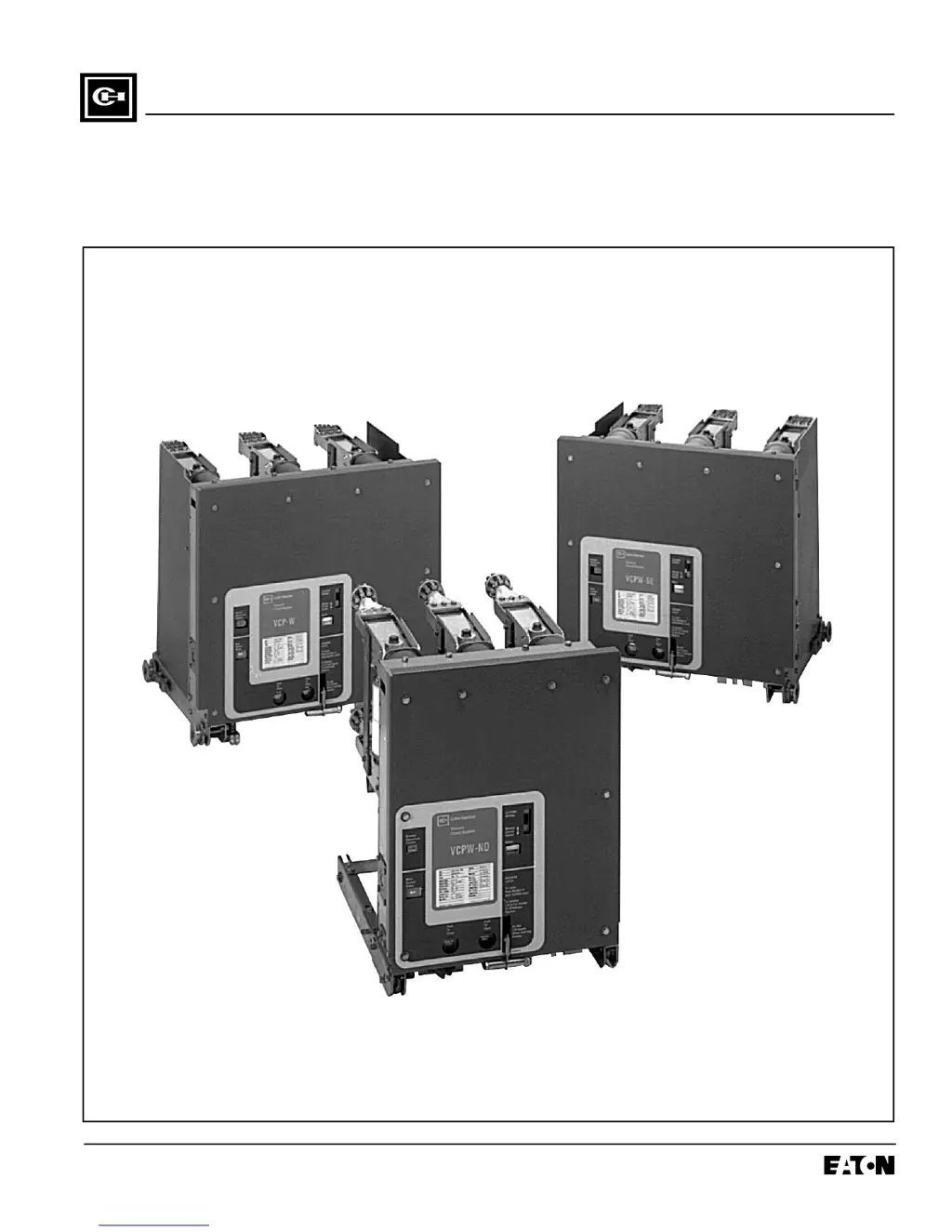

Cutler-Hammer

Instructions for Installation, Operation and Maintenance

of Type VCP-W Vacuum Circuit Breakers

Table of Contents

Questions and Answers

C
Christy JamesAug 9, 2025
Why does my Eaton Power Tool undesirably trip?
- B
  boylemichaelAug 9, 2025
  Your Eaton Power Tool might be undesirably tripping due to several reasons: * The Trip Coil Clapper might not be resetting properly. * There could be poor engagement or worn surfaces on the Trip Bar or Trip Latch. * The Trip Bar Reset Spring may have lost torque.
S
Steven VasquezAug 25, 2025
What to do if Eaton Power Tool fails to trip?
- T
  tina44Aug 25, 2025
  If your Eaton Power Tool fails to trip, check the following components: * Trip Bar and Trip Latch for jamming. * Pole Shaft for jamming. * Operating Rod Assembly for breakage or loose pins.

Eaton 50VCPW-ND250 Specifications

General

Voltage Rating	15 kV
Voltage	15 kV
Poles	3
Rated Voltage	15 kV
Interrupting Medium	Vacuum
Mechanical Life	10, 000 operations
Type	Vacuum Circuit Breaker
