2. Presentation

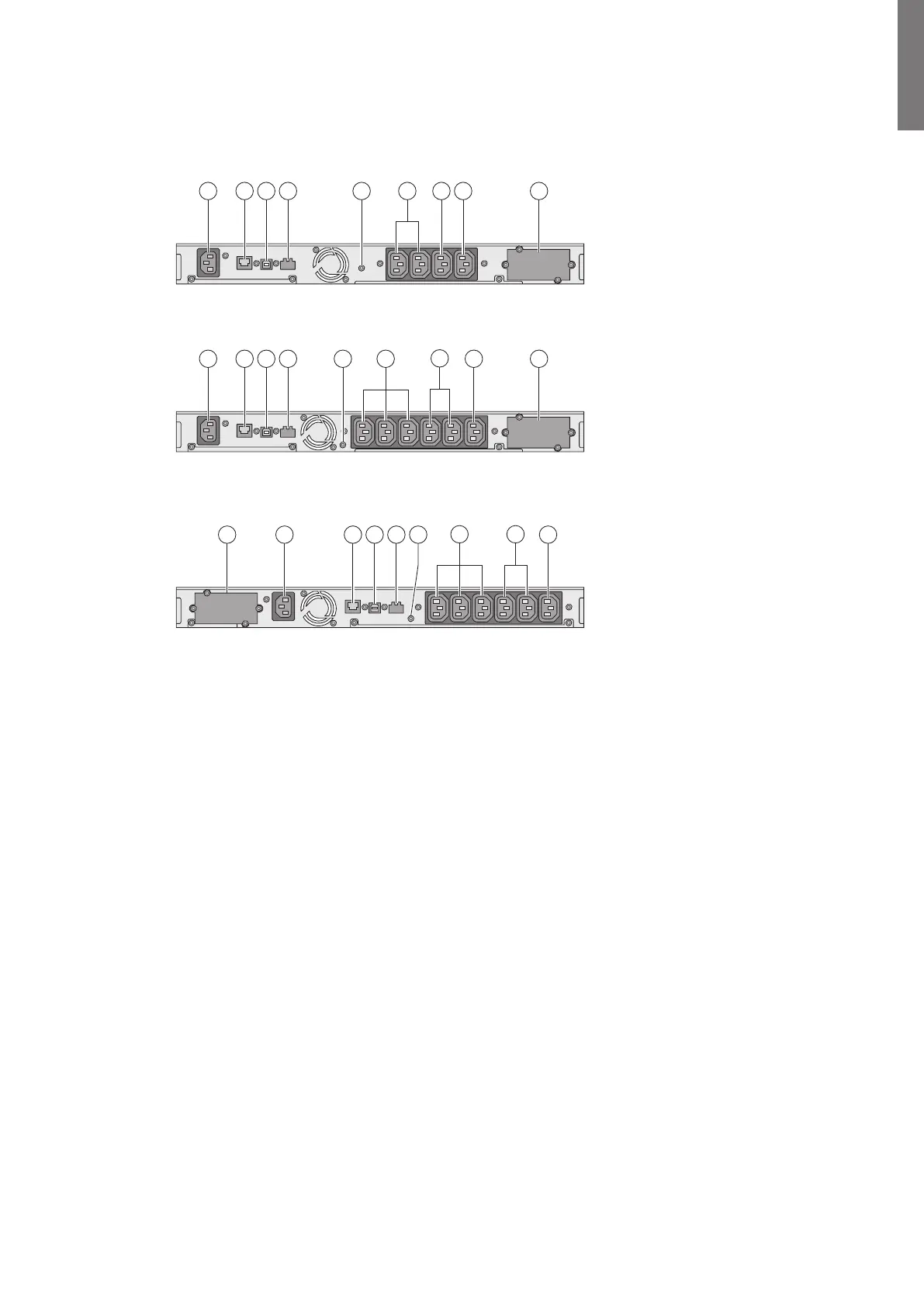

2.3 Rack rear panels
5P 650i R / 5P 850i R
2 1 4 87 36a 6b5
5P 1150i R
6a
2 1 4 87 36b5
5P 1550i R
6a
2 1 4 873 6b
5
(1) USB communication port
(2) RS232 communication port
(3) Slot for optional communication card
(4) Connector for ROO (remote ON/OFF)
or RPO (Remote Power Off) control
(5) Outlets for connection of critical
equipment (Primary group)
(6a) Group 1: programmable outlets for
connection of equipment
(6b) Group 2: programmable outlets for
connection of equipment
(7) Socket for connection to AC-power
source
(8) Ground screw
