36 EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017
Assembly

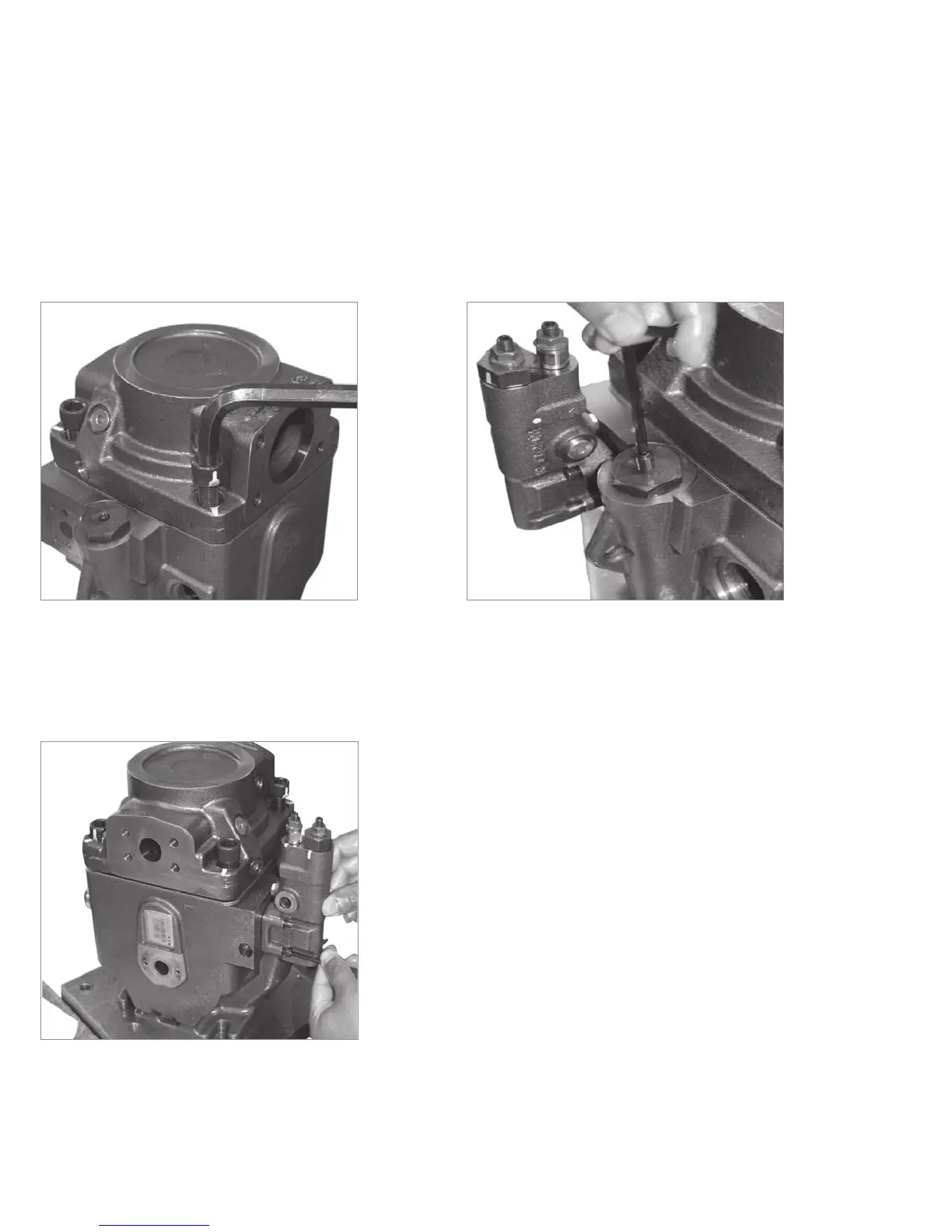

18. Remove swash plate locator tool and hold
down plug. Install control piston plug assembly.
17. Install compensator
16. Install end cover and cap sleeve
Note: Ensure correct orientation. Use caution
so that valve plate does not fall off.
19. Testing
Perform functional test on
pump according to Eaton
test procedure. Contact your
area sales manager for more
information.
