Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01 13

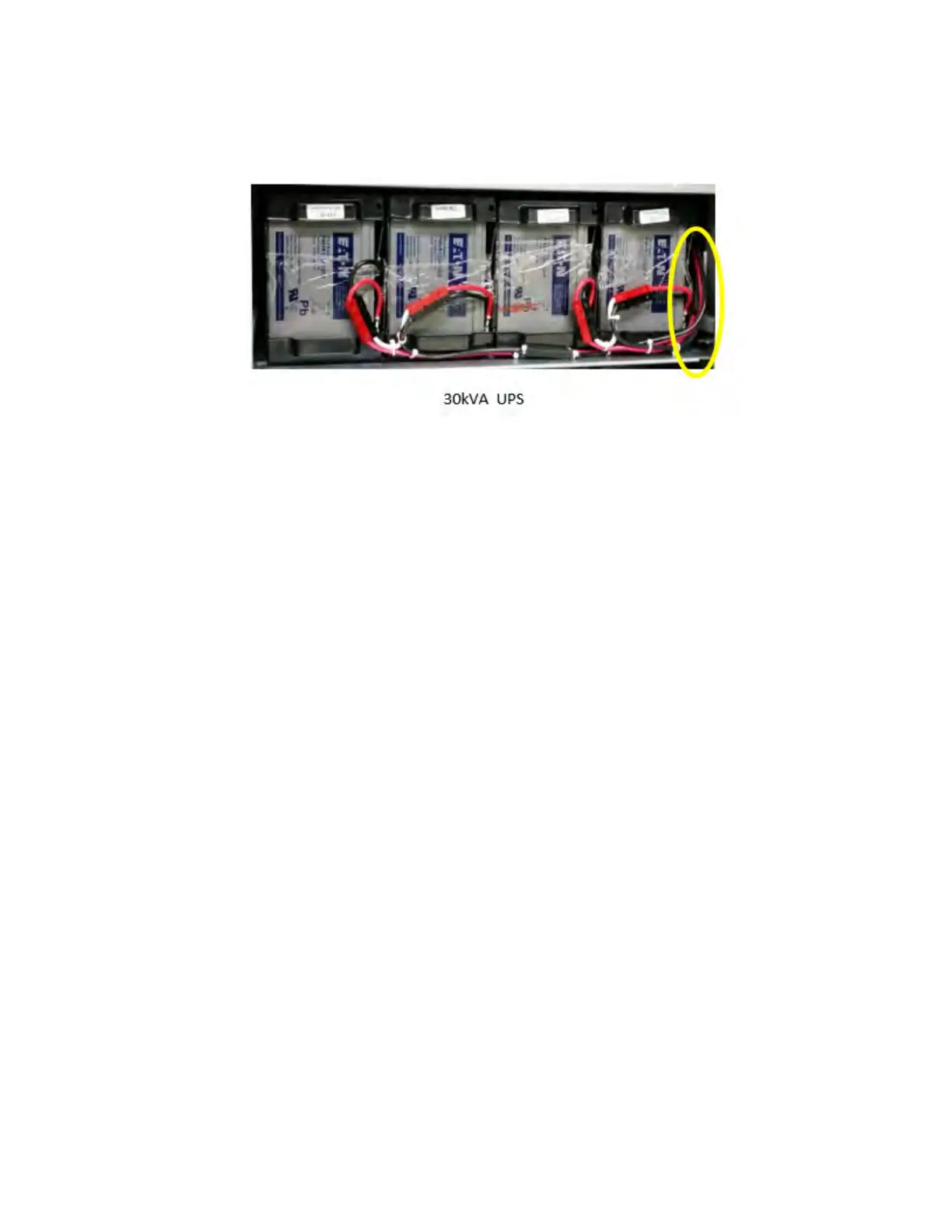

Figure 13. Eaton 93E 30 kVA UPS — Battery Shelf Cabling Clean Up
b. Leave some stress relief for installing the battery dead front panel
c. Use tie wraps to help secure the battery harness
d. Press the battery harness as close to the batteries and next to the battery shelf (the red mark on
the battery is an example for the CSE to use as an example noting the shipping bracket lower
edge on the dead front panel)
e. Form the battery cables as close to the batteries and the shelf as possible
Use tie wraps as needed
• 60 kVA
a. Shelf 1 wire forming is different. Push most of the harness between the battery and the UPS
frame. Use tie wraps and tie wrap mounting pads as needed to anchor the battery harness to
ensure it is not touching the battery fuse nor the side frame of the UPS. (Gen 3 UPS are shipped
with tie wrap mounting pads)
