14 Battery Upgrade Instructions for 93E (20–60 kVA) P-164000967—Rev 01

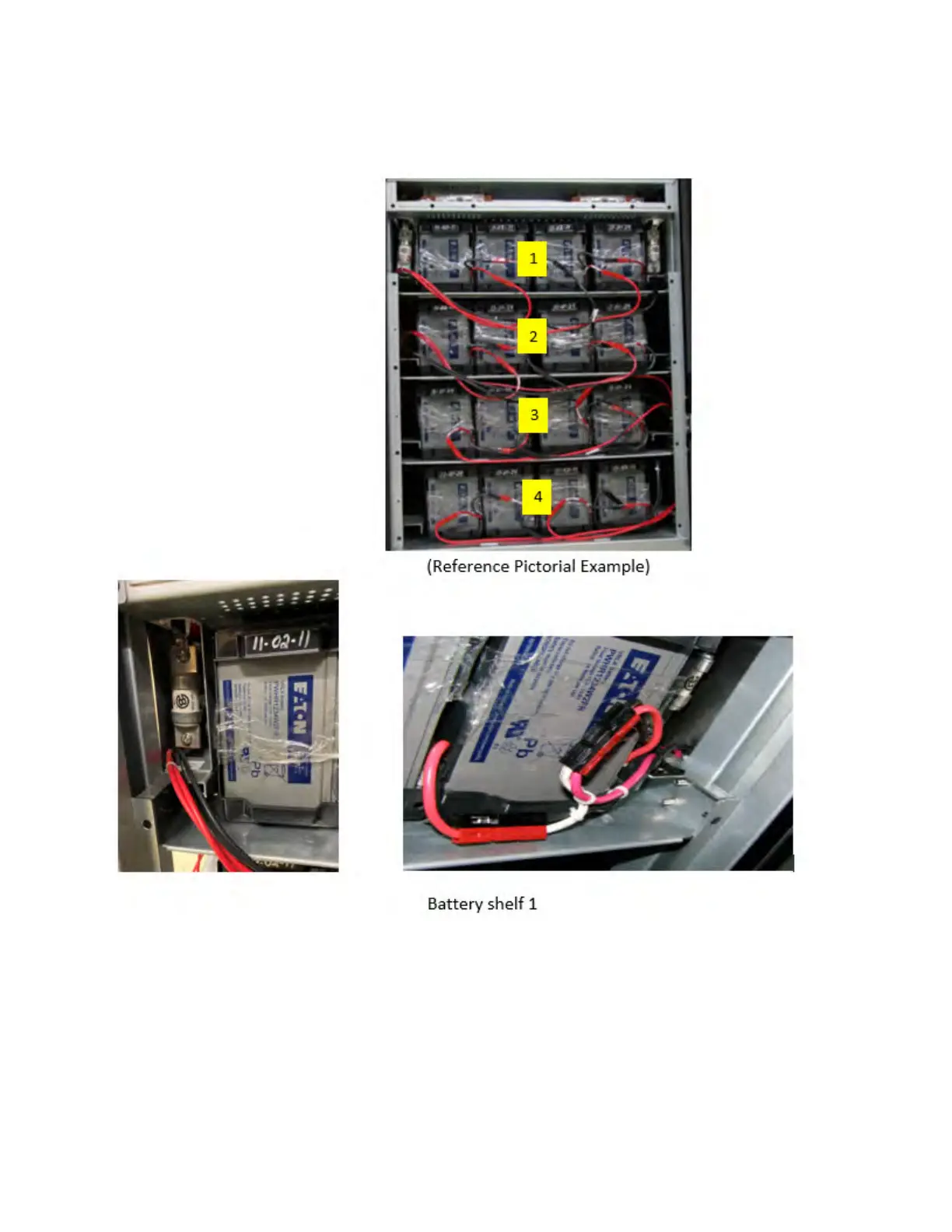

Figure 14. Eaton 93E 60 kVA UPS — Battery Shelf Cabling Clean Up
Leave some stress relief for installing the battery dead front panel
b. Repeat step “a” for the remaining battery shelves
c. Press the battery harness as close to the batteries and next to the battery shelf (the red mark on
the battery is an example [30 kVA] picture for the CSE to use as an example noting the shipping
bracket lower edge on the dead front panel)
d. Form the battery cables as close to the batteries and the shelf as possible
Use tie wraps as needed
