UPS Operating Instructions
6-6 Eaton 93E UPS (300/400 kVA, 380/400/415V) Installation and Operation Manual
6.2.4 Using the Menu
The UPS menu bar allows you to display data in the information area to help you monitor and control UPS
operation. Table 6-2 shows the basic menu structure.
Table 6-2. Display Function Menu Map
Menu Option Description
METERS Displays performance meters for the system or critical load.
EVENTS Displays the list of Active System Events.
HISTORY Displays a historical log of system events.
CONTROLS Displays the System Control screen.
SETUP Allows you to set the date and time for the time stamp, set the display language, the unit name, and
meter subscripts, change the password, and view the firmware version numbers.
ESC Returns to Main Menu and Mimic screen from the Meters, Events, History, Controls, or Setup
screens. Returns to the main System Setup Level screen from a setup submenu.
Return arrow acknowledges or executes a command, or saves a setting.
Up and down arrows scroll through screens and lists or highlight settings.
Left and right arrows select or adjust settings displayed on the screen.
6.2.5 Mimic Screen
Figure 6-5 shows the Main Menu and Mimic screen. To select the Mimic screen from the Meters, Events,
History, Controls, or Setup screens, press the ESC pushbutton on the current menu bar.
The Mimic screen shows the internal components of the UPS cabinet and a real-time graphical representation
of the operating status of the system.

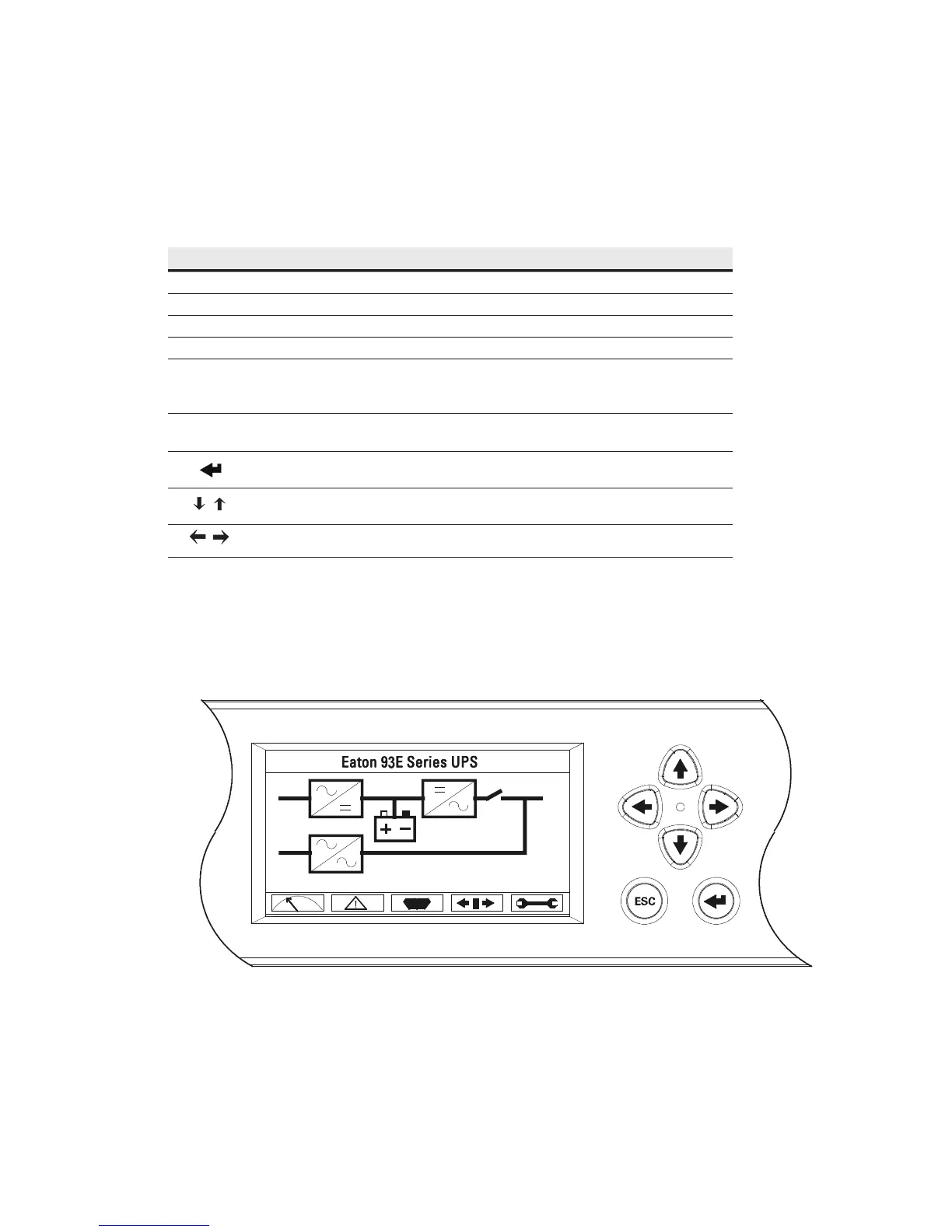

Figure 6-5. Main Menu and Mimic Screen
