Eaton 93E UPS (300/400 kVA, 380/400/415V) Installation and Operation Manual 6-9
Figure 6-6. Typical Initial Setup Screen
6.2.7 System Controls

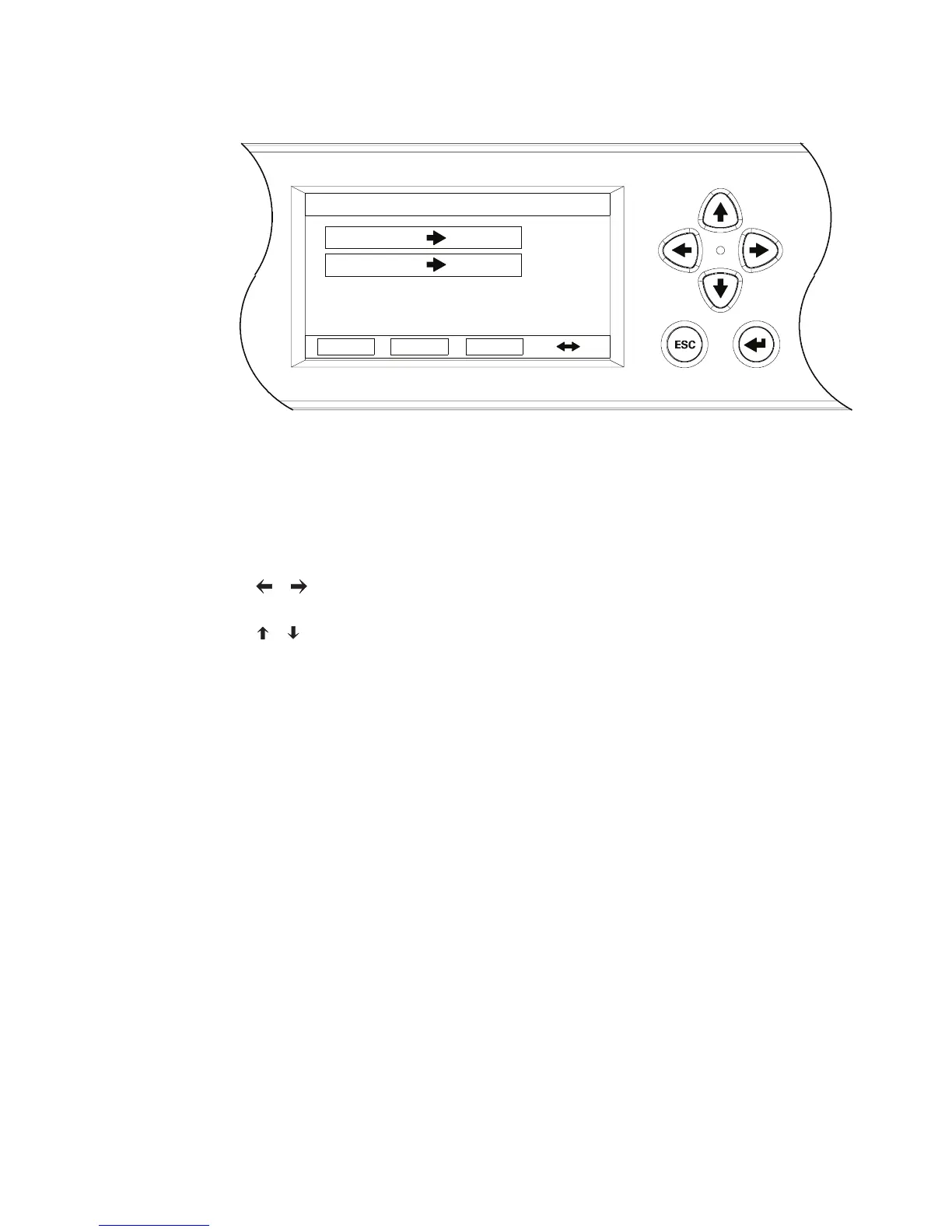

Select the CONTROLS symbol on the main menu bar, then press the RETURN pushbutton to display the
Controls screen. Normal operation, transfer to bypass, load off, and charger control commands are controlled
through this screen. In addition, the screen displays the current status of the UPS. Figure 6-7 shows the
System Control screen.
Use the or pushbutton to highlight the command screen desired, then press the RETURN pushbutton to
display the command menu screen.
Use the or pushbutton to highlight the command desired.
Table 6-4 describes the control functions and provides instructions to access and use the command menu
screens.
Table 6-5 lists the typical System Status Screen Messages that are displayed during UPS operation.
For detailed information about using the System Controls, see paragraph 6.3.
Status:
Status:Status:
Status:Load
LoadLoad
Load Off
OffOff
Off
Load
LoadLoad
Load Off
OffOff
Off
Load
LoadLoad
Load Off
OffOff
Off
Normal
NormalNormal
Normal
Bypas s
Bypas sBypas s
Bypas s
UPS
UPSUPS
UPSBattery
BatteryBattery
Battery UPM
UPMUPM
UPM

Eaton 93P Specifications

General

Frequency	50/60 Hz
Topology	Double Conversion Online
Form Factor	Tower
Input Voltage	208, 220, 240 VAC
Output Voltage	208, 220, 240 VAC
Efficiency	Up to 95%
Battery Type	Sealed Lead-Acid (SLA)
Typical Backup Time	Varies by load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 45°C
Humidity	0-95% non-condensing
Dimensions (HxWxD)	Varies by model
Weight	Varies by model
