13

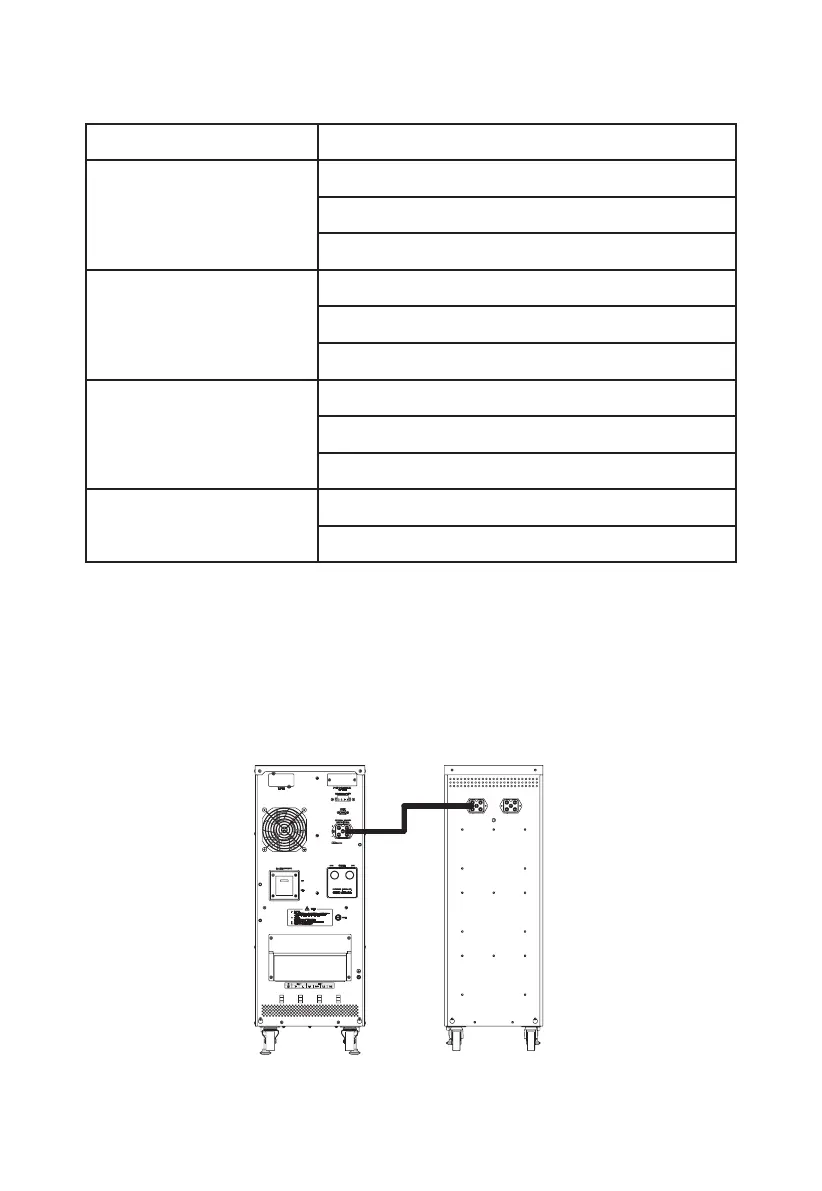

Installation of external battery: the external battery connection socket is located on the
rear panel of UPS. Please refer to the following gures for installations of standard models
and long backup time models.
A. Standard model with 1 external battery cabinet (parallel connection of 2 groups of
20 batteries, each of 12V, 7AH)
UPS Cabinet
UPS and battery congurations are as follows:
UPS Cabinet
C-6000FC
C-6000FCL
12V, 7AH, 2 groups of 20 batteries
12V, 26AH, 1 group of 20 batteries
12V, 40AH, 1 group of 20 batteries
C-6000F
C-6000FL
12V, 7AH, 2 groups of 16 batteries
12V, 26AH, 1 group of 16 batteries
12V, 40AH, 1 group of 16 batteries
C-10000F/ C-10000FL
C-10000FC/C-10000FCL
3C-10000F/3C-10000FL
12V, 7AH, 2 groups of 20 batteries
12V, 26AH, 1 groups of 20 batteries
12V, 40AH, 1 groups of 20 batteries
3C-20000FL
12V, 26AH, 1 groups of 20 batteries
12V, 40AH, 1 groups of 20 batteries
