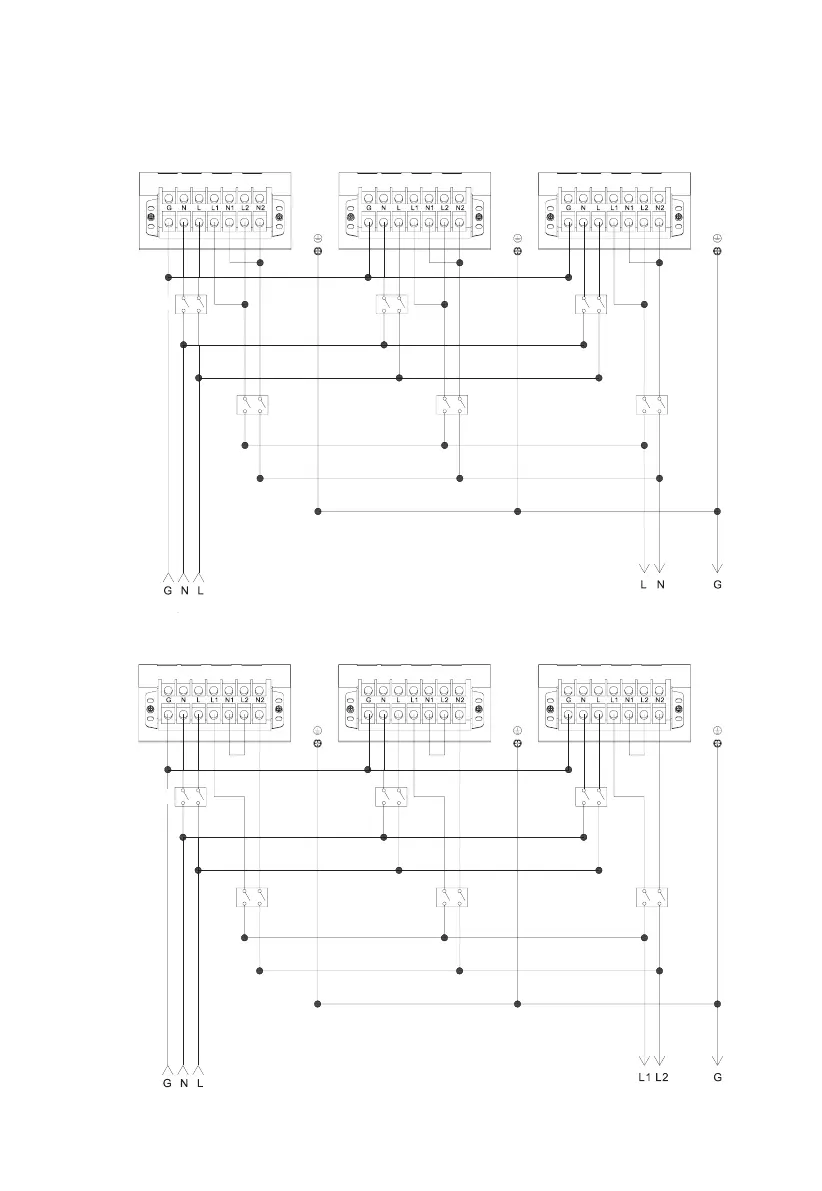

E). Wiring connection diagram of parallel UPSs (for C-6000FC/C-6000FCL/C-6000F/
C-6000FL/C-10000FC/C-10000FCL/C-10000F/C-10000FL):
1). Single phase + 2 wires: 110V
input switch input switch
input switch
output
switch
output
switch
output
switch
utility
load
2). Single phase + 2 wires: 220V
input switch
input switch
input switch
output
switch
output
switch
output
switch
utility
load
