Eaton EASY-E4 Series Instruction Leaflet

08/21 IL050020ZU
2/8

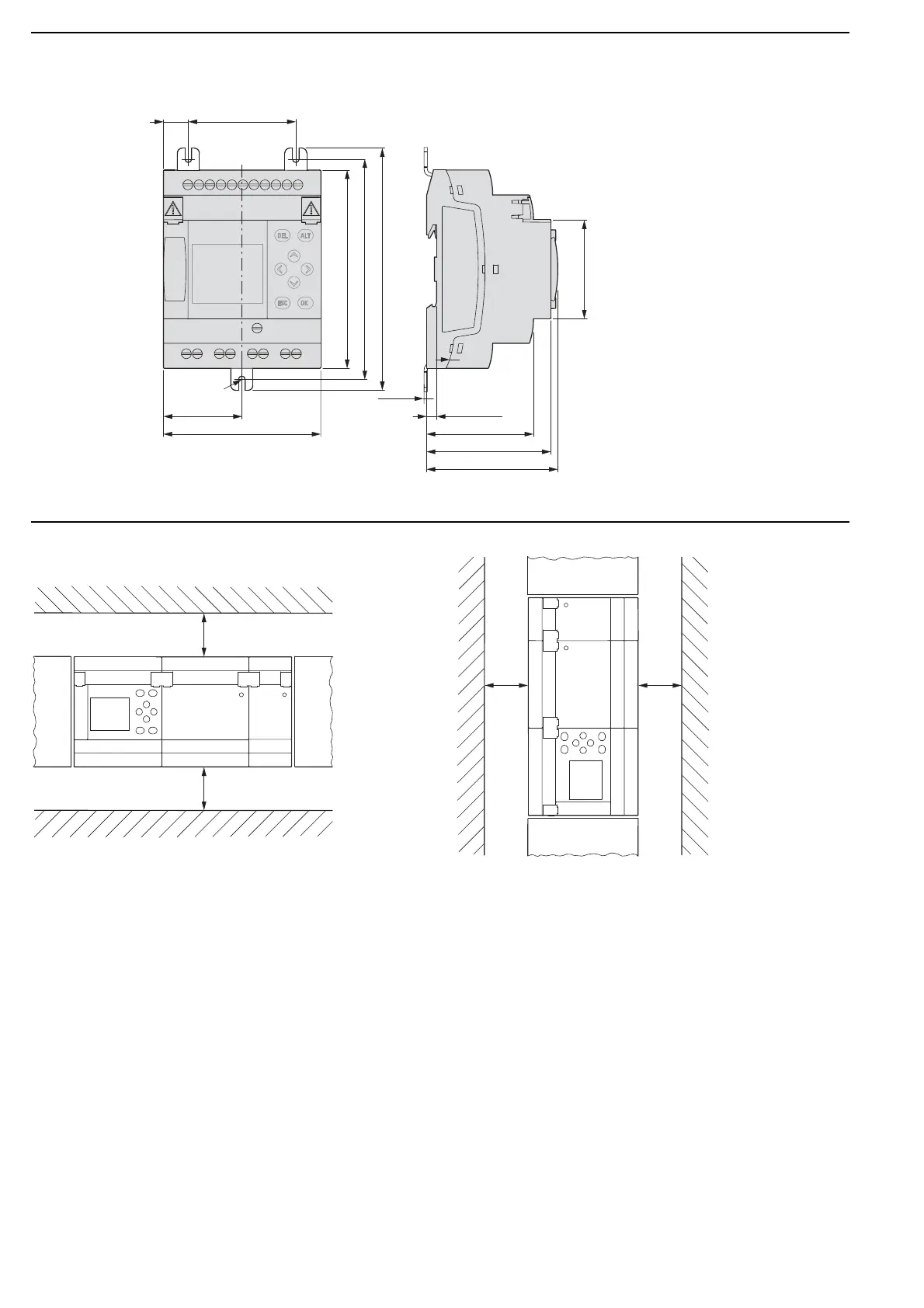

Dimensions
EASY-E4-…-12…C1(P), EASY-E4-…-12…CX1(P)
+ ZB4-101-GF1
Mounting position
45 mm (1.77")
4.5 mm (0.18")
48.5 mm (1 .91")
56.5 mm (2.22")
59.6 mm (2.35")
10.75 mm
(0.42")
35.75 mm (1.41")
71.5 mm (2.81")
90 mm (3.54")
101 mm (3.97")
111 mm (4.37")
M4,5
50 mm (1.97")
1 mm (0.04")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")
> 30 mm
(> 1.2")

Eaton EASY-E4 Series Specifications

General

Type	Programmable Relay
Digital Inputs	Up to 12
Digital Outputs	Up to 8
Display	LCD
Operating Temperature	-25°C to +55°C
Protection Degree	IP20
Storage Temperature	-40°C to +70°C
Supply Voltage	24 V DC, 100-240 V AC
Analog Inputs	4
Outputs	Relay, transistor
Programming	EASY-SOFT-PRO
Communication	Ethernet, Modbus, CANopen
Expansion	Expandable with additional modules
Relative Humidity	5% to 95% (non-condensing)
Standards	IEC/EN 61131-2, UL 508, CSA C22.2 No. 142
