Eaton EGS Series - Page 13

Eaton EGS Series
18 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
13
Instruction Booklet IB0162064EN
Effective January 2014
O & M Manual for the EGS Service
Entrance Automatic Transfer Switch
Eaton Corporation www.eatoncanada.ca

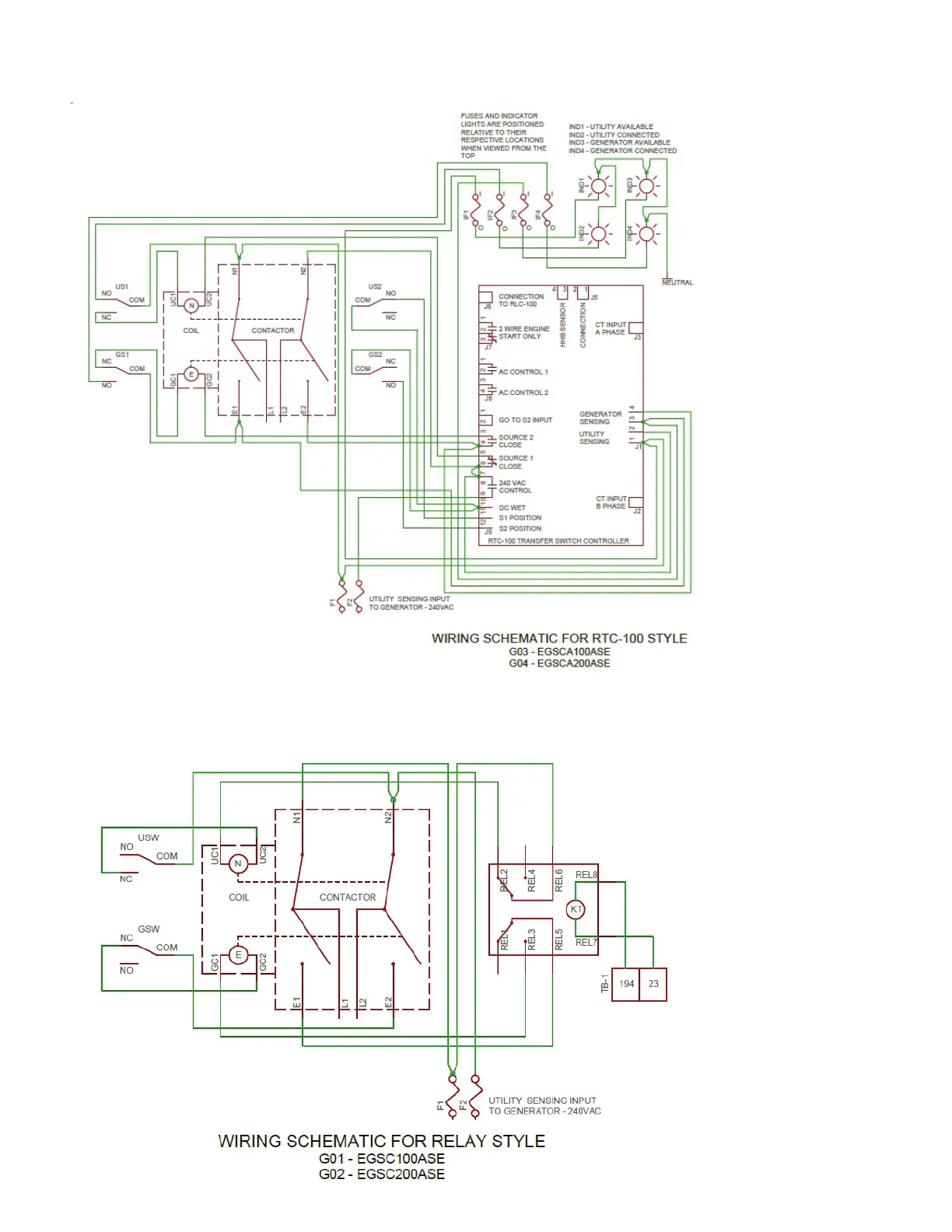

Figure 11. Wiring Diagram for the EGS ATS (Shown Connected to Normal Source 1- (N) Utility).
