- 8 -

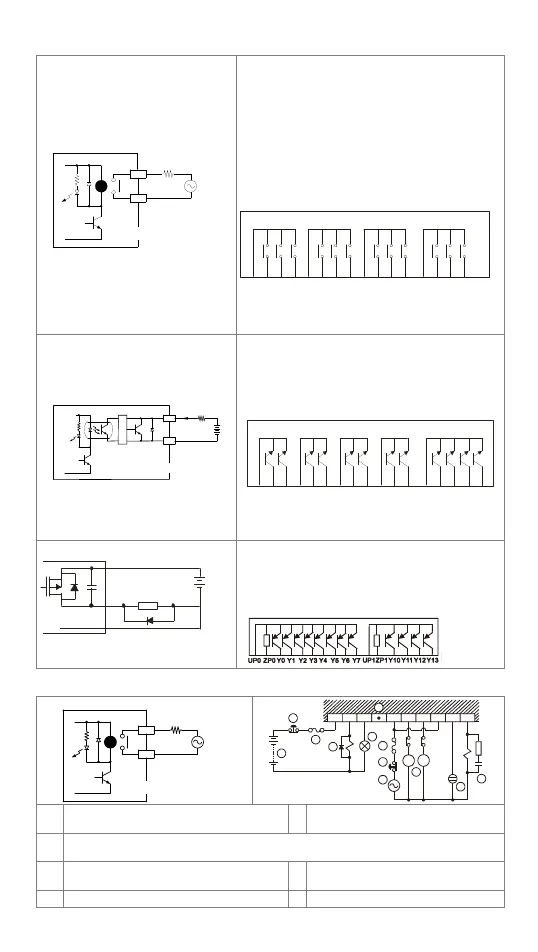

Output Point Wiring
Y0
RY
LED
C0
LOAD
POWER
ELC-**-**-**-*R
RELAY OUTPUT
1. ELC-PV/ELC2-PV series controllers have
either relay or transistor outputs. See
“Function Specifications” for their
specifications.
2. Please note the connection of shared
terminals when wiring output terminals.
3. Output terminals, Y0, Y1, and Y2, of relay
models use C0 common port; Y3, Y4, and
Y5 use C1 common port; Y6, Y7, and Y10
use C2 common port; Y11, Y12, and Y13
use C3 common port, as shown below.
C0 Y0 Y1 Y2 C1 Y3 Y4 Y5 C2 Y6 Y7 Y10 C3 Y11Y12 Y13
When output points are enabled, their
corresponding indicators on the front panel
will be on.
ELC-**-**-**-*T
TRANSISTOR OUTPUT
LED
Y0
C0
LOAD
< 0.3A
T
R
G
4. Output terminals, Y0 and Y1, of transistor
models use C0 common port; Y2 and Y3 use
C1 common port; Y4 and Y5 use C2
common port; Y6 and Y7 use C3 common
port; Y10, Y11, Y12 and Y13 use C4
common port, as shown below.
C0 Y0 Y1 C4 Y10 Y11 Y 12C1 Y2 Y3 C2 Y4 Y5 C3 Y6 Y7 Y13
5. Isolation circuit: The optical coupler is used
to isolate signals between the circuit inside
ELC and input modules.
VDC
+
D
Y
UP
ZP
D: 1 N40 01 di od e or equiva le nt co mpo nent
Smaller power
6. The output terminals Y0~Y7 on the transistor
(PNP) model are connected to the common
terminals UP0 and ZP0. Y10~Y13 are
connected to the common terminals UP1
and ZP1, as shown below.
Relay (R) Contact Circuit Wiring
Y0
RY
LED
C0
LOAD
POWER
ELC-**-**-**-*R
RELAY
2
3
1
5
C0 Y0 Y1 C1 Y3 Y4
C2
Y6 Y7
4
MC1
MC2
7
10
3
2
8
9
6
R
C
Flywheel diode (SB360 3A 60V): To
extend the life span of contact
Emergency stop: Uses external
switch
Fuse: Uses 5 ~ 10A fuse at the common port of output contacts to protect the
output circuit.
Varistor: To reduce the interference on
AC load (R=100~120, C=0.1~0.2uF)
Empty terminal: not in use
DC power supply
Neon indicator
To Next Page
