4 Short-circuit / motor protection
4.2 Motor protection
EMS2… Electronic motor starter 10/19 MN034003EN www.eaton.com 29
4.2.3 Conditions when setting the motor protection
Ensure that the following conditions are met when setting the motor protec-
tion or when displaying the set value:
• The device is supplied with voltage.
• There are no errors.
• There is no start signal on the terminals ON, L or R.
4.2.4 Setting of the motor protection

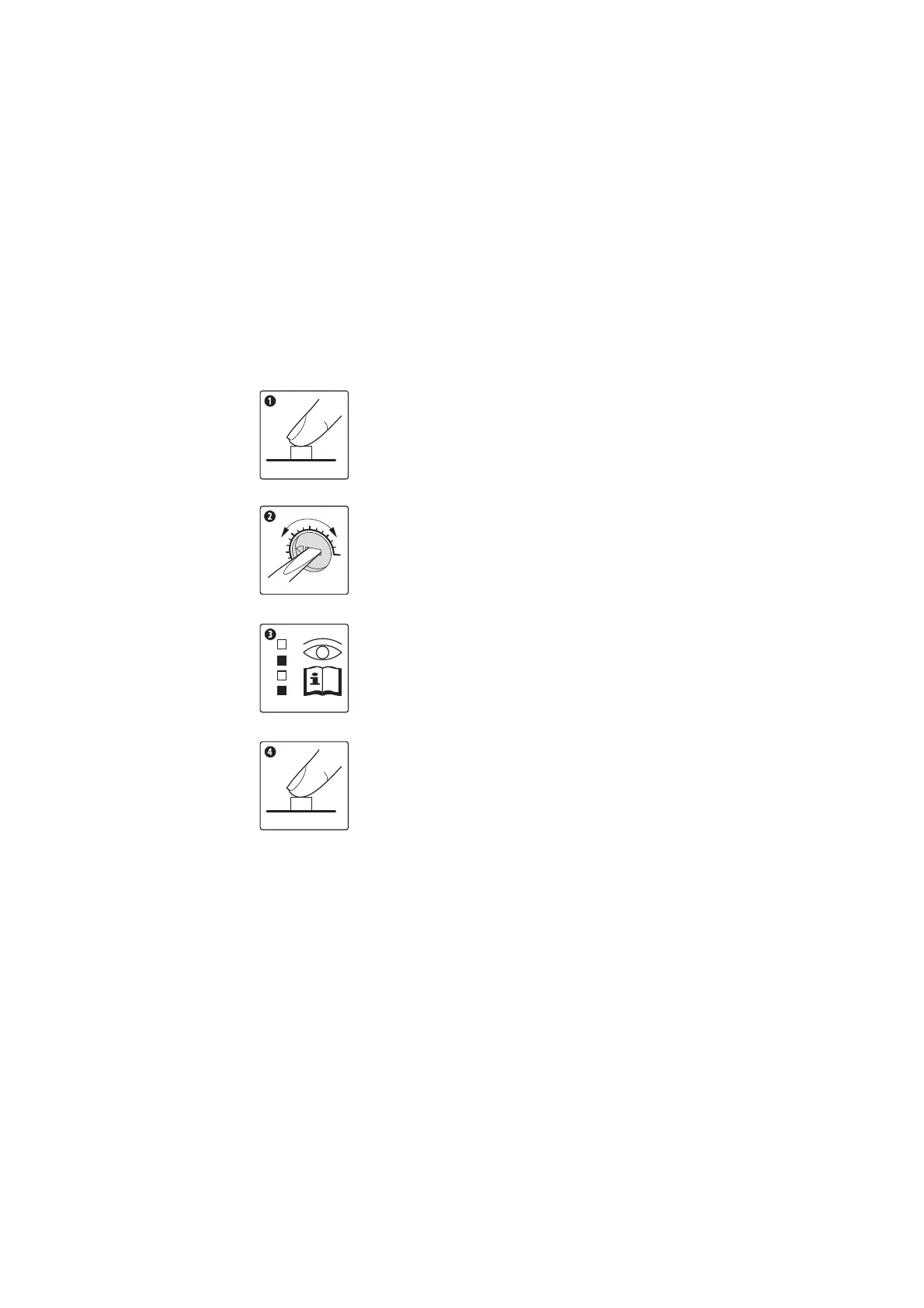

Activating parameterization mode
▶ Press the RESET button for at least 6 seconds.
→ The green PWR LED flashes once.
Setting the motor rated current
▶ Turn the potentiometer to the desired value.
Checking the value on the LEDs
▶
Compare the set value with that which is displayed on the
LEDs (￫ table 10, page 30).
Leaving parameterization mode
▶ Press the RESET button.
Press 6 sec
I
e
or QR code
Press > 1 sec
