ote:N The Form 4D control only displays Line-to-Neutral
voltages regardless of the system connection.
Refer to Service Information S280-104-2 Form 4D
Microprocessor-Based Recloser Control Programming Guide
for additional information.

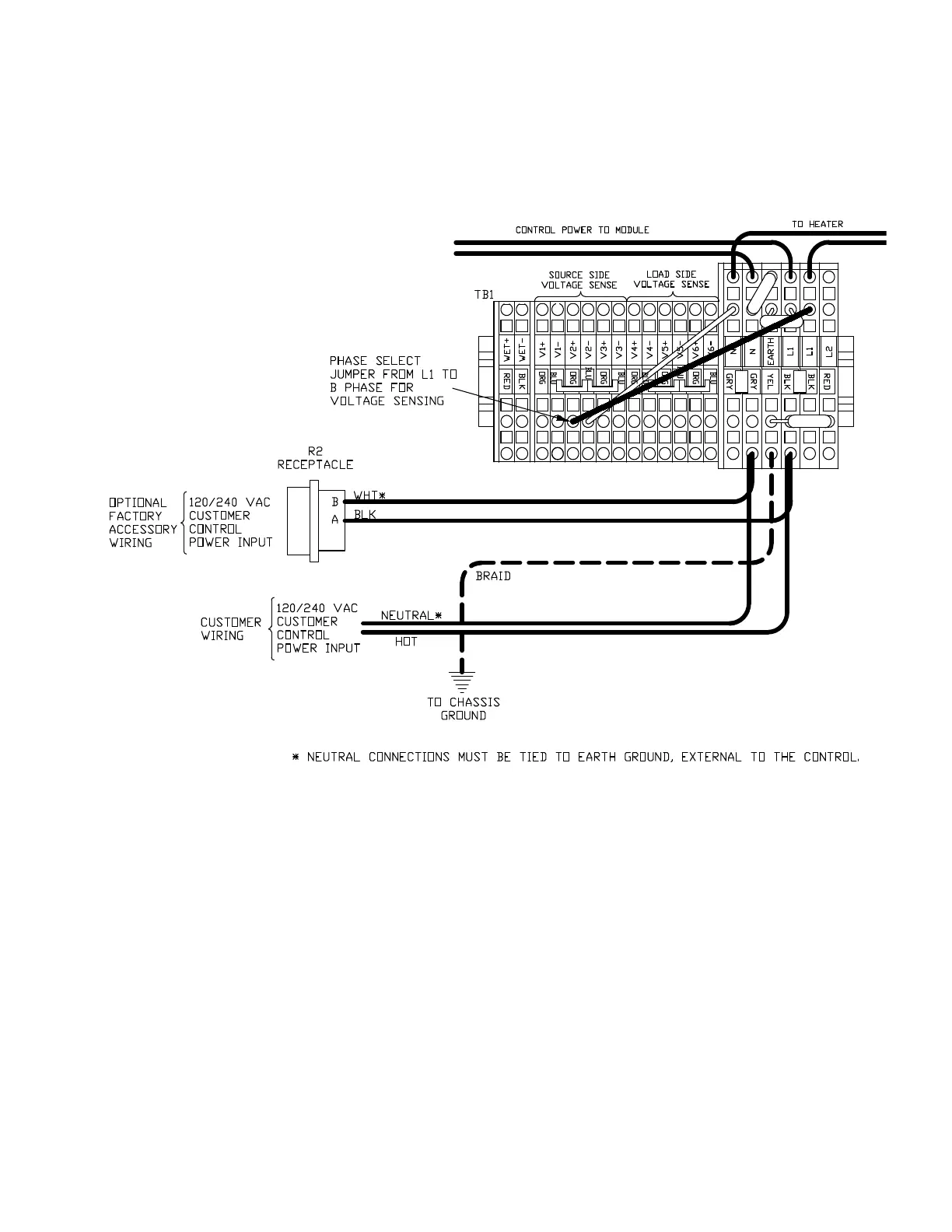

Figure 14. 120 or 240 VAC 2-wire control power input (shown with default factory wiring connected to B-phase
voltage metering with B-phase incoming supply)
19OPERATION INSTRUCTIONS MN280049EN September 2017
Form 4D Microprocessor-based pole-mount recloser control installation and operation instructions
