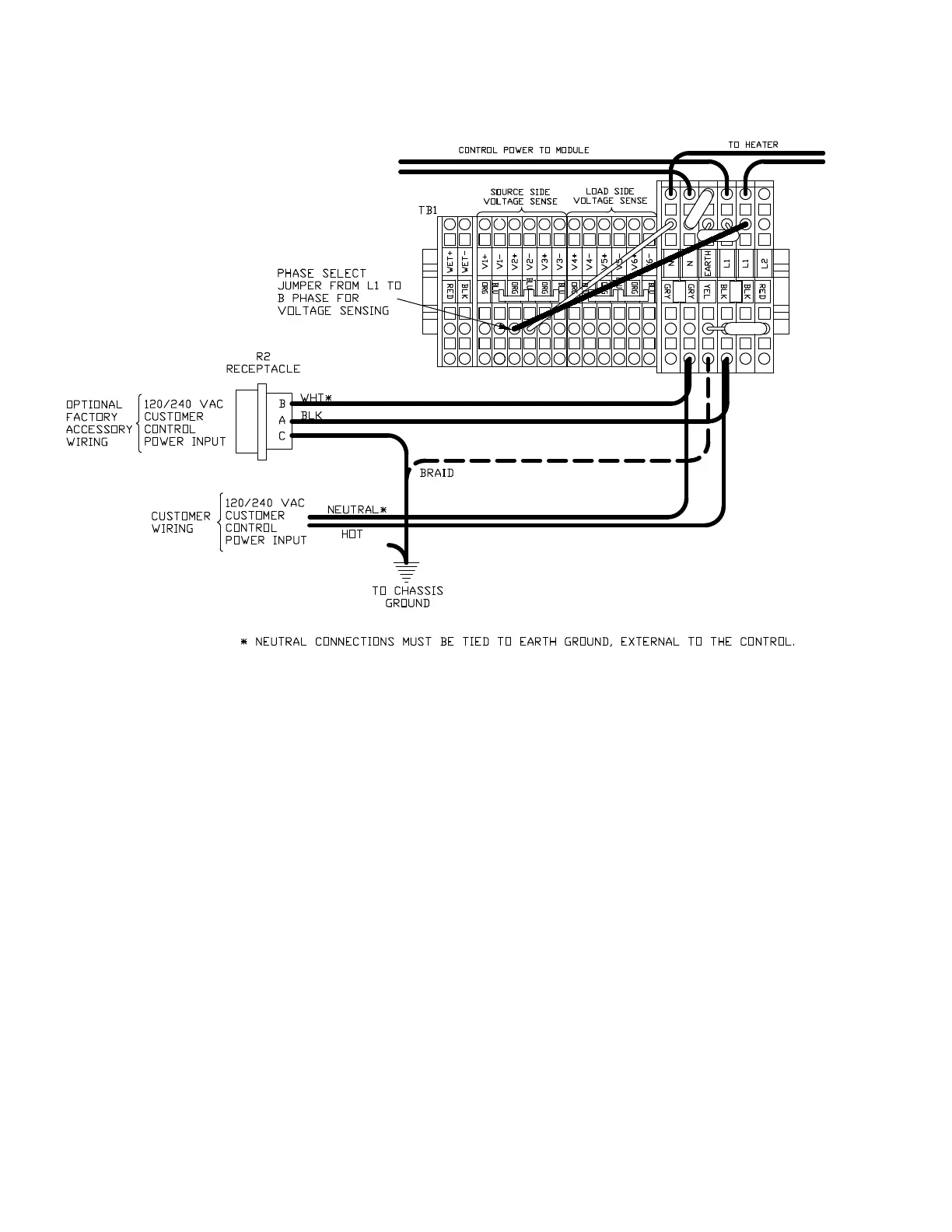

Figure 15. 120 or 240 VAC 2-wire with ground control power input (shown with default factory wiring connected to
B-phase voltage metering with B-phase incoming supply)
20 OPERATION INSTRUCTIONS MN280049EN September 2017
Form 4D Microprocessor-based pole-mount recloser control installation and operation instructions
