Control
Logic
Optical
Isolation
Relay
Normally CLOSED
OUTPUT 3
INPUT 4
Normally OPEN
OUTPUT 4
OUTPUT 1
OUTPUT 2
INPUT 1
INPUT 2
INPUT 3
Pin 9
Pin 2
Pin 10
Pin 11
Pin 12
Pin 13
Pin 1
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Common
Normally OPEN
Normally OPEN
Normally OPEN
Normally CLOSED
Normally CLOSED
Normally CLOSED
Pin 14
Whetting
Voltage
Motor Fuse
Auto-Off-Manual
Switch in the
Auto/Remote Position
V
Source
120 V from
Internal or External
Single-Row 14-Pin
Connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Panel
Power

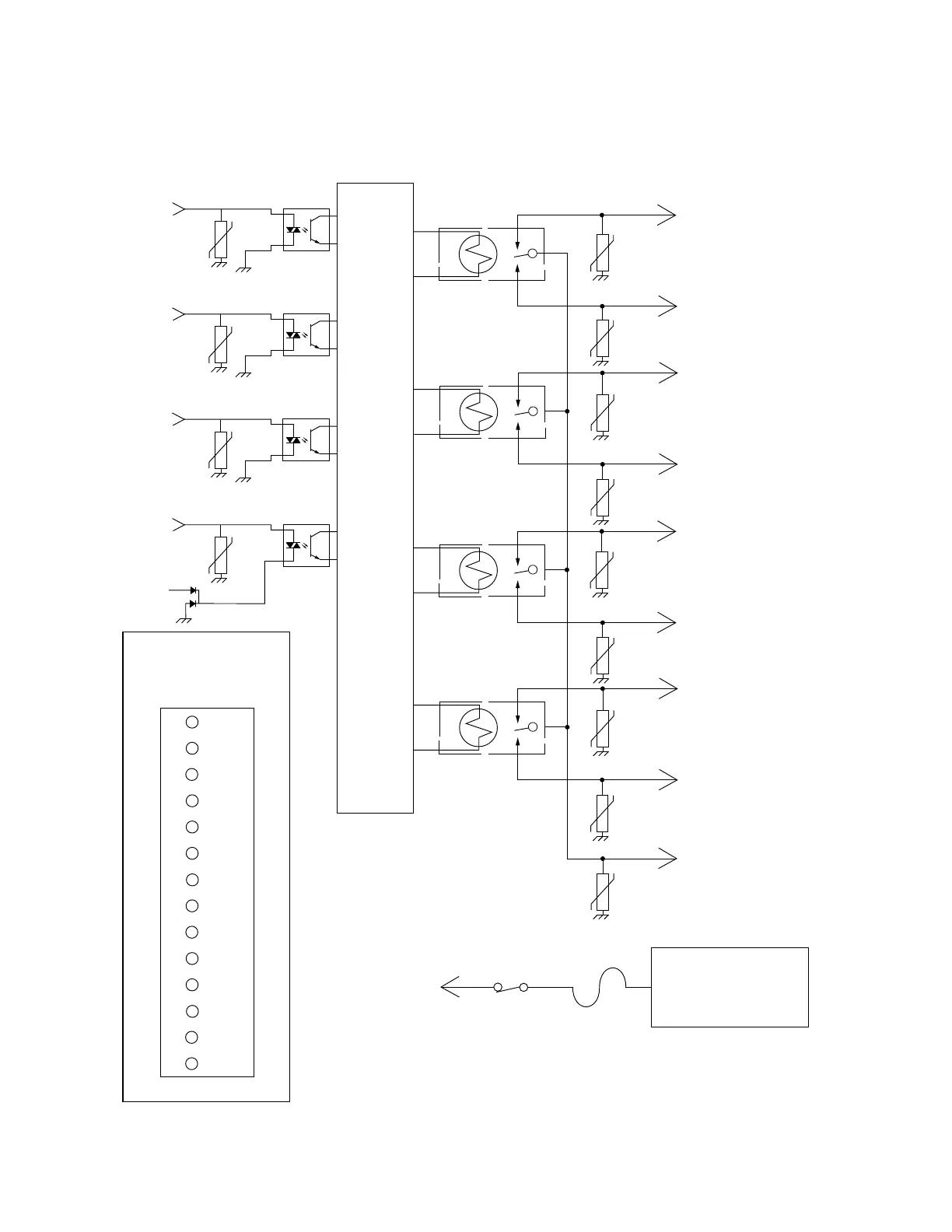

Figure 7-7. Discrete I/O connections.
98
CL-6 SERIES CONTROL INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225016EN January 2016
