Installation procedure
36 CBC-8000 capacitor bank control installation and operation instructions MN916001EN—October 2018 Eaton.com
10. Use a cable tie to secure the two cables that are
connected to the SelectComm module as shown in
Figure 41.
11. Apply power to the control to verify that the radio
modem powers up.
12. The radio modem must be configured to communicate
with the control using the setup procedure that was
provided by the radio modem manufacturer.
13. When the work is completed, place the control in
Remote or Automatic mode by pressing the REMOTE or
AUTO button.
14. Close the door of the control.
15. Secure the latches.

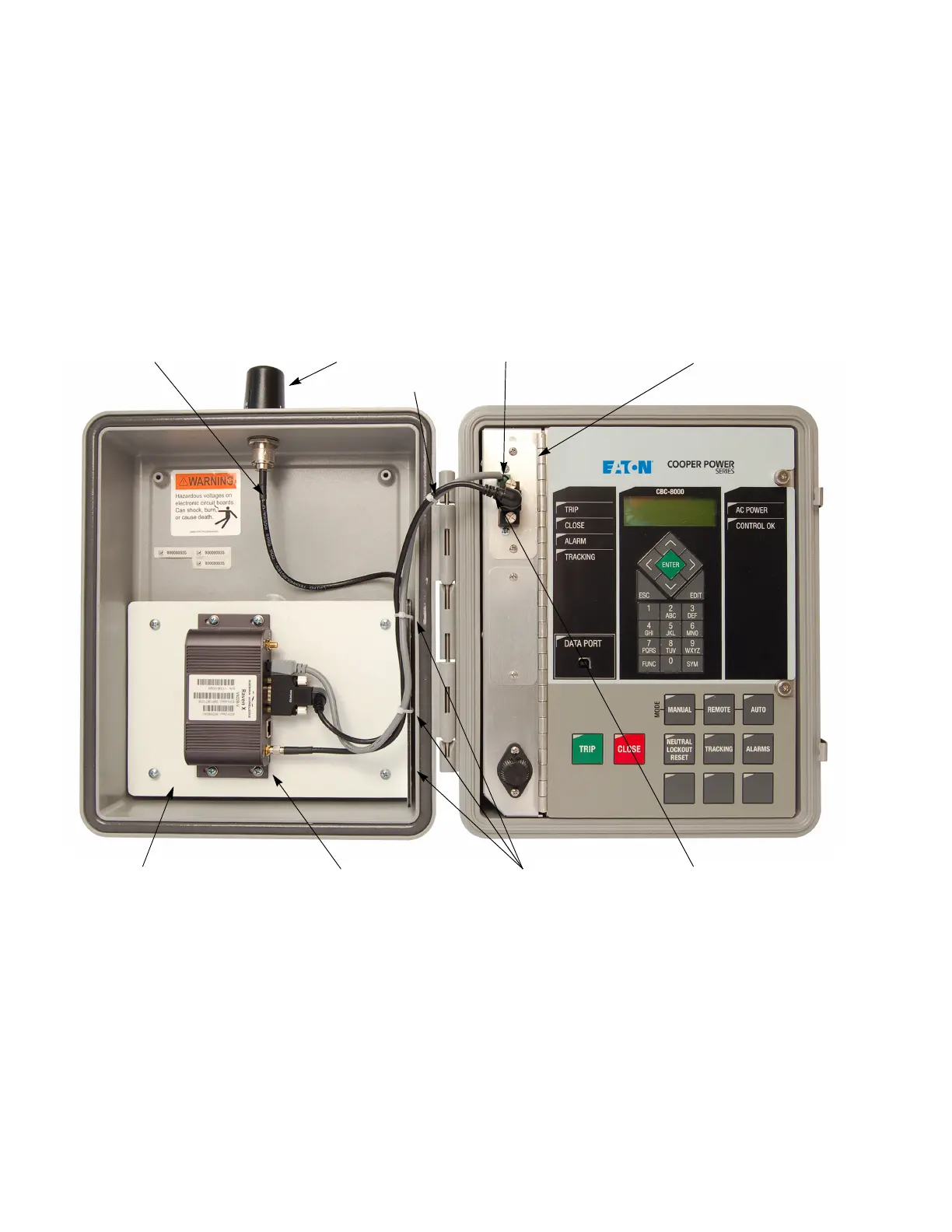

Figure 41. CBC-8000 with radio modem installed.
Secure Cable Point
Antenna Cable Radio Modem Power Cable SelectComm Module
Radio ModemDocument Holder
Communication Cable
Antenna
Cable Tie Down Points
