1KA369R, KA542R, AND KA57WE AUXILIARY SWITCH KIT INSTALLATION AND ADJUSTMENT INSTRUCTIONS MN280031EN
Product information
Introduction
Service Information MN280031EN provides installation
and adjustment instructions for KA369R, KA542R, and
KA57WE auxiliary switch kits for Eaton’s Cooper Power™
series recloser products. Carefully read and understand the
contents of this manual.
Read this manual first
Read and understand the contents of this manual and follow
all locally approved procedures and safety practices before
installing or operating this equipment.
Additional information
These instructions cannot cover all details or vari ations
in the equipment, procedures, or process described, nor
provide directions for meeting every possible contin gency
during installation, operation, or maintenance. When
additional information is desired to satisfy a problem not
cov ered sufficiently for the user’s purpose, contact your
Eaton representative.
Acceptance and initial inspection
Each kit is in good condition at the factory and when
accepted by the carrier for shipment.
Upon receipt, inspect the carton for signs of damage.
Unpack the kit(s) and inspect it thoroughly for damage
incurred during shipment. If damage is discovered, file a
claim with the carrier immediately.
Handling and storage
Be careful during handling and storage of the kit to minimize
the possibility of damage. If the kit is to be stored for any
length of time prior to installation, provide a clean, dry
storage area.
Standards
Eaton’s reclosers are designed and tested in accordance
with ANSI
®
standards C37.60 and C37.85 and ANSI
®
guideline C37.61.
Quality standards
ISO 9001certified quality management system
Description
Remote indication of the recloser contact position or
switching of other devices can be achieved when the
recloser is equipped with an auxiliary switch. The auxiliary
switch kit mounts externally on the head casting. For field
installation, the kit is shipped with a number of loose
attaching components as shown in Figure 1 and described
in Table 1.

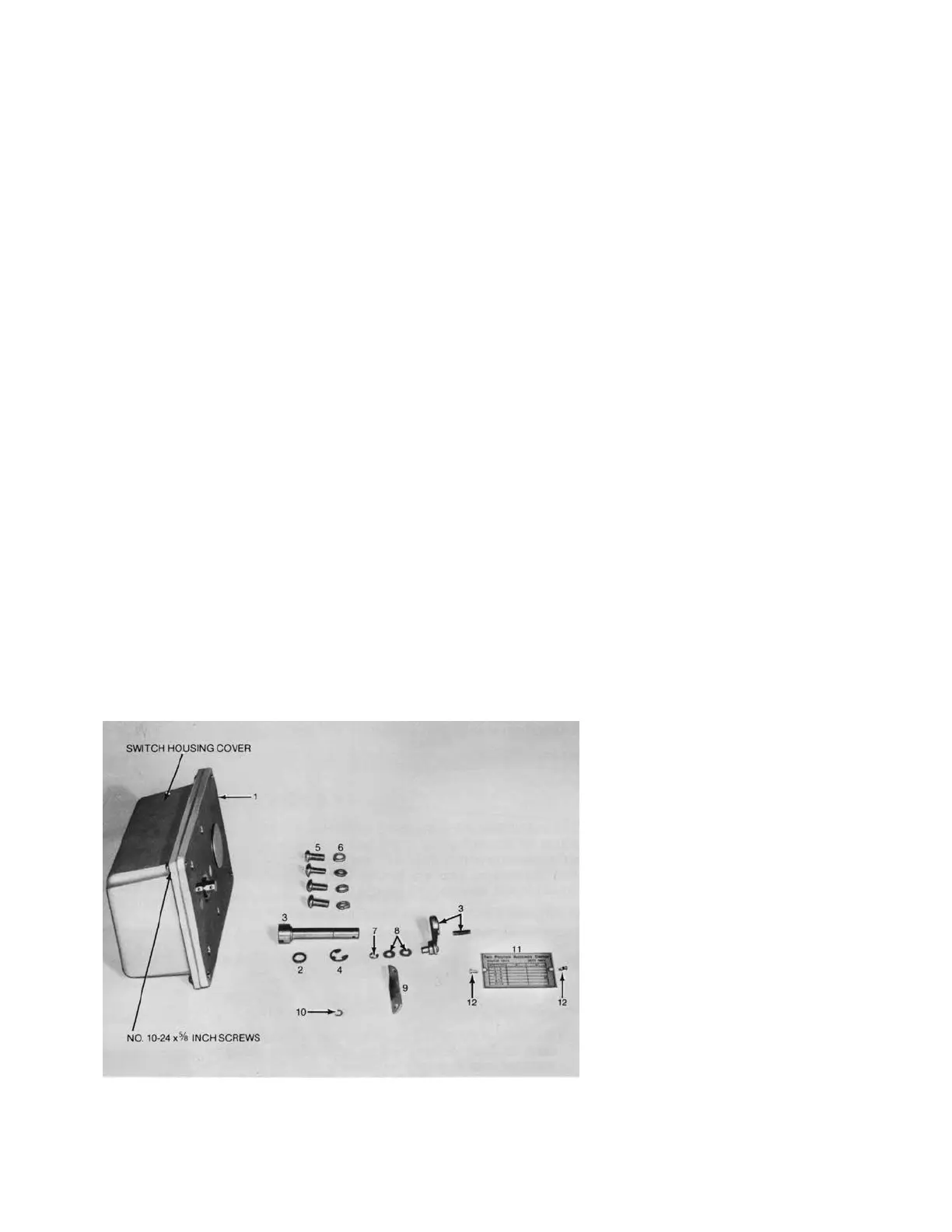

Figure 1. Auxiliary switch accessory kit.
