Eaton GridAdvisor Series II User Manual

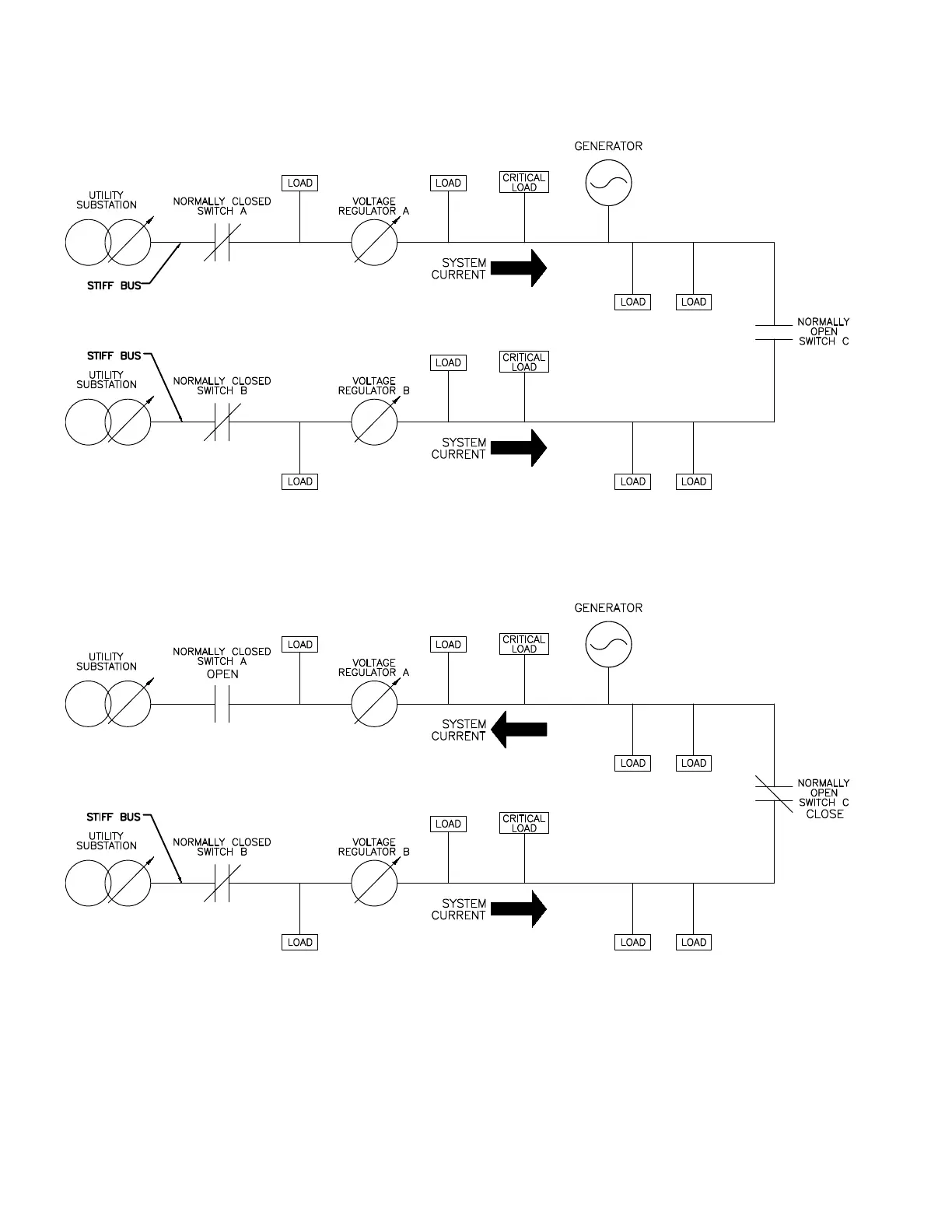

Figure34. Loop configured system with Co-Gen facility. Tie switch is open; stiff bus on the source bushings of the
regulators and true current flow from source bushing to load bushing.
Figure35. Loop configured system with Co-Gen facility. Tie switch is closed. Stiff bus on the load bushing of voltage
regulator A with true current flow from load to source. Stiff bus on the source bushing of voltage regulator B with
true current flow from source to load.
132
INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225003EN April 2018
CL-7 Voltage Regulator Control
