Eaton GridAdvisor Series II User Manual

Single-Row
18-Pin
I/O Connector
IN1-1
IN1-2
IN2-1
IN2-2
IN3-1
IN3-2
IN4-1
IN4-2
CI1
CI2
CI3
CI4
Control Supplied
Whetting Voltage
120 Vac
V9
G
Control
Logic
NO-1
COM-1
NO-2
COM-2
NO-3
COM-3
NO-4
COM-4
NC-4
NC-3
CO1
CO2
CO3
CO4
CL-7 Control Box
CL-7 Back Panel
CL-7 Control
Remote Terminal Unit (RTU)
Not All
Remote
Connections
Shown
Shield
Shield
Optical Isolation
Optical Isolation
Optical Isolation
Optical Isolation
Relay
Relay
Relay
Relay

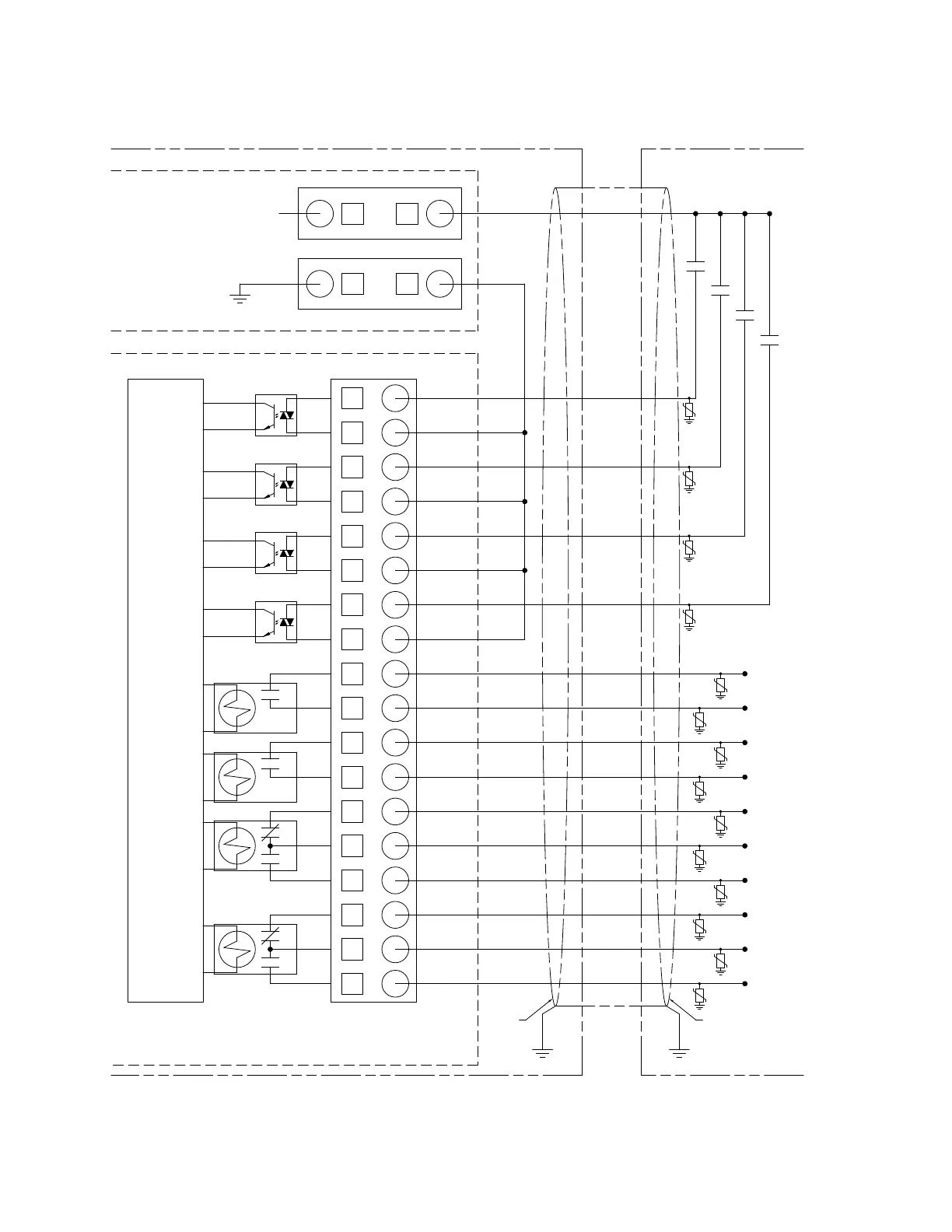

Figure 52. Customer connections to Contact I/O Module with shielding and surge protection. (I/O functionality is
customizable using the Configurable Logic tool in ProView NXG software.)
150
INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS MN225003EN April 2018
CL-7 Voltage Regulator Control
