Eaton MMX12 Series Installation Instructions

2/14 Emergency On Call Service: Local representative (http://www.moeller.net/address) or +49 (0) 180 5 223822 (de, en)
03/10 AWA8230-2416

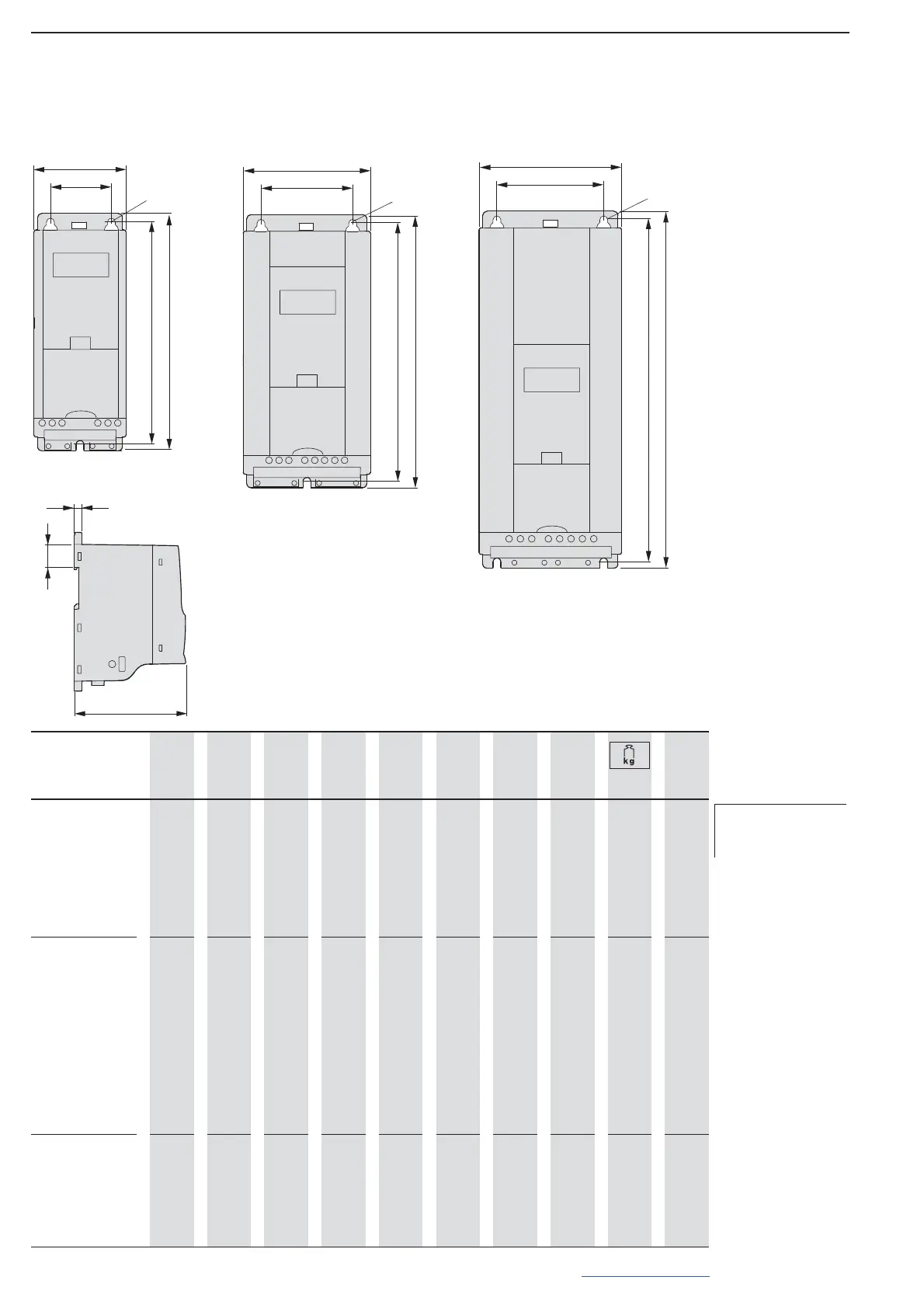

Dimensions and weights – Abmessungen und Gewichte – Encombrements et poids – Dimensiones y pesos – Dimensioni e pesi –
ሎᇌ䞡䞣
– Размеры и вес – Afmetingen en gewichten – Dimensioner og vægt – Διαστάσεις και βάρη – Dimensões e pesos –
Mått och vikter – Mitat ja painot – Rozměry a hmotnosti – Mõõdud ja kaalud – Méretek és tömeg – Izmēri un svars –
Matmenys ir masė – Wymiary i ciężary – Mere in teže – Rozmery a hmotnosti – Размери и тегло – Dimensiuni și greutăţi
FS1 FS2 FS3
a a1 b b1 b2 c O lbs
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
mm
(inch)
Frame
Size
MMX12AA1D7...
MMX12AA2D4...
MMX12AA2D8...
MMX32AA1D7...
MMX32AA2D4...
MMX32AA2D8...
MMX34AA1D3...
MMX34AA1D9...
MMX34AA2D4...
66
(2.6’’)
38
(1.5’’)
160
(6.30’’)
147
(5.79’’)
32
(1.26’’)
102
(4.02’’)
4.5
(0.18’’)
1.213 0.55 FS1
MMX11AA1D7...
MMX11AA2D4...
MMX11AA2D8...
MMX11AA3D7...
MMX12AA3D7...
MMX12AA4D8...
MMX12AA7D0...
MMX32AA3D7...
MMX32AA4D8...
MMX32AA7D0...
MMX34AA3D3...
MMX34AA4D3...
MMX34AA5D6...
90
(3.54’’)
62.5
(2.46’’)
195
(7.68’’)
182
(7.17’’)
32
(1.26’’)
105
(4.13’’)
5.5
(0.22’’)
1.543 0.7 FS2
MMX11AA4D8...
MMX12AA9D6...
MMX32AA9D6…
MMX34AA7D6...
MMX34AA9D0...
MMX34AA012...
MMX34AA014...
100
(3.94’’)
75
(2.95’’)
253
(9.96’’)
242
(9.53’’)
34
(1.34’’)
112
(4.41’’)
5.5
(0.22’’)
2.183 0.99 FS3
b1
b
a1
a
o
b1
b
a1
a
o
b1 b
a1
a
o
b2
c
7
0.275”
h
1 inch = 25.4 mm
1 mm = 0.0394 inch
1 inch = 1’’
