Motor-protective system ZEV
6
11/01 AWB2300-1433GB
System overview

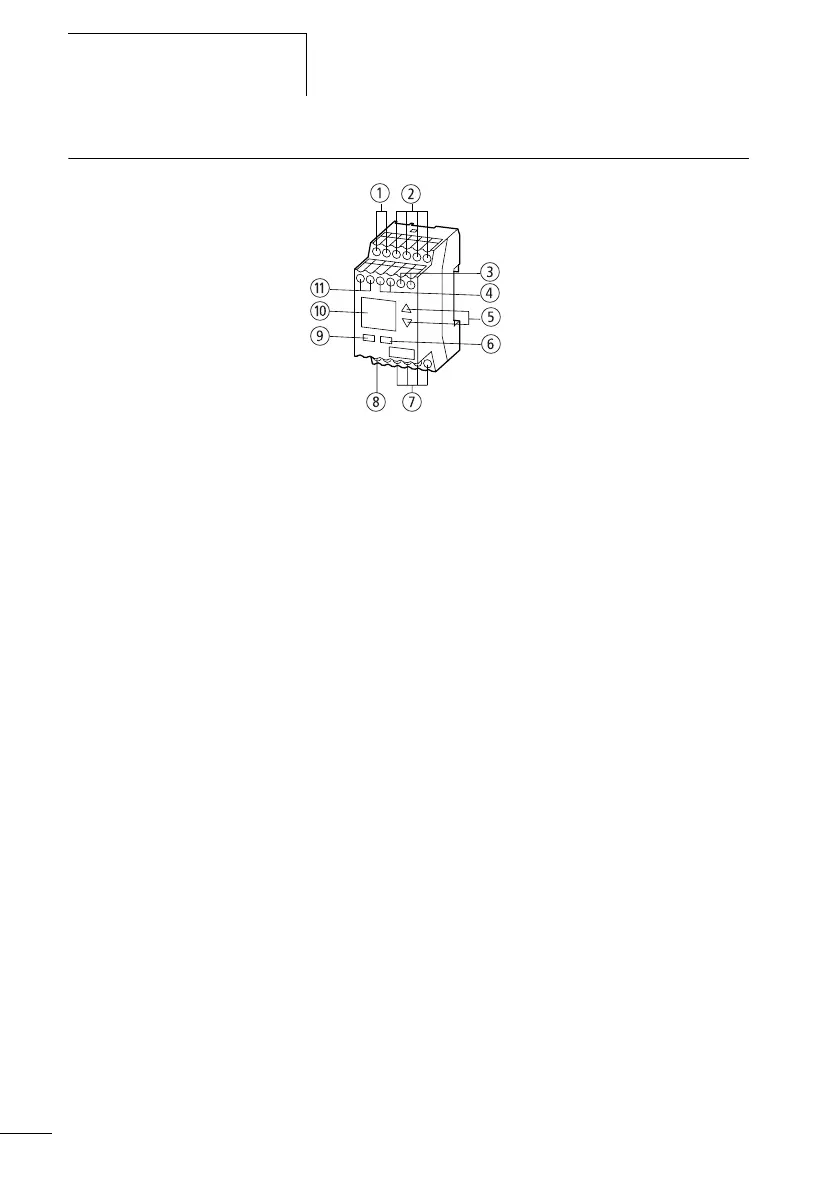

Figure 1 : Basic electronic motor-protective relay unit ZEV
a Power supply
b Freely configurable auxiliary switches
c Terminals for connecting an external core-balance transformer
d Terminals for connecting a thermistor
e Up/Down adjusting buttons
f Mode selector button
g 1 NO + 1 NC contact for overload and thermistor tripping
h Grounding terminal
i Reset/Test button
j Display
k Terminal for connecting a remote or automatic reset contact
a
b
c
d
e
f
g
h
i
j
k

Eaton Moeller ZEV-XSW-145 Specifications

General

Rated operational voltage	24 VDC
Protection type	IP20
Connection to SmartWire-DT	yes
Mechanical life	10, 000, 000 operations
Electrical life	100, 000 operations
Operating temperature range	-25 - +55 °C
Weight	0.1 kg
