Ethernet network
PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com

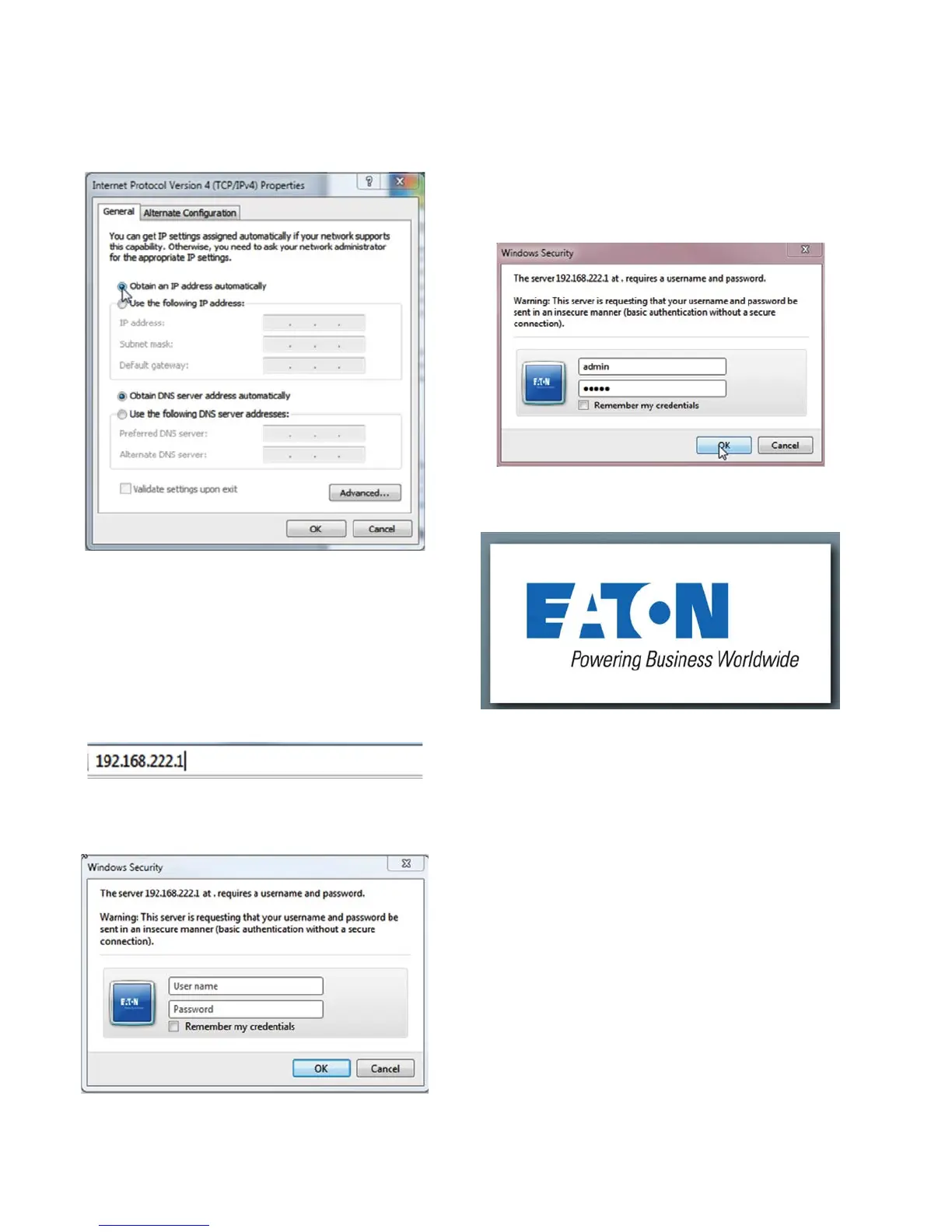

Step 7. Select “Obtain IP Address Automatically”
Step 8. Click “OK”. Close the network adapter.
Step 9. Each controller Maintenance Port is preconfigured
with the fixed IP address set at 192.168.222.1. Once the
Ethernet patch cable is connected between the personal
computer and the PRC controller front Maintenance Port, the
user can login to the controller by opening a standard Web
browser and typing 192.168.222.1 into the browser’s address
bar (also know as the location bar or URL bar) and pressing
the “Enter” button.
The PRC splash screen should open. In a few moments,
the User Name and Password dialog will open.
Step 10. Type the user name and password in the
appropriate box and click “OK”.

Default user name: admin

Default password: admin
A splash screen will open.
After the splash screen, the Breaker status Web page
will open.
Refer to the “Web page programming” section on
page 46 for additional information on programming and
configuration of Network IP of the PRC1500E and the
PRC2000E controllers using the Web pages.
