53
Web page programming
PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com

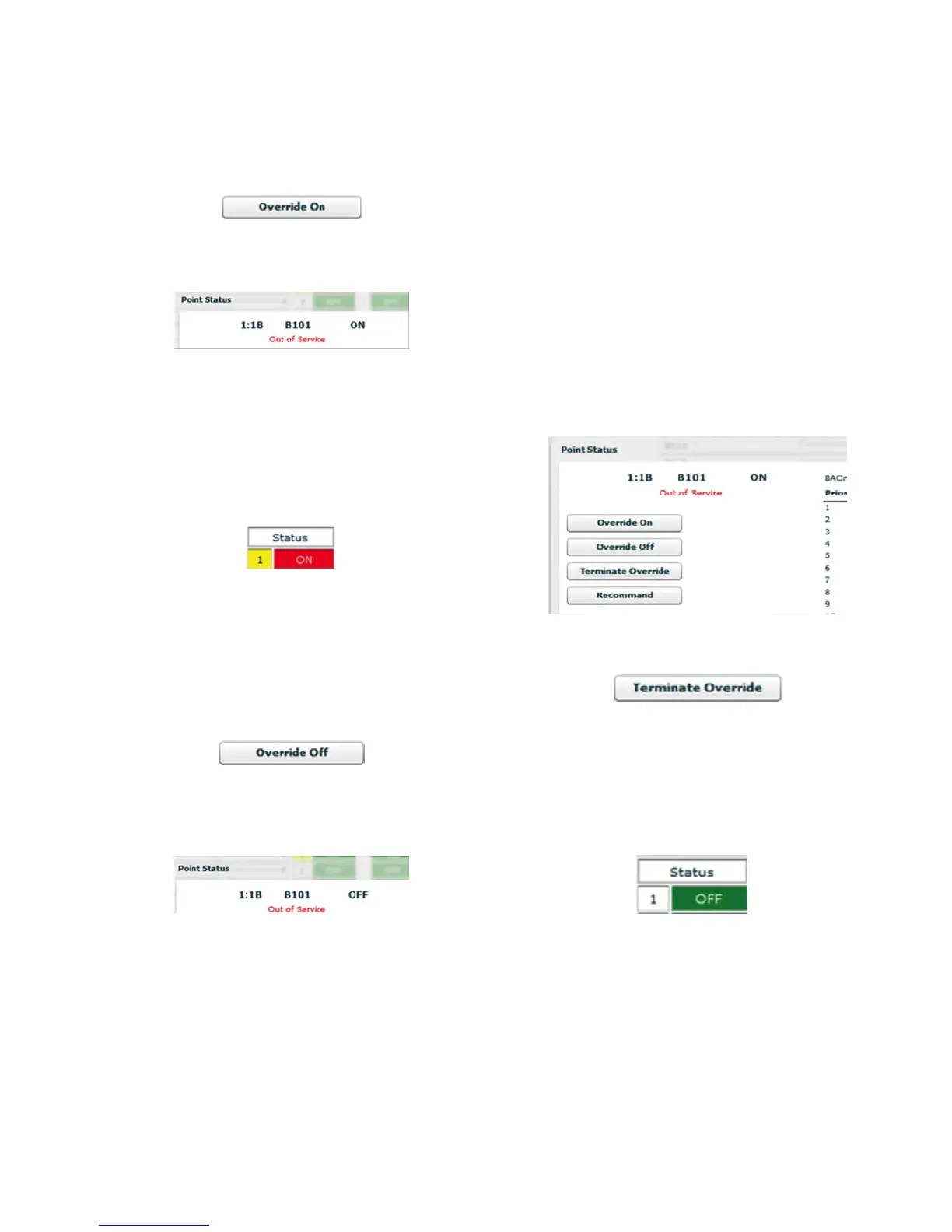

Override ON—circuit breaker
Click the “Override ON” button.
The selected controllable circuit breaker status should
display “ON” with a message in red stating “Out of Service”.
Click the “Close” button.
In the “Breakers” screen, the controllable circuit breaker
status button background should now be red with the “ON”
text denoting the last command was an “ON” command
and the feedback indicates that it is “ON”. The circuit
number should now have a yellow background. This yellow
background denotes an override is active for the selected
controllable circuit breaker.
Override OFF—circuit breaker
From the breakers” screen,
Double-click the ON/OFF status icon for the controllable
circuit breaker selected to override “OFF”.
This opens the “Point Status” screen.
Click the “Override Off” button.
The selected controllable circuit breaker status should
display “OFF” with a message in red stating “Out of
Service”.
Click the “Close” button.
In the “Breakers” screen, the controllable circuit breaker
status button background should now be green with the
“OFF” text denoting the last command was an “OFF”
command and the feedback status is “OFF”. The circuit
number should now have a yellow background. The yellow
background denotes an override is active for the selected
controllable circuit breaker.
ote:N The yellow “Override” LED on the PRC-E controller
will be illuminated indicating an override is active.
Clear circuit breaker override
From the Breakers” screen, double-click the ON/OFF Status
icon for the controllable circuit breaker selected to terminate
the override.
This opens the “Point Status” screen.
Click the “Terminate Override” button.
This clears the override. The red “Out of Service message
should no longer be shown.
Click the “Close” button.
In the “Breakers” screen, the circuit number should now
have a white background denoting no override active on the
circuit breaker.
