Web page programming
PRC-E Series Instruction Manual MN014003EN August 2015 www.eaton.com
Breaker screen group buttons
Across the top of the “Breakers” Web page there are
buttons for group status and manual control.
Groups are logical associations of controllable circuit
breakers that provide a single point of control. There are 16
default groups, designated by the letters A through P, that
can be easily programmed to create zones of controllable
circuit breakers. By default all circuit breakers are initially
associated with Group P.
See the “Groups” section of this document for more
information on configuring the groups.
Manual control of groups

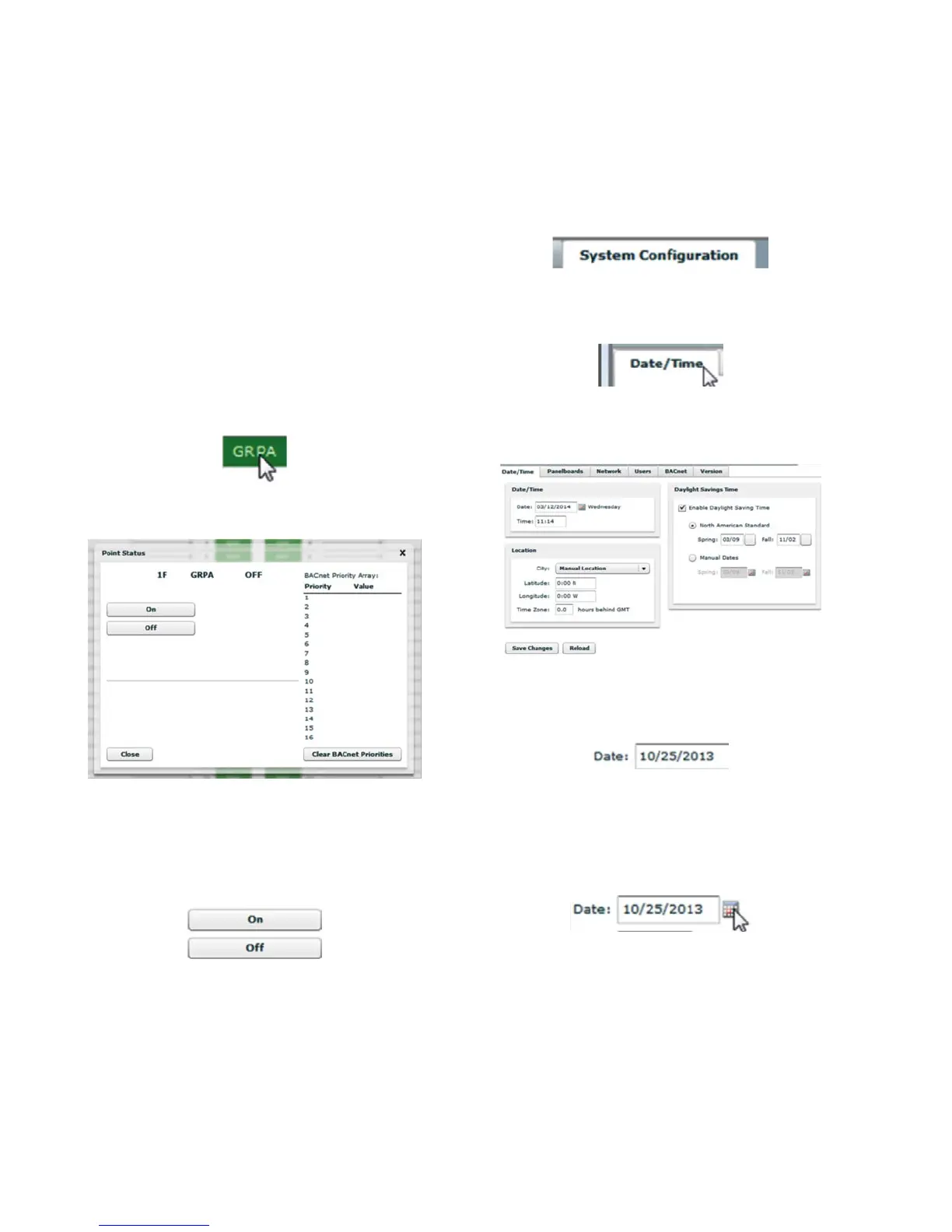

To manually control a group, double-click the group
name button.
This will open the “Point Status” screen for the group.
The “Point Status” screen displays the point address, point
name and status at the top.
To manually control the chosen group, click the “ON” or
“OFF” button to turn on the group or turn off the group
respectively.
All controllable circuit breakers associated with the group
will follow the control of the group.
Date, time, and location
The date, time, and location can be set through the
Date/Time Icon under the “System Configuration” screen.
Click the “System Configuration” tab.
The “Date/Time” screen tab is displayed by default. If not,
click the “Date/Time” tab.
This will open the “Date/Time”, Location, and Daylight
Savings Time screen.
Setting the date
Click the date text box.
This opens it for edit. Type in the date in the “mm/dd/yyyy”
format.
OR
Click the calendar tool button.
