Select the appropriate time zone from the dropdown list to the
right of Timezone. GMT-05:00 represents Eastern Standard Time,
GMT-06:00 represents Central Time, etc. Date format, with four
different date formats to choose from, and the time format.

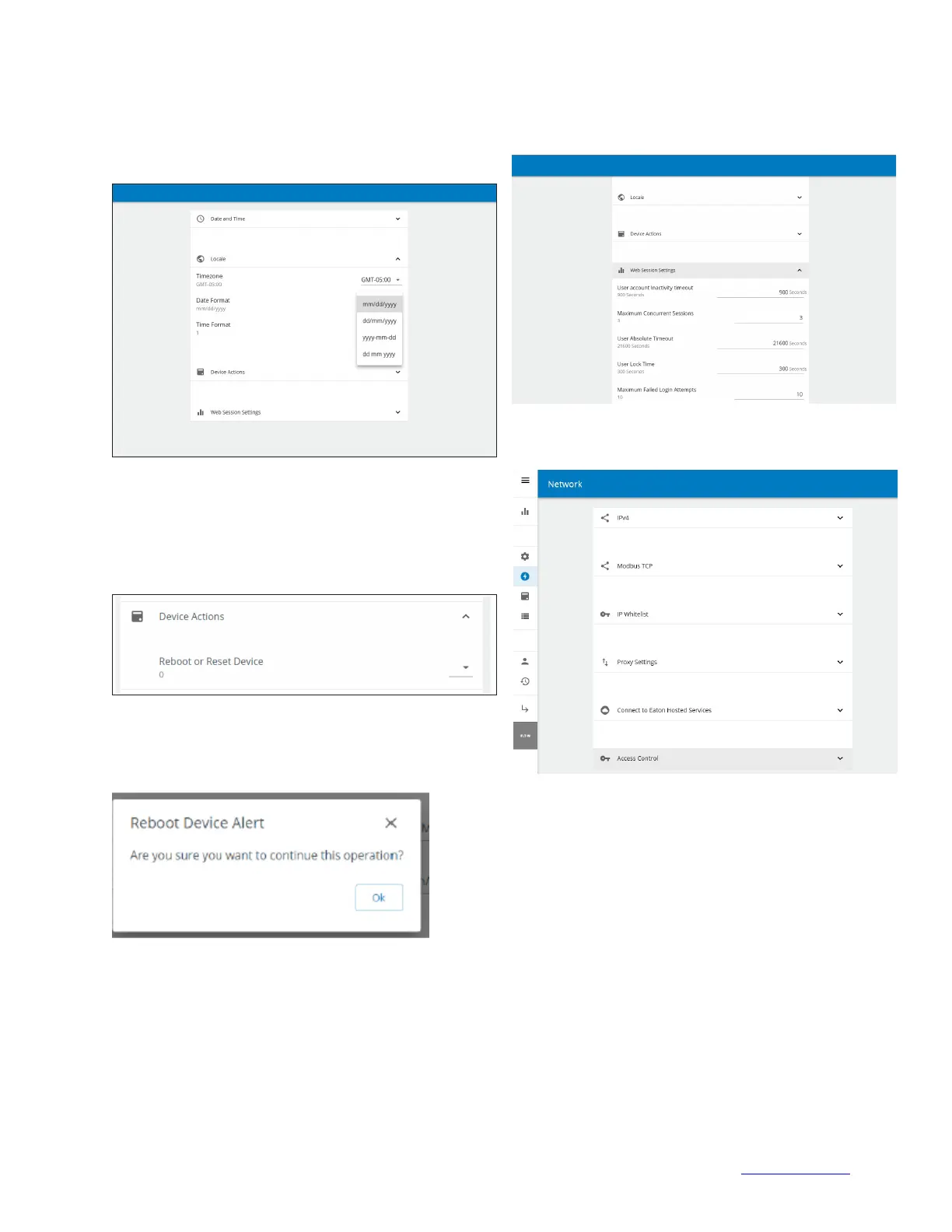

Figure 47. Select time format
Device Actions has two options for the user. Reboot or Reset
Device. Reboot is a soft reset, the micro controller will power
down and power up. Reset is a hard reset which will reset the
device to factory defaults. Either action can only be conducted
by an Admin user.
Figure 48. Device actions
The user will be prompted before either of these actions. Click
the ‘X’ in the top right of the window to cancel this action.
Figure 49. Reboot device alert
The Admin user can modify timeouts, number of concurrent
sessions and the number of failed login attempts.
Figure 50. Modifying timeouts
In the network window the following options are listed.
Figure 51. Network tab options
The user can select the IP allocation method between three
options and the IP address is also displayed here. The IP alloca-
tion method change does not take effect until the unit has been
rebooted. The reboot command is available under General tab,
Device Actions. (Do not select the Factory Reset command or
the device will return to the factory default values with a static
IP address.)
IP Allocation Methods available.
•
Statically Hardcoded (192.168.1.254) Factory default
•
DHCP Allocated (Network assigned)
•
Taken from NV stored IP address
ote: N The User must reboot the device after performing any of these
changes.
