SVB-SW-P3
DANGER
Only SVB-SW-P3: Lockable in ON position.
Locking the red-yellow switch in ON position is forbidden!
GEFAHR
Nur SVB-SW-P3: In ON-Position abschließbar.
Abschließen in ON-Position bei rot-gelbem Schalter verboten!
DANGER
SVB-SW-P3 uniquement: cadenassable en position ON (fermé).
Cadenassage en position ON (fermé) interdit avec un appareil rouge-jaune !
PELIGRO
Sólo SVB-SW-P3: Bloqueable en positión ON.
Bloquear un mando rojo/amarillo en positión ON está prohibido!
PERICOLO
Solo per SVB-SW-P3: lucchettabile nella posizione ON.
È vietato lucchettare nella posizione ON l’interruttore con maniglia rosso-giallo!
危危险险
只适用 SVB-SW-P3： 在打开位置可锁住。
ОПАСНОСТЬ
Только SVB-SW-P3: Запираемый в позиции «ON»
При красно-желтом выключателе запрещается запирать в позиции «ON»!

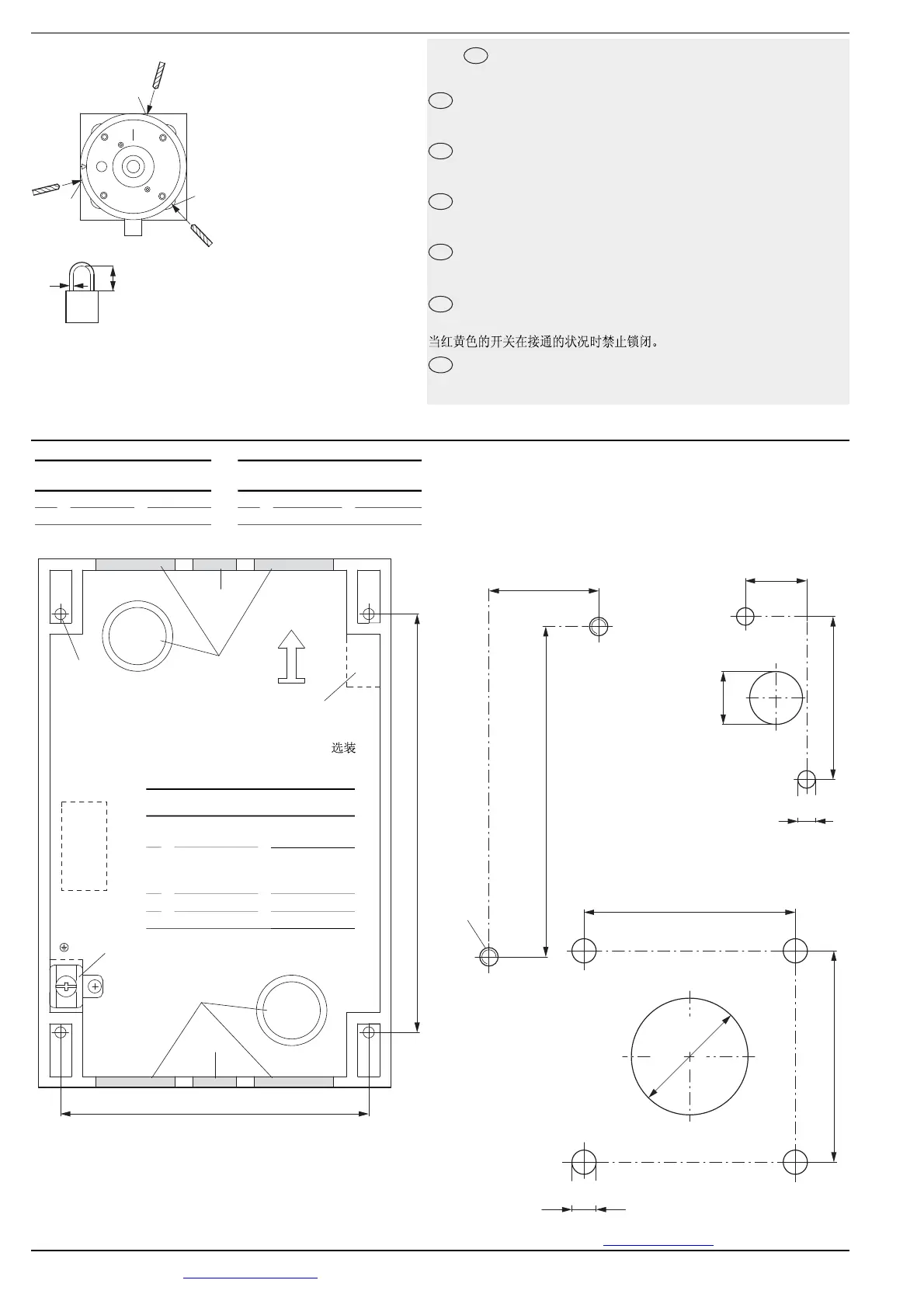

￫ NOT 1 : 1
d = 4 - 8 mm
(d = 0.16” - 0.31”)
b + d ≦ 47 mm
(b + d ≦ 1.85”)
≦ 3x
D
D
D
OFF
ON
D = 8.5 mm
(D = 0.33”)
d
b
en
de
fr
es
it
zh
ru
[mm]
T5B…/I4 T5…/I5
x142 182
y193 233
[in]
T5B…/I4 T5…/I5
x5.59 7.17
y7.59 9.17
PE
a
b
a
b
c
d
x
y
4 x M5
K-CI-K4
included – enthalten – compris – incluido –
compreso – 包括 – содержится
optional – optional
en option – opcional
opzionale –
по выбору
V-M25/KT-M25
V-M32/KT-M32
T5B.../I4 T5B.../I5
aV-M20
b
KT-M20
V-M20
KT-M20
V-M25/KT-M25
V-M40
V-M50
cK-CI-K5
K-CI-K4d–
–
Fig. 2
25 mm (0.98”)
75 mm (2.95”)
2 x M4
4.1 - 4.5 mm
(0.16 - 0.18”)
Fig. 1
37 mm (1.46”)
14 mm
(0.55”)
12 - 13 mm
(0.47 - 0.51”)
5 - 5.5 mm
(0.2 - 0.22”)
48 mm (1.89”)
26.5 - 29.5 mm
(1.04 - 1.16”)
48 mm (1.89”)
Fig. 3
