Eaton Vikers V2P Series User Manual

13

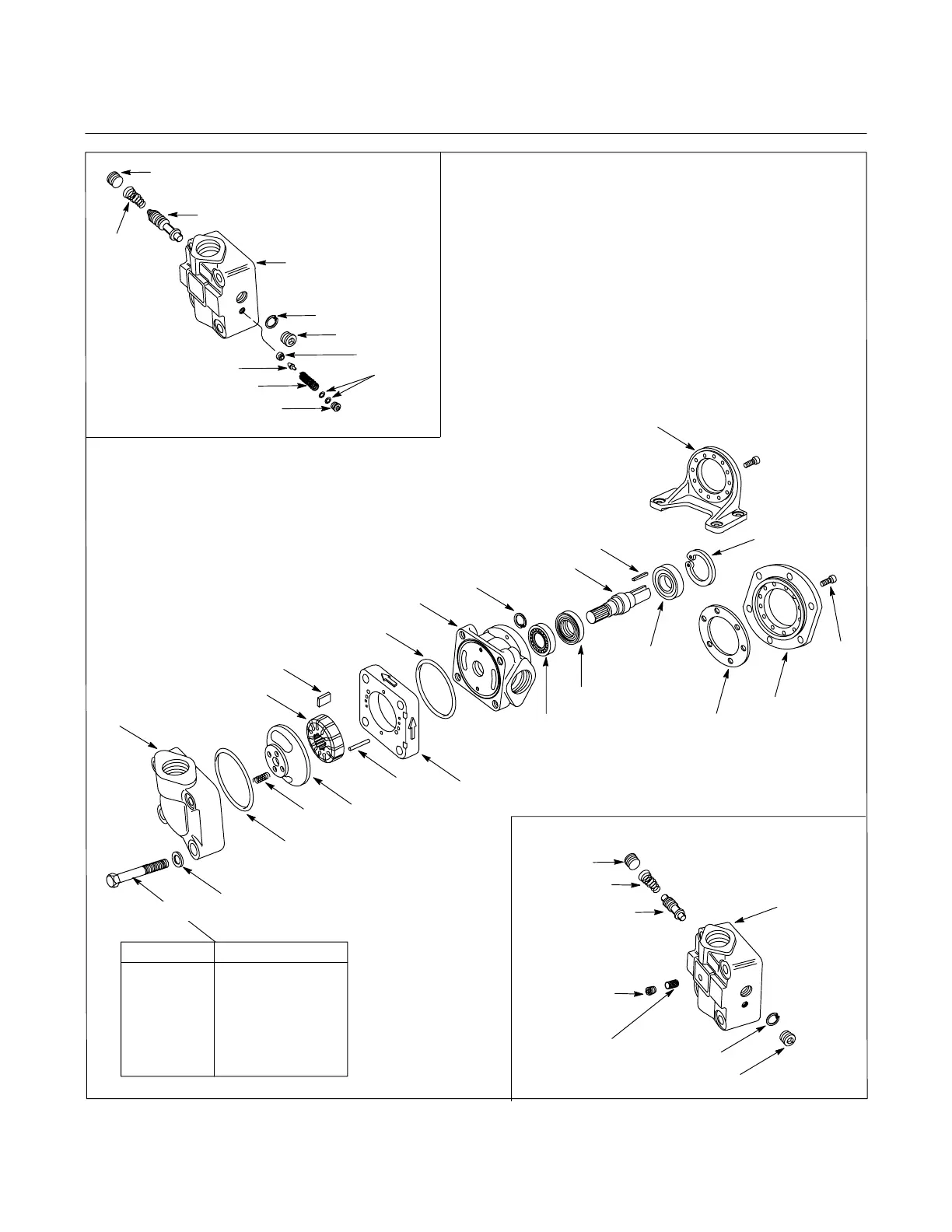

Figure 7.
Plug
Priority Valve
Cover
Snap Ring
Plug
Seat
Shims
Spring
Poppet
Spring
Plug
Foot Bracket
Key
Shaft
Snap Ring*
Body
O-ring
Vane
Rotor
Cover
Screw
Flange
Gasket
Bearing
Seal
Bearing
RingPin
Pressure Plate
Spring
O-ring
Lockwasher
(not used on all models)
Model Tighten To
V100 25  3 ft. lbs.
V2, V200 70  5 ft. lbs.
V300 100  10 ft. lbs.
V400 150  10 ft. lbs.
V500 250  10 ft. lbs.
Plug
Spring
Relief Valve
Sub-Assembly
Plug
Screen
Snap Ring
Plug
Cover
Screw
Snap Ring
Flow Control Valve
V2P
