Eaton W-SLC-7.2 - Dimensions and Diagrams; Dimensions

Technical Data TD534-0501002UInstructions for the Installation,
Operation and Maintenance
of W-SLC-7.2
Effective January 2013
Figure 2
Dimensions

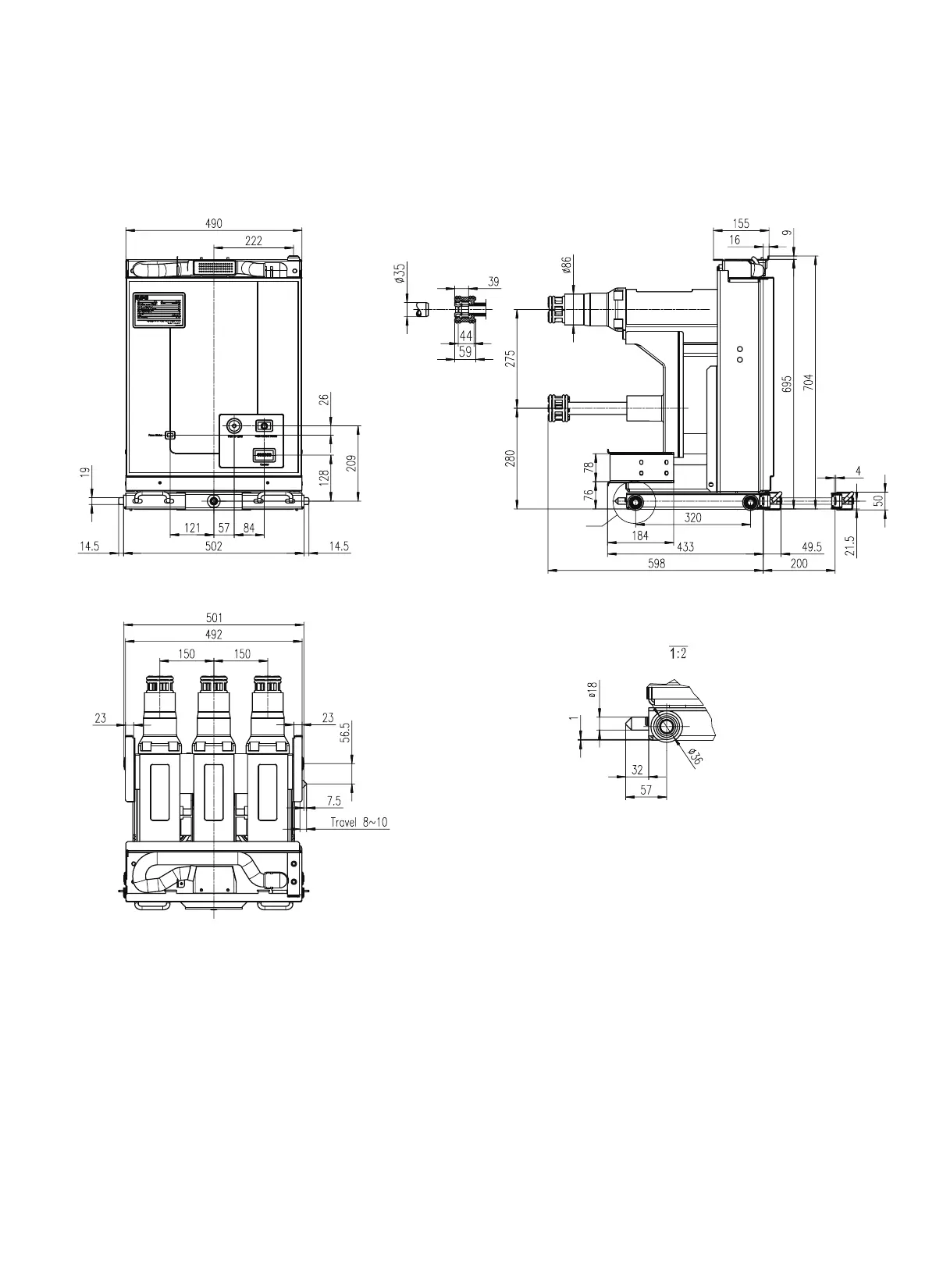

Please refer to Figure 2 for W-SLC dimensions.
Note: dimension unit (mm)
