IB131009EN
Instruction Book
Pa
g
e17

15
1
13
2
12
3
4
14
5
11
10
16
9
6
7
➀ L.H. Closing Spring
➁ Anti-pump Relay
➂ Auxiliary Switch
➃ Motor Cutoff Switch
➄ Closing Cam
➅ Spring Release (Close Coil) Assembly
➆ Shunt Trip Assembly
➇ Position Switch
8
➈ Charging Motor
➉ Charging Pawl
11
Ratchet Wheel
12
R.H. Closing Spring
13
Opening Spring
14
Manual Charge Socket
15
Secondary Disconnect
16
Operation Counter

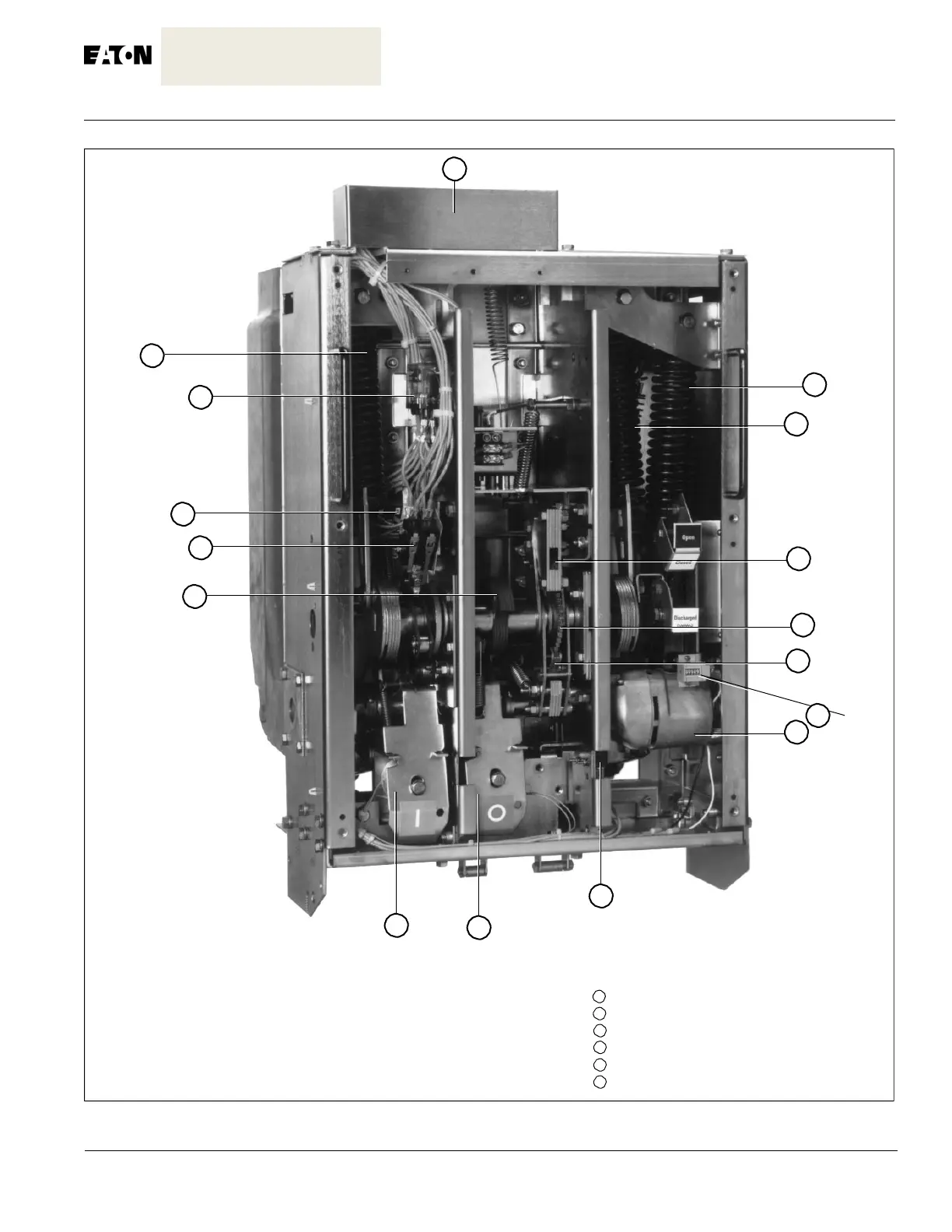

Figure 3-3 Front external view of W-VAC breaker element
